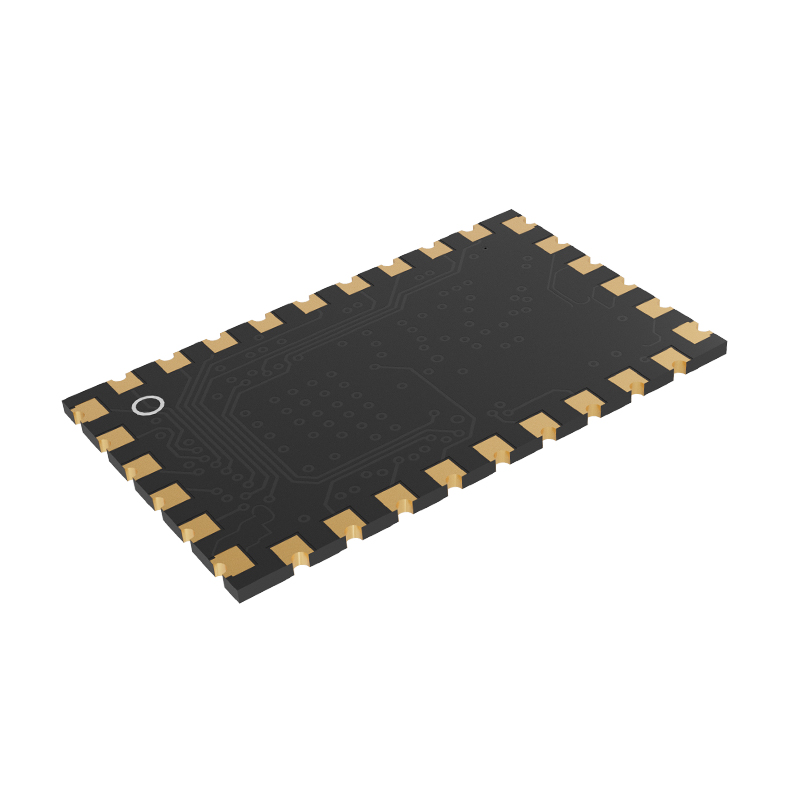

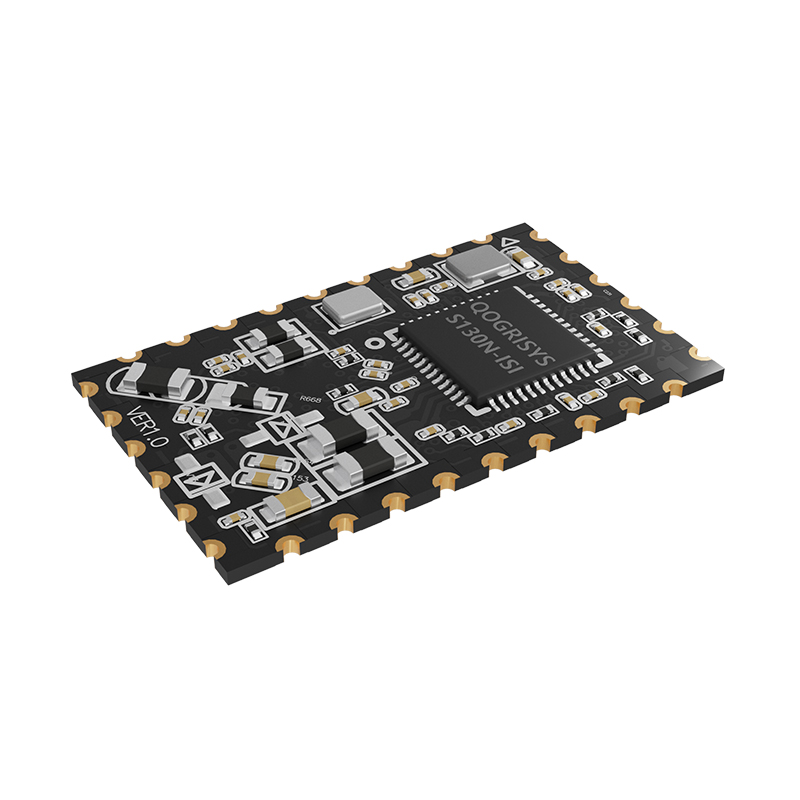

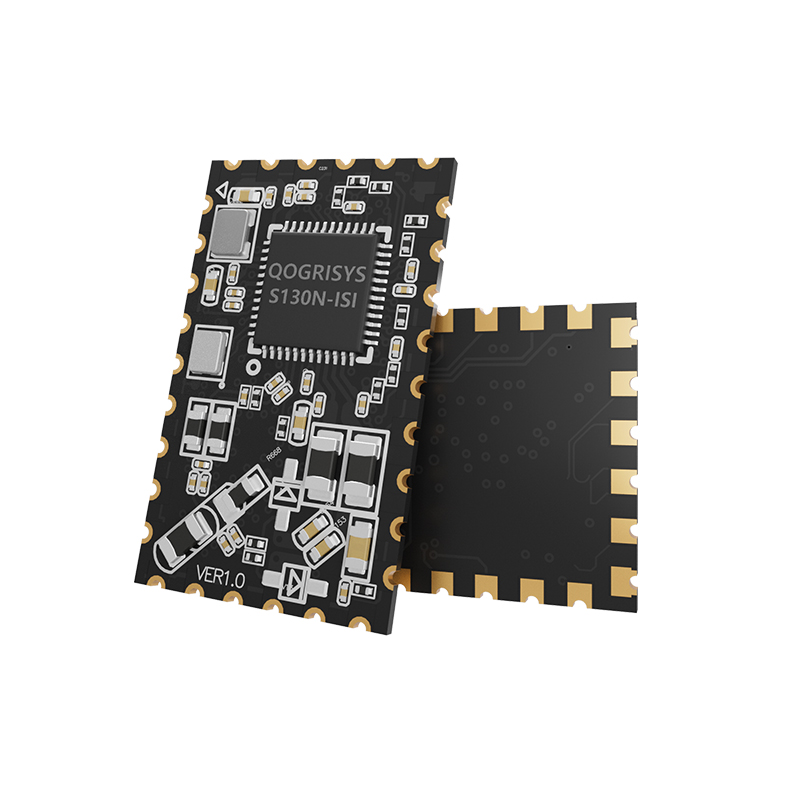

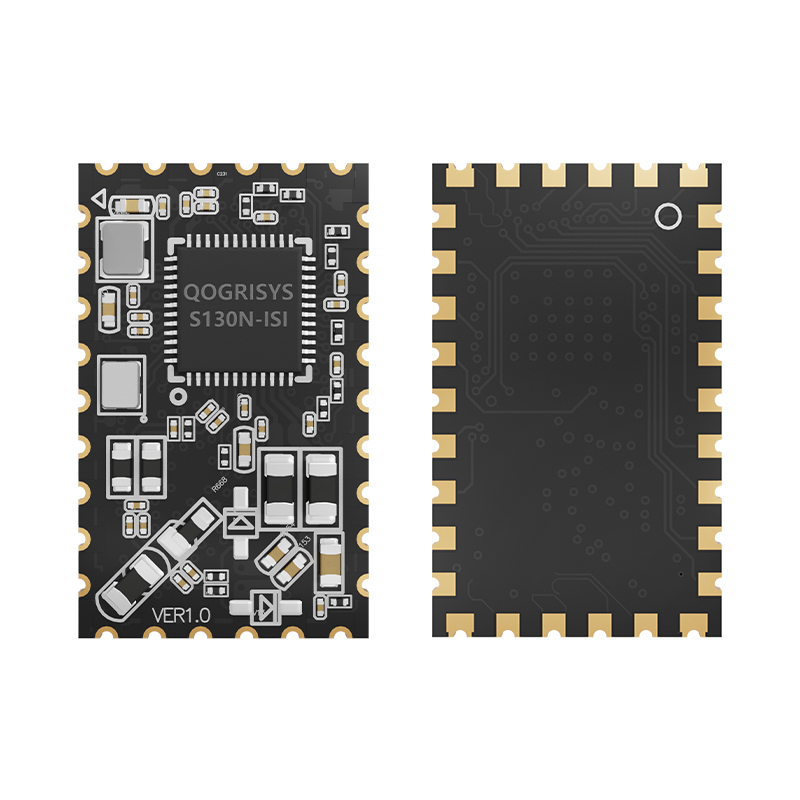

QOGRISYS S130N-ISI IoT Module Uart/PWM Interface Power Line Communication PLC Wifi Module

Protocol：IEEE P1901.1
Size：20.6*12.6mm
Interface：UART, PWM, EPWM, GPIO, ADC, SPI, I2C

Download

The S130N-ISI module is a fully integrated power monitoring (PLC) communication module based on the Unicomsemi VC6330 chipset design.

The S130N-ISI module integrates a 32-bit ARM Cortex M3 MCU and 32-bit DSP, embedded Flash, 1MB SRAM and rich communication interfaces.

The S130N-ISI module adopts stamp hole packaging, has ultra-small size and compact structure;and has on-chip integrated lines, low power consumption and strong noise resistance.

Application Scenario

Support SGCC 0 ~ 12 MHz bandwidth with multiple optional frequency bands

Support China SGCC Q/GDW 11612 communication protocol

Support IEEE 1901.1 communication protocol

Support BPSK、QPSK、16QAM modulation

Application Scenario
