3121N-ISF
QOGRISYS IoT Module Uart Interface Power Line Communication Cortex-M3 processor PLC Wifi Modules
Protocol：IEEE P1901.1
Size：13*22.3mm
Rate:0.507Mbps
Frequency Band：0.5-3.7MHz and 2.5-5.7MHz（software configurable）
Interface：I2C, UART, PWM, GPIO, SPI，ADC
The 3121N-ISF module is a highly integrated, small size and low consumption Power Line Communication (PLC) module for IoT applications

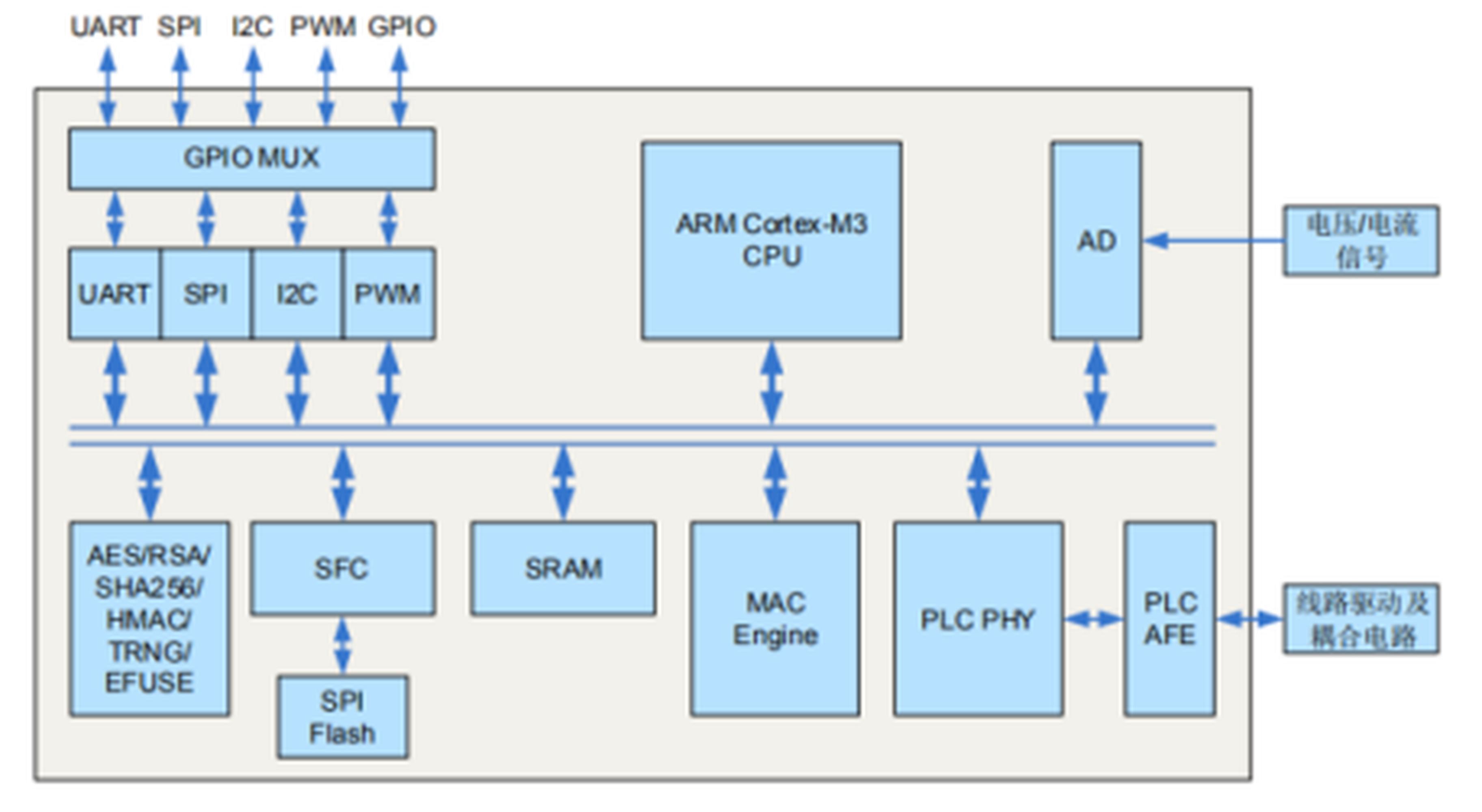

The 3121N-ISF module is integrated with multi-mode power line communication modem, a
built-in line driver and an ARM Cortex-M3 MCU
The 3121N-ISF module is compliant with IEEE P1901.1 standard and supports OFDM/FSK modulation
The 3121N-ISF module supports UART, PWM, GPIO, SPI and ADC interfaces, delivers a set of hardware and software solution for varies PLC-IoT applications such as smart lighting, smart home, central air-conditioning system
Application Scenario
Built-in SRAM 256KB
Support IEEE 1901.1
High efficient Cortex-M3 processor, operating at up to 200MHz frequency
Support frequency band 0.5-3.7MHz and 2.5-5.7MHz, software configurable
