S222T-ISF
QOGRISYS S222T-ISF IoT Module Uart/PWA Interface Power Line Communication PLC Wifi Modules
Protocol：IEEE P1901.1

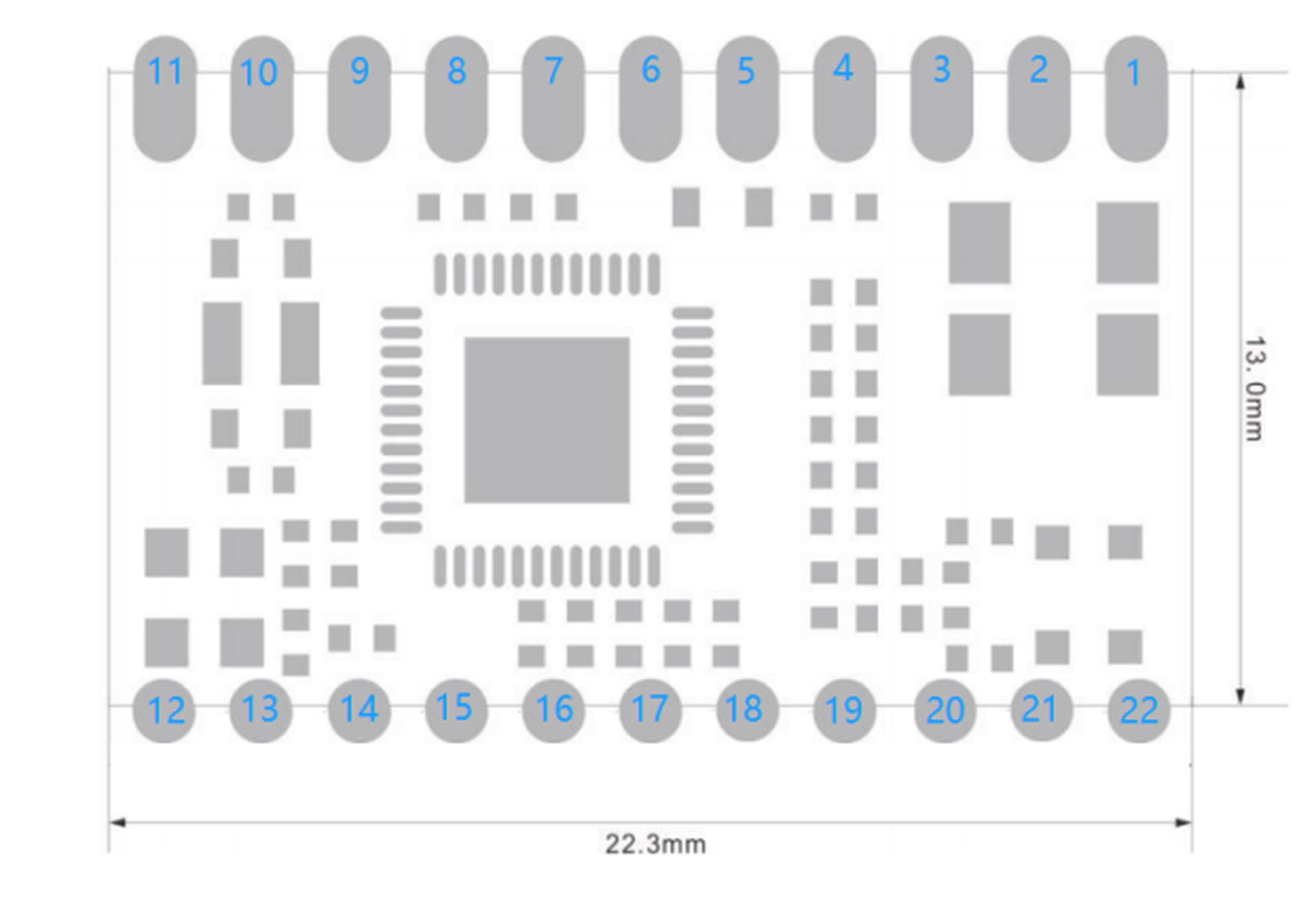

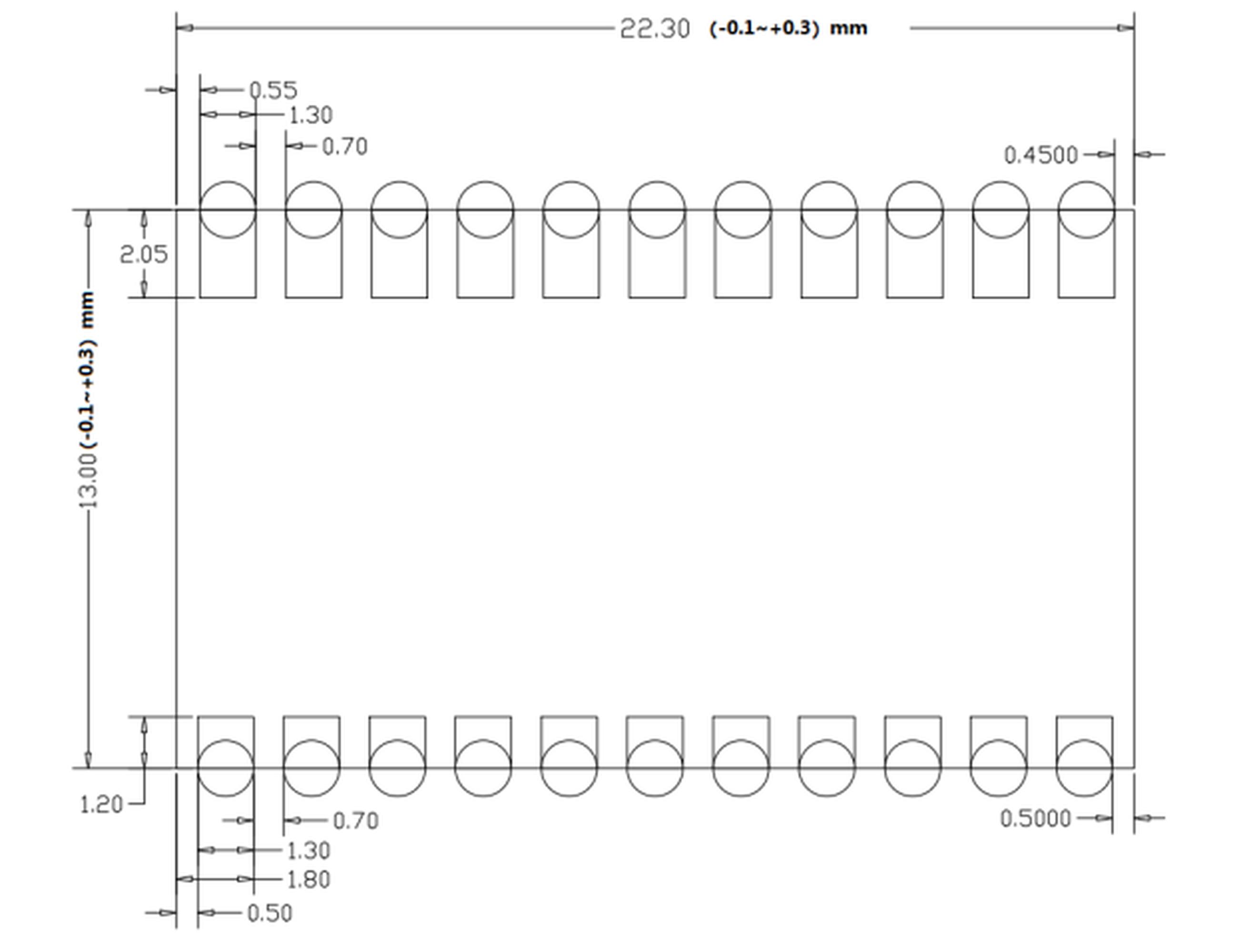

Size：13*22.3mm
Rate:/
Throughput：700 kHz ~ 12 MHz
Interface：UART, PWM, GPIO, ADC，SPI
The S222T-ISF module is a highly integrated, small size and low consumption Power Line Communication (PLC) module for IoT applications

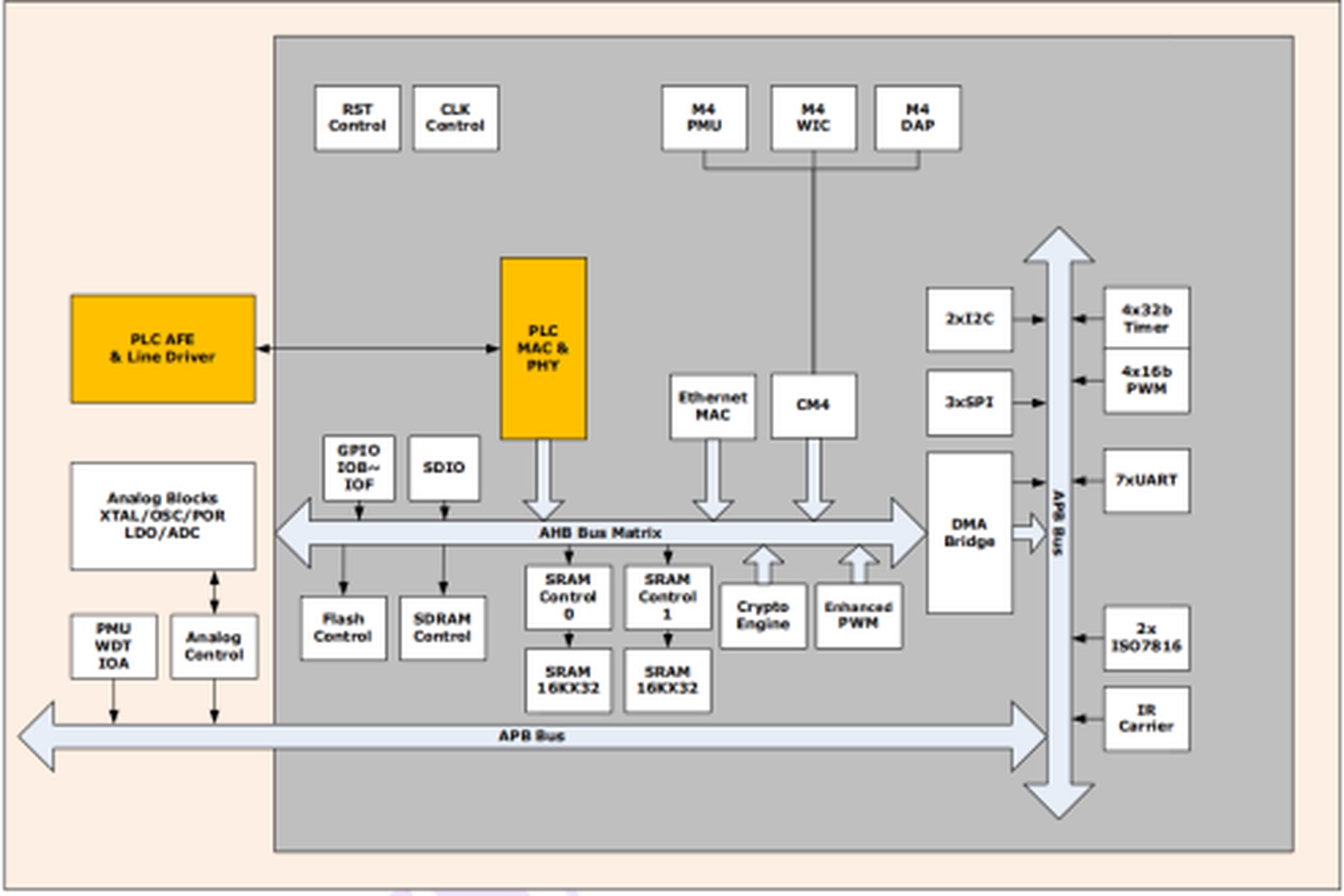

The S222T-ISF module is based on VC6322TF chip, which integrates 32-bit ARM Cortex M4 MCU and 32-bit DSP, embedded Flash or SDRAM memory, PLC PHY based on OFDM modulation, cost-effective analog front end (AFE) and rich peripheral interface
The S222T-ISF module provides rich peripheral interfaces such as UART, PWM, GPIO, ADC, etc., and integrates a built-in Line-Driver.
Application Scenario
Integrated 32-bit ARM Cortex M4 MCU
Support IEEE 1901.1
Integrated 2MB on-chip ROM
Integrated 2MB on-chip SDRAM
Application Scenario
Application Scenario
Application Scenario
Application Scenario
