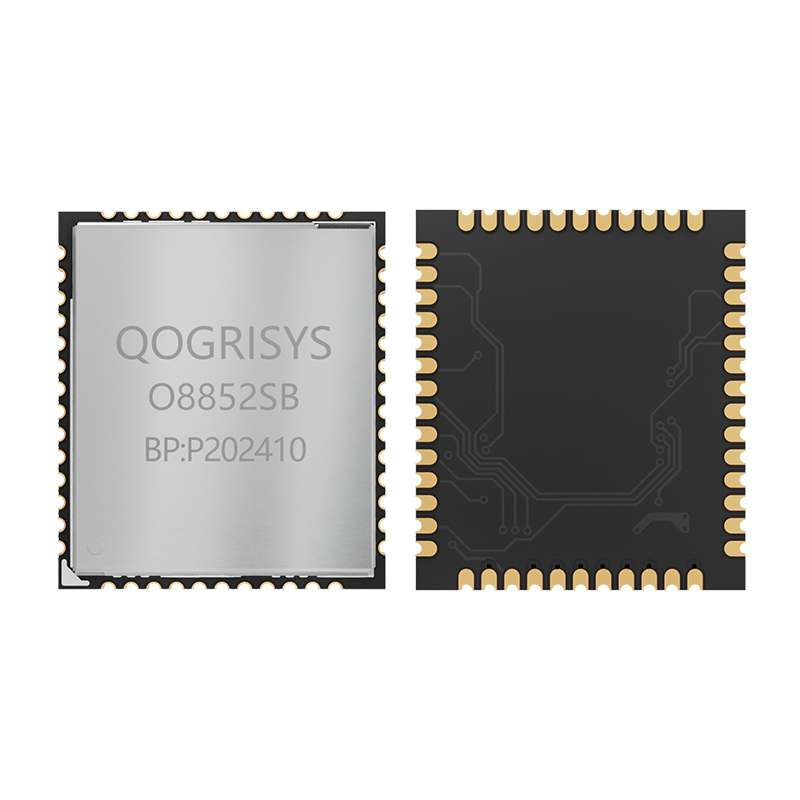

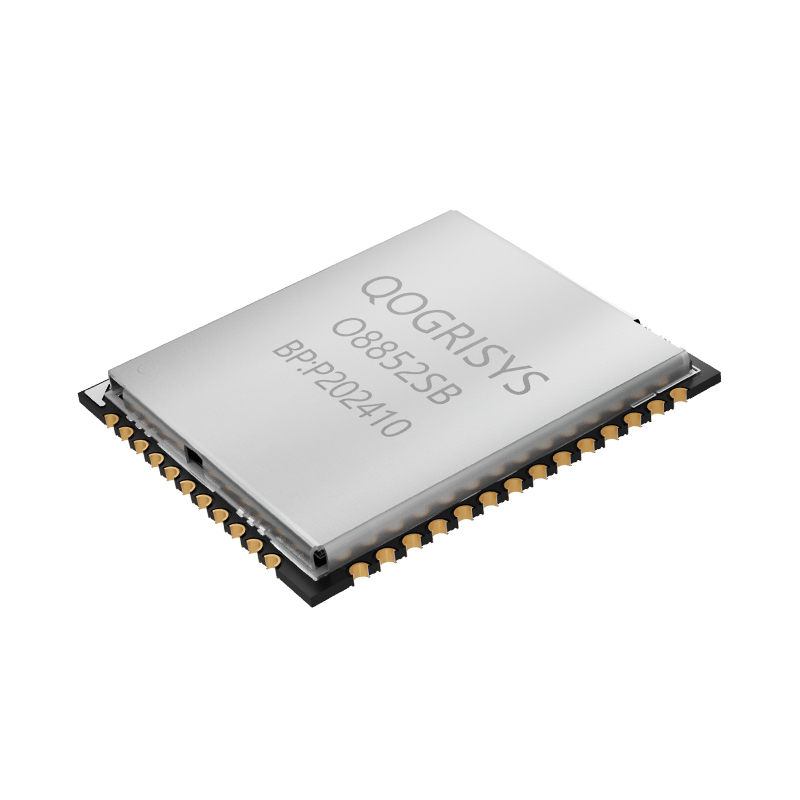

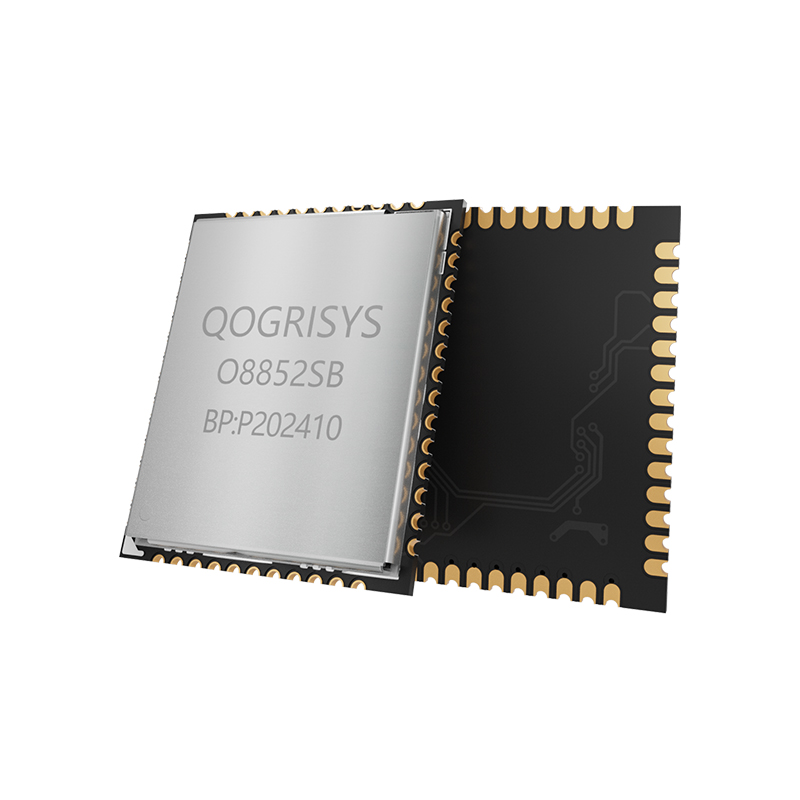

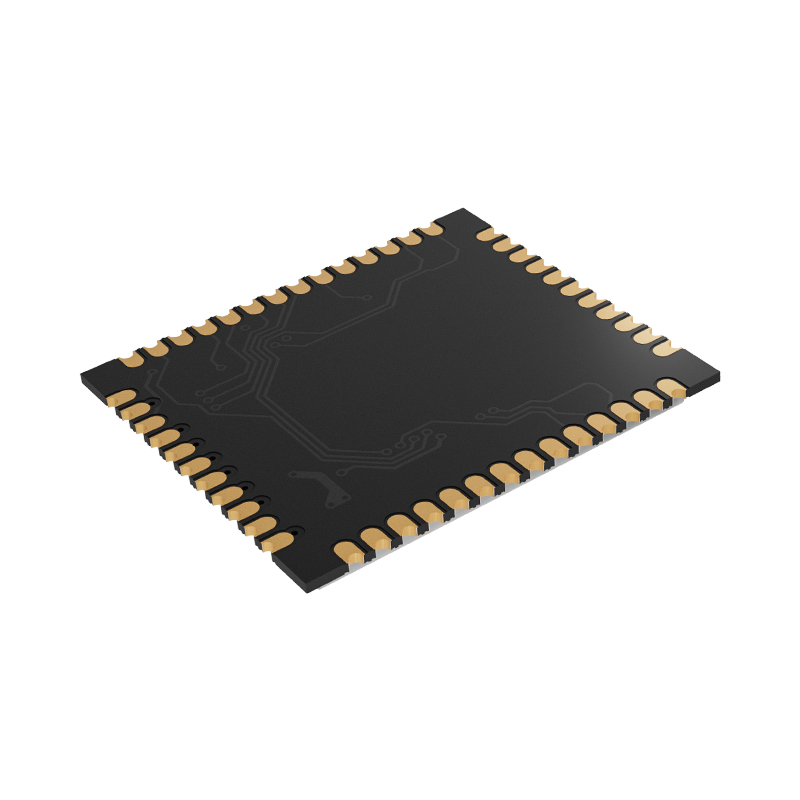

The O8852SB module is a highly integrated module that supports 802.11ax Wi-Fi and Bluetooth 5.4.

  The O8852SB module supports 2.4 GHz and 5GHz.

  The O8852SB module complies with IEEE 802.11 a/b/g/n/ac/ax standards, with a maximum speed of up to 1200Mbps.

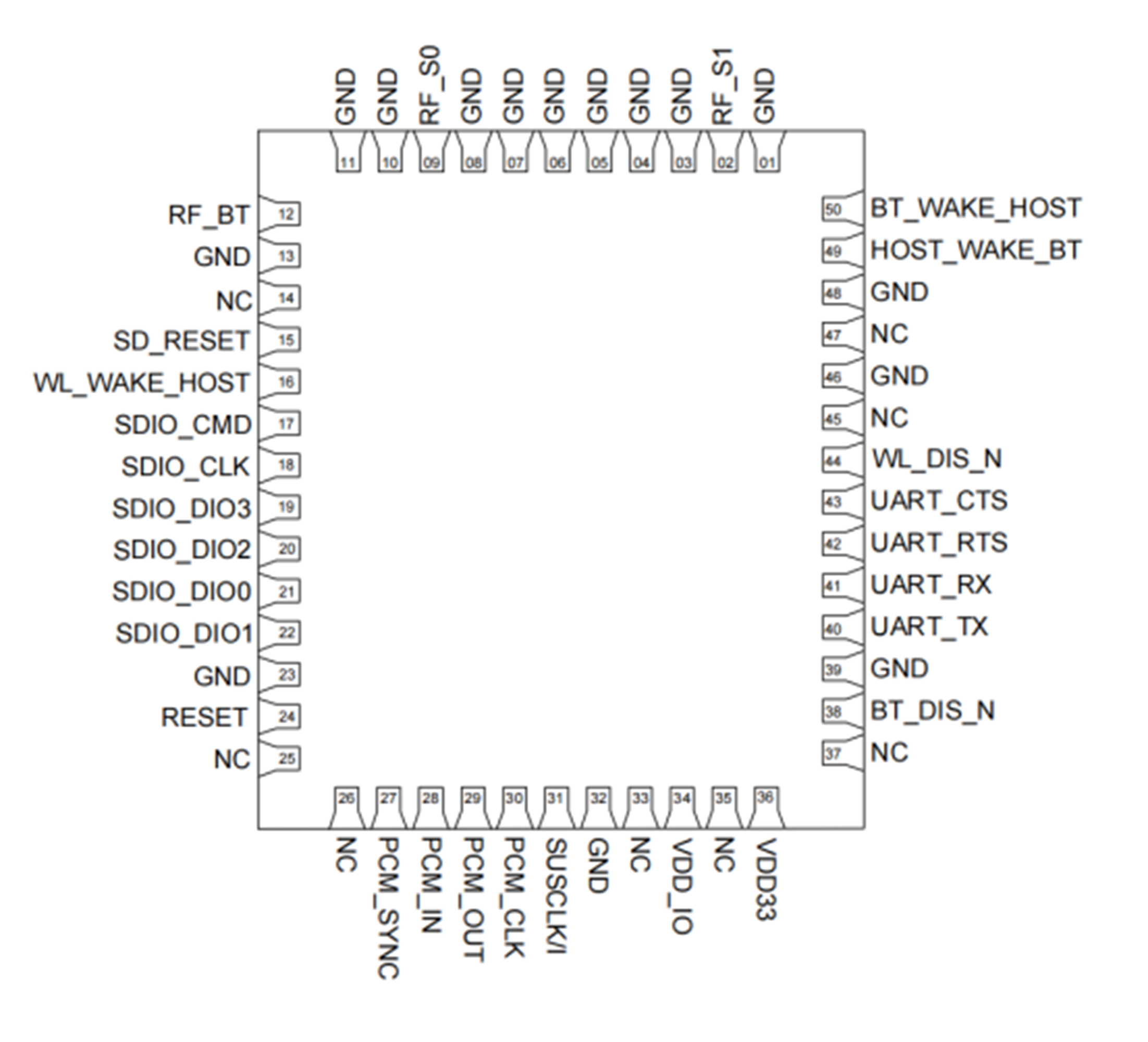

  The 08852S8 module integrates 5 high-performance RISC-vcpu, high-speed interface (SDI03.0) and rich peripheral interfaces (UART, SPI, I25, I2C and GPI0, etc.)

Application Scenario

  Support dual-band, up to 1200Mbps data rate (5G 80MHz 11ax + 2.4G 40MHz 11ax )
  Support dual-band 2.4 GHz/5 GHz
  2.4 GHz channel bandwidth is 20MHz/40MHz, 5 GHz channel bandwidth is 20MHz/40MHz/80MHz
  Support uplink MU-OFDMA TX and downlink MU-OFDMA RX
  Support uplink MU-MIMO TX and downlink MU-MIMO RX
  Support WFA, WPA/WPA2/WPA3, WEP, WAPI
  Support P2P GO/GC mode
  Support STA+AP, STA+ P2P GO and STA+ P2P GC
  Support BR/EDR/LE-1M/LE-2M/LE-500k/LE-125k modulation mode
