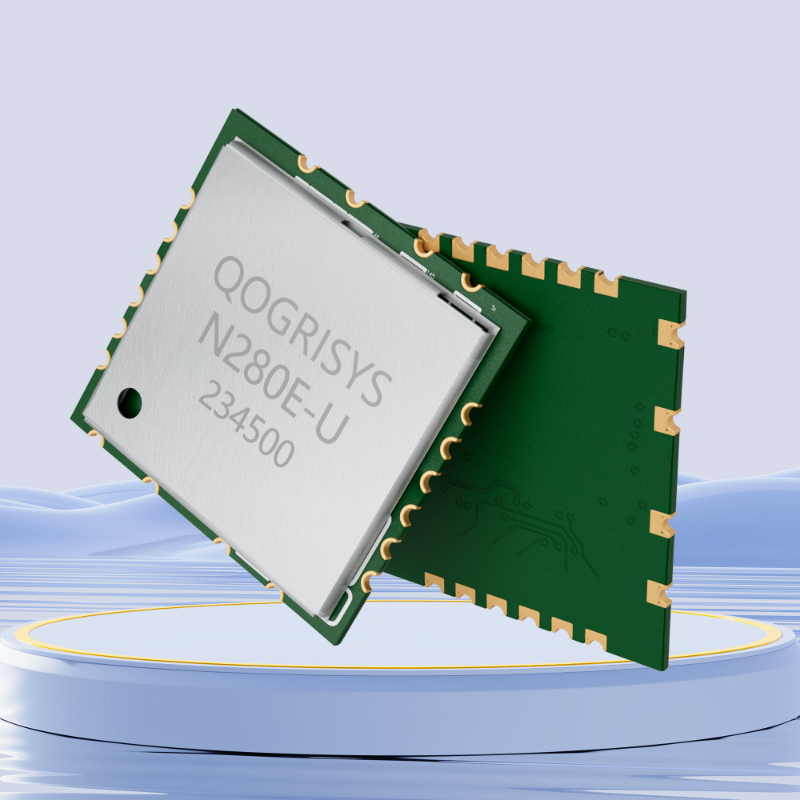

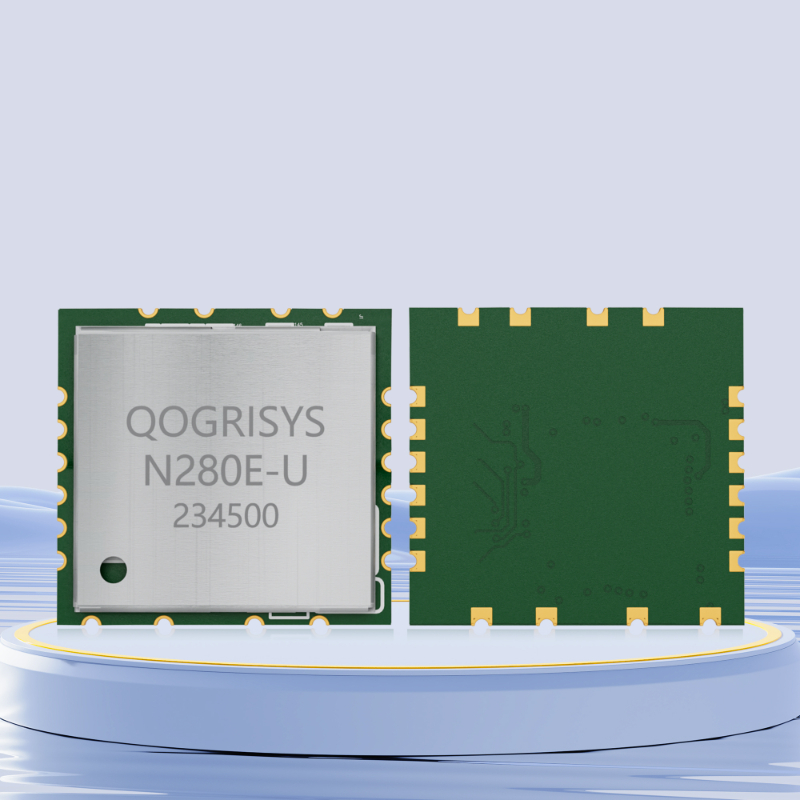

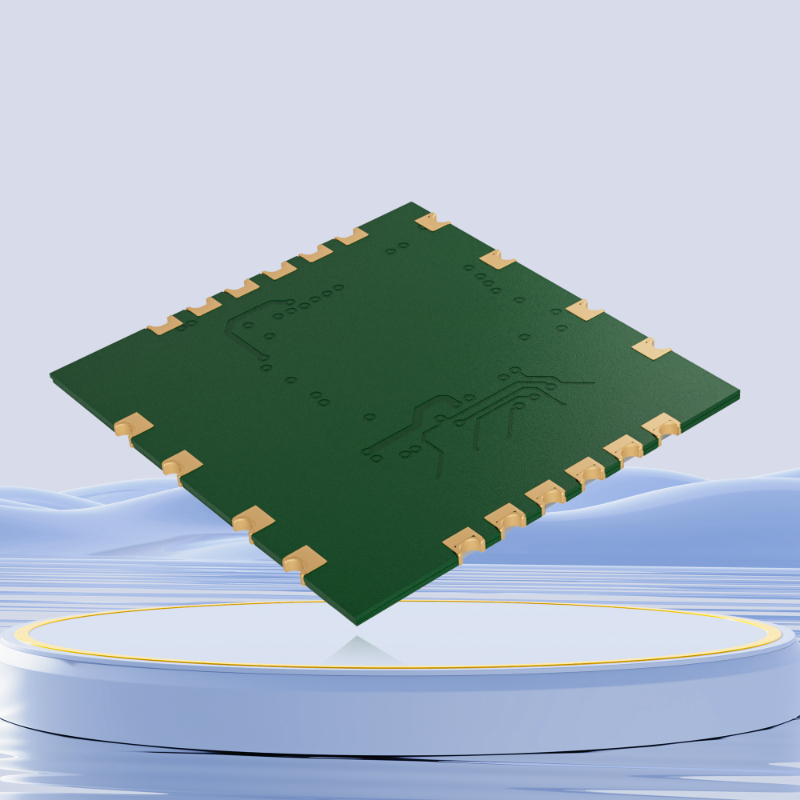

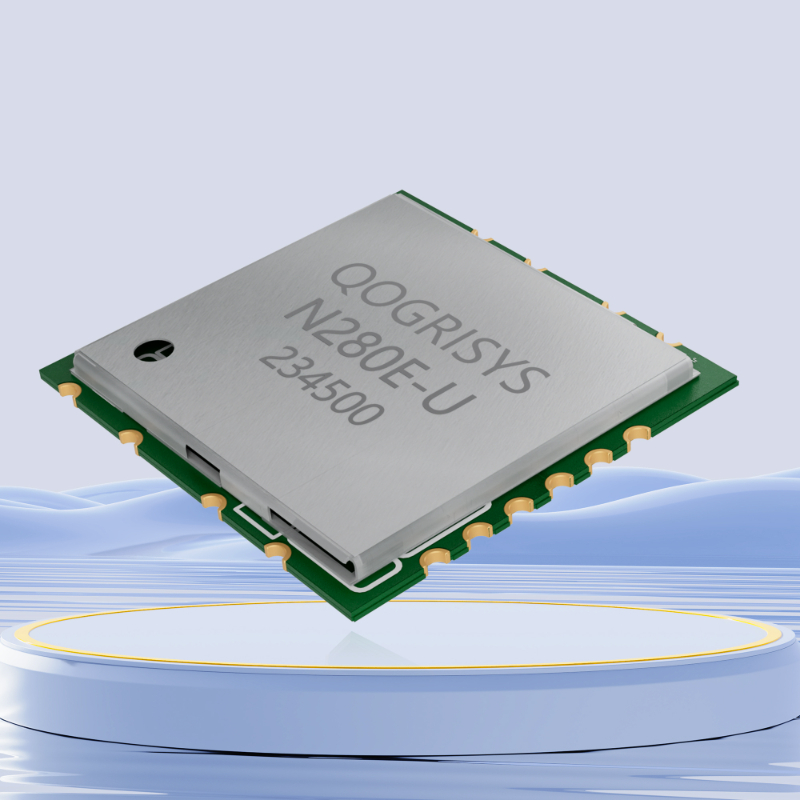

The N280E-U Module is a highly integrated chip with dual band Wi-Fi6, BLE5.4 for wireless application

  The N280E-U Module WLAN function supports the USB2.0 interface, and BT supports USB interface

  The N280E-U Module Support 2.4GHz/5GHz Wi-Fi6

  The N280E-U module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and network

Application Scenario

  Compliant with IEEE 802.11a/b/g/n/ac/ax

  support 2.4G+5G dual band, 20/40/80MHz bandwidth

  Wi-Fi Security WEP / WPA / WPA2/WPA3-SAE Personal, MFP

  Support STA, SoftAP, Wi-Fi Direct modes concurrently

  Support STBC, beamforming

  Support Wi-Fi 6 TWT

  Data rates up to 600.4Mbps with 20/40/80MHz bandwidth

Application Scenario

Application Scenario

Application Scenario

Application Scenario
