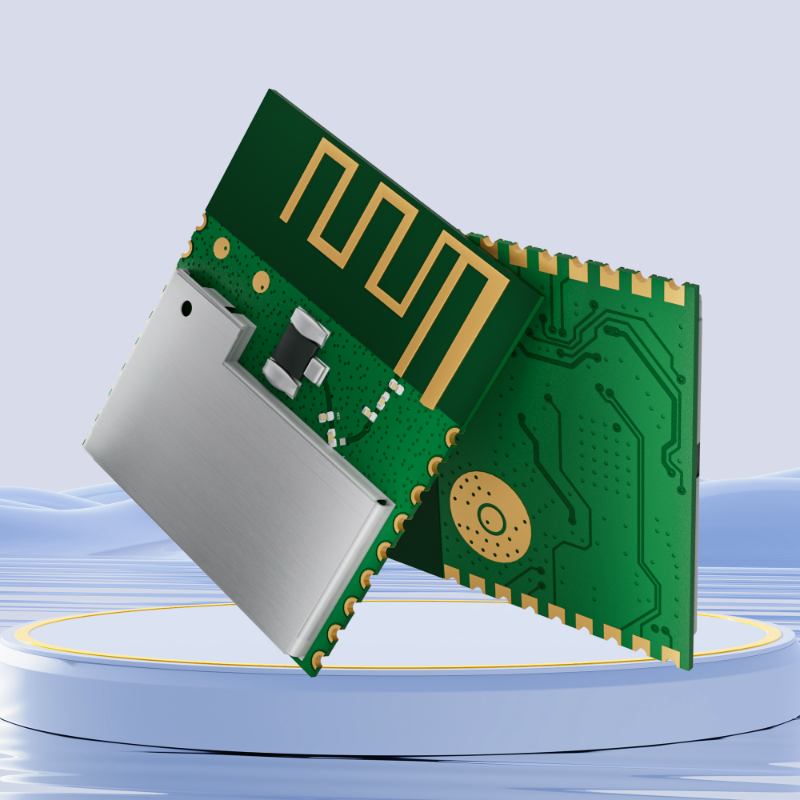

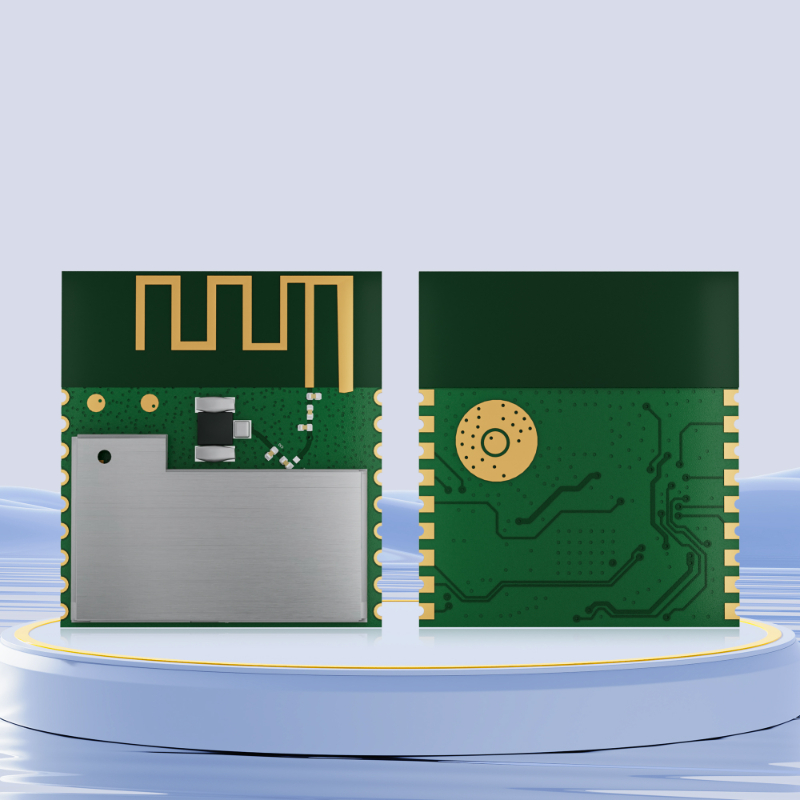

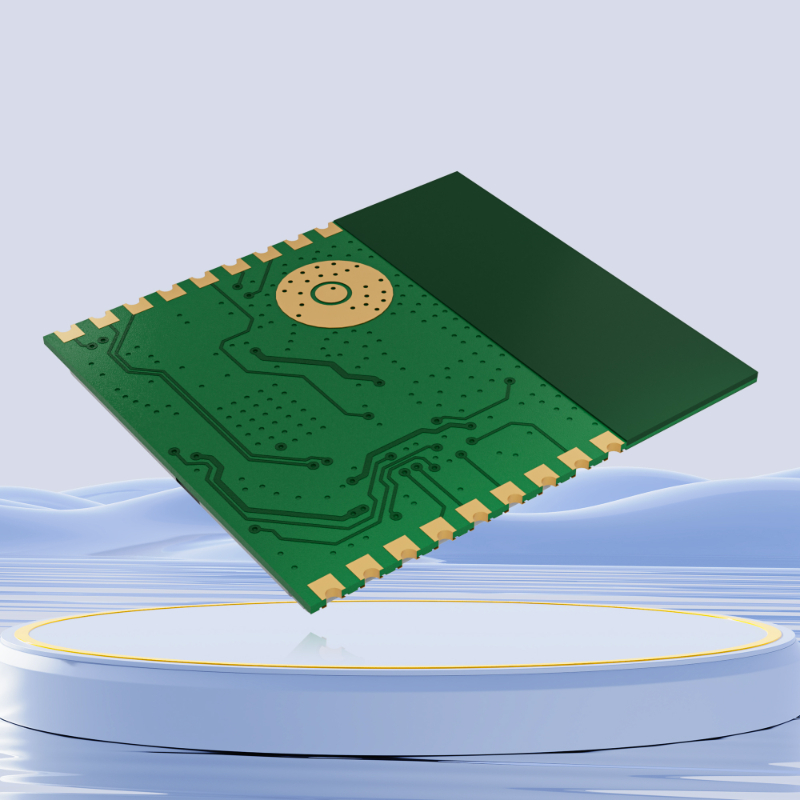

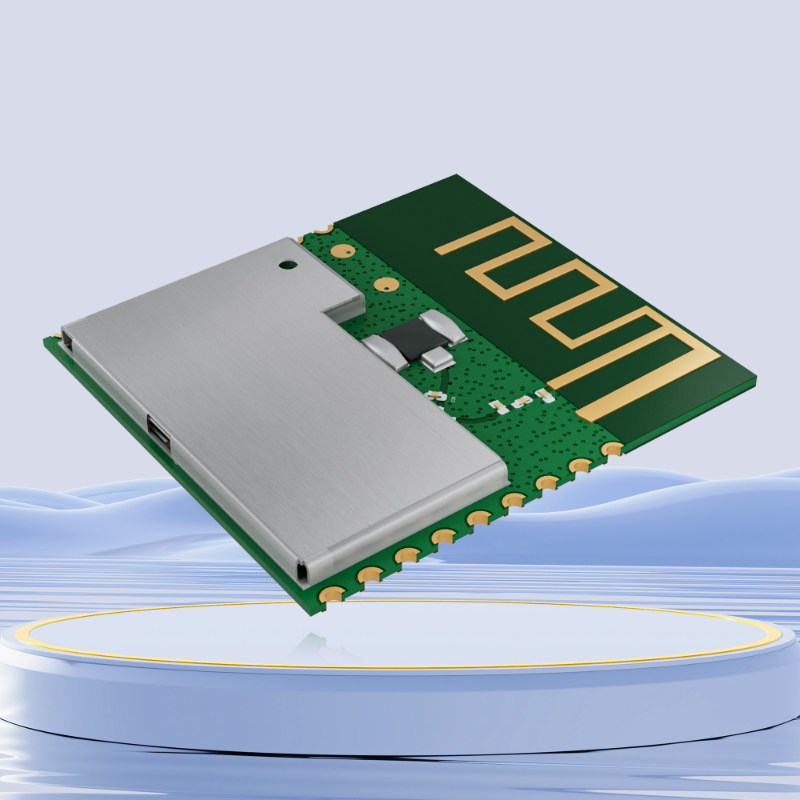

The 6220H-IF module is a highly integrated module with single-chip 802.11 /b/g/n 1T1R WLAN and Bluetooth Realtek 8720CF

  The 6220H-IF module also provides configurable GPIOs that are configured as digital peripherals for various applications and control usage

  The  6220H-IF  module combine a Real-M300 (KM4) CPU that is based on
ARMv8-M architecture, and integrates a WLAN MAC,an1T1R capable WLAN baseband,
an RF circuit, and Bluetooth Low Energy (BLE).

Application Scenario

  802.11 b/g/n compatible 1x1, 2.4GHz

  Supports low power Tx/Rx for short-range application

  Supports384KB ROM

  Supports256KB RAM

  Supports2MB FLASH

  Bluetooth Low Energy (BLE) 4.2

Application Scenario

Application Scenario

Application Scenario

Application Scenario
