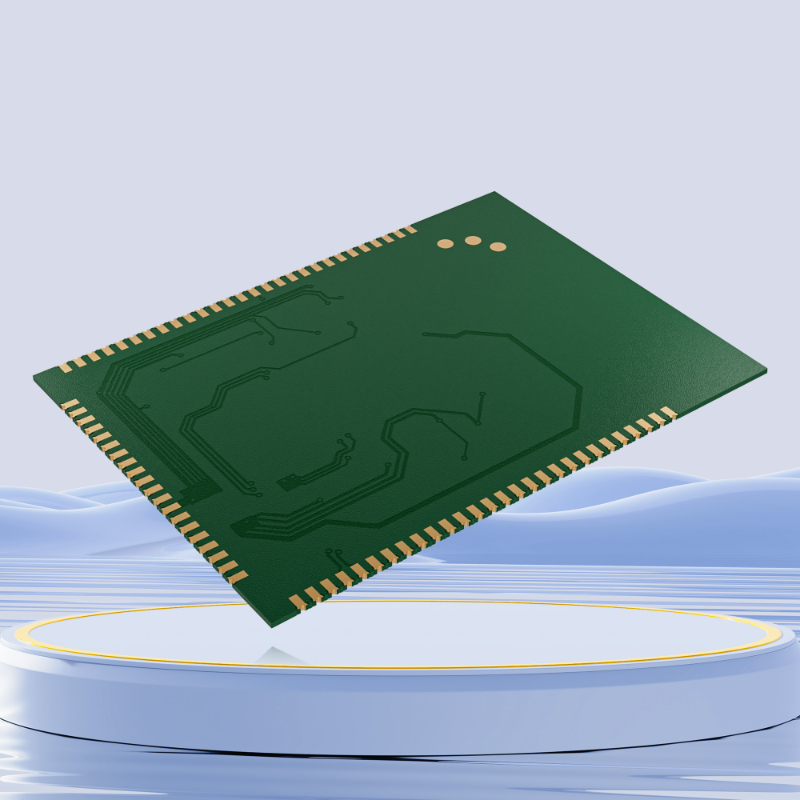

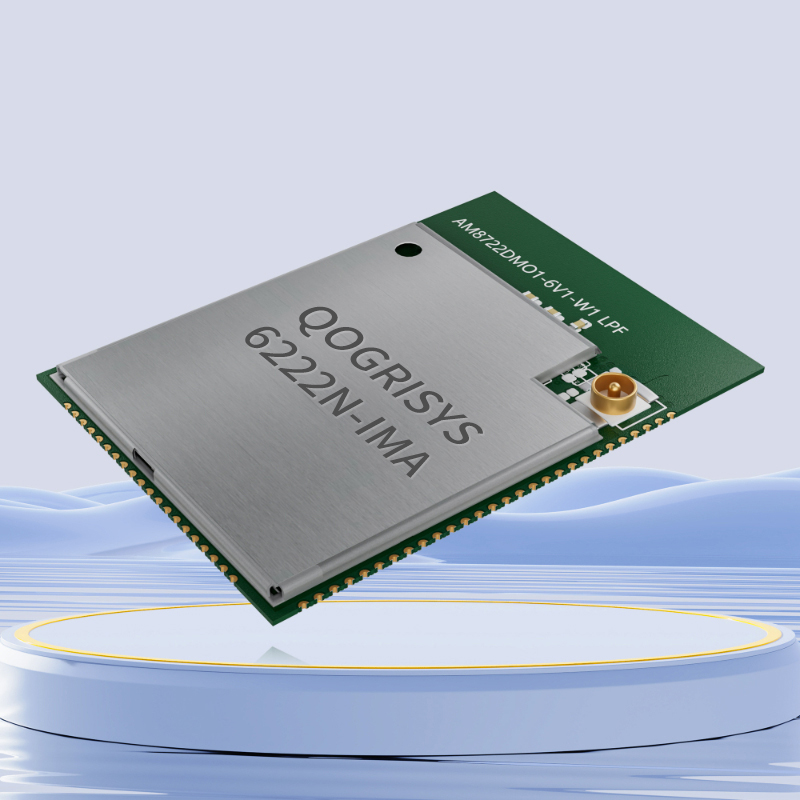

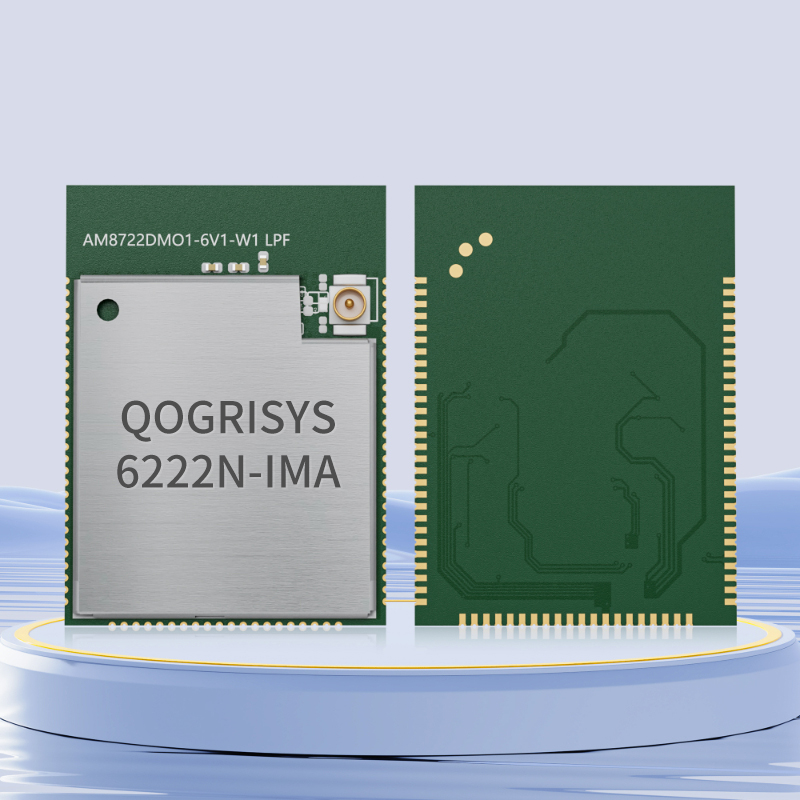

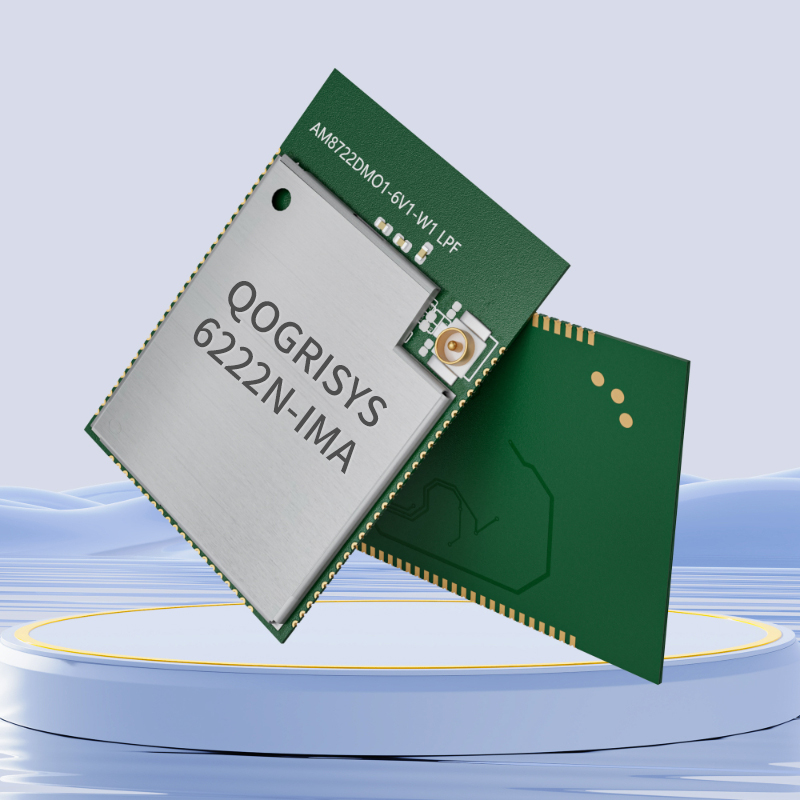

6222N-IMA
QOGRISYS 6222N-IMA 5gwifi module 802.11a/n wifi bluetooth module uart iot wifi modules
Protocol：802.11a/n
Size：27*37mm
Rate：150Mbps
Frequency Band：2.4GHz
Interface：Uart
The 6222N-IMA module is a highly integrated IoT module with low power 802.11a/b/g/n Wireless LAN (WLAN) and Bluetooth Low Energy communication controller
The 6222N-IMA module combines a high-performance KM4 MCU, a low power KM0 MCU, WLAN (802.11 a/b/g/n) MAC, a 1T1R capable WLAN baseband, RF, Bluetooth
High speed connectivity interfaces, SDIO and USB are provided.
The 6222N-IMA module integrates internal memories for complete Wi-Fi protocol functions.
Application Scenario
Dual processor core
KM4: Armv8-M with cortex-m33
KM0: Armv8-M with cortex-m23
512kB SRAM@200MHz
4MB PSRAM
4MB external flash
64 GPIO pins
IPC: inter-processor communication
Application Scenario
Application Scenario
Application Scenario
Application Scenario
