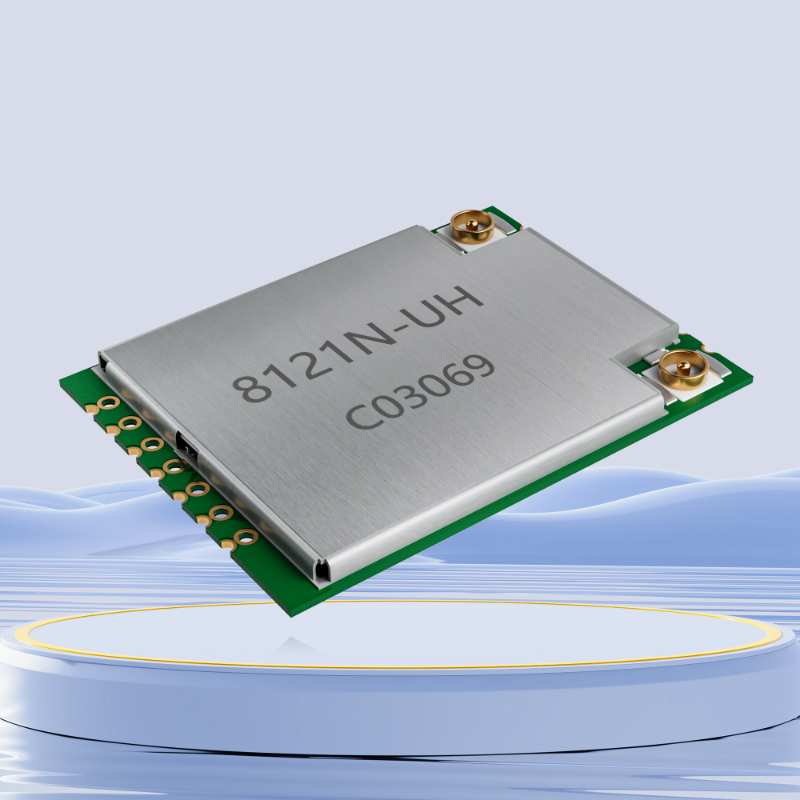

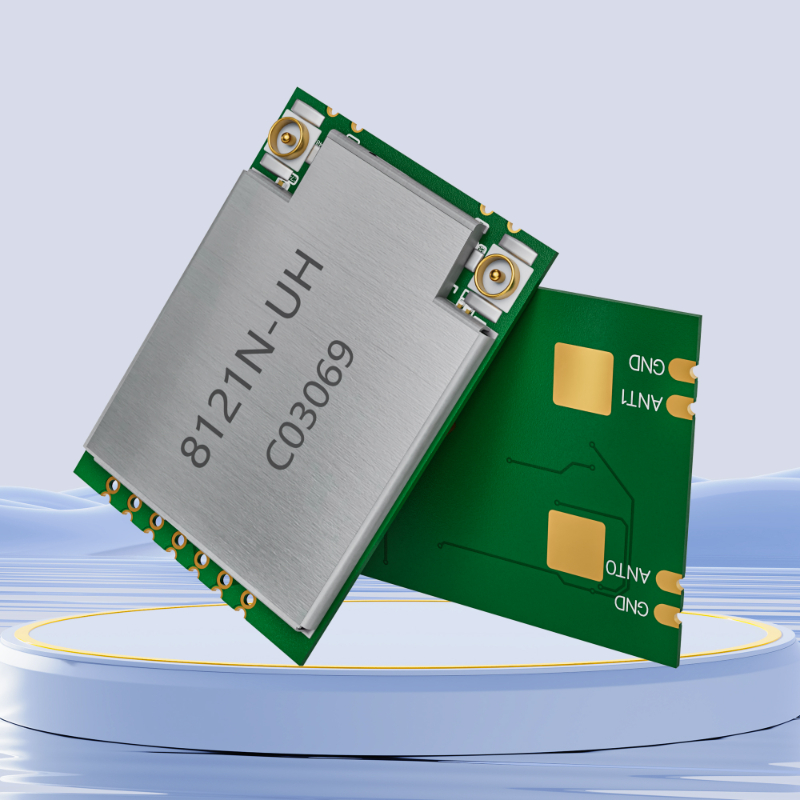

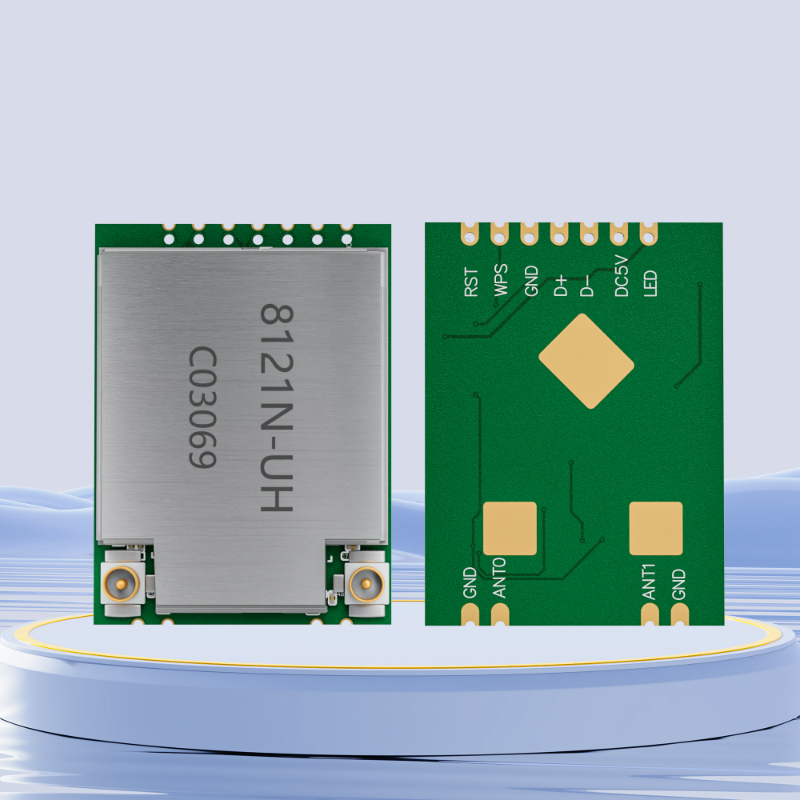

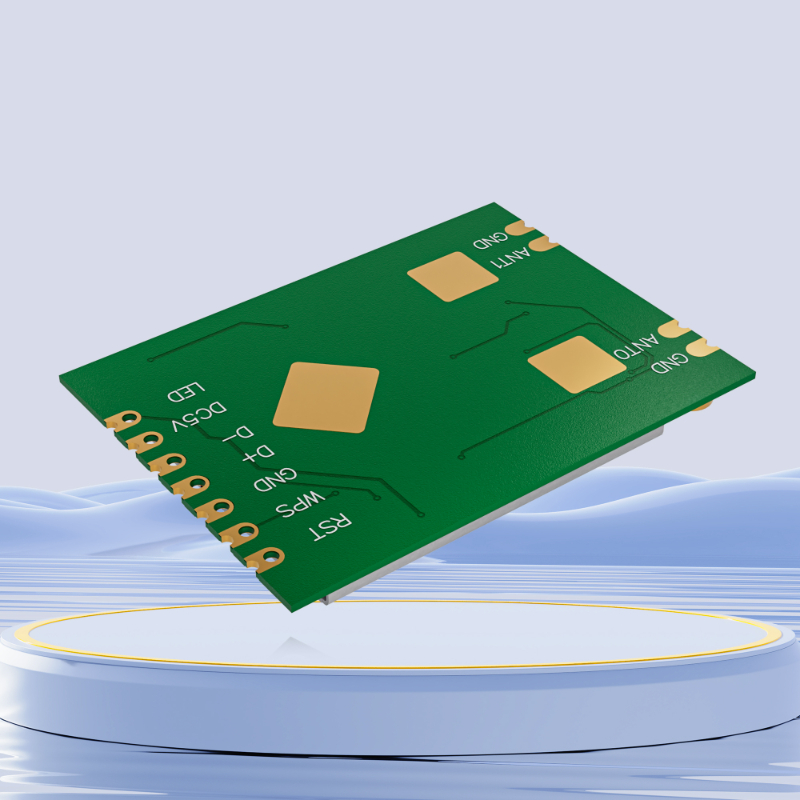

The 8121N-UH Module is a low-cost and high-power consumption module which has 5g of the WiFi functionalities

  The 8121N-UH Module makes the possibilities of web browsing, VoIP,
Long-distance audio and video transmission，Wireless HDMI Extender applications

  The 8121N-UH Module could interact with different vendors 802.11a/n 2x2 5G only Access Points in the wireless LAN

  The 8121N-UH Module complies with IEEE 802.11 a/n 2x2 MIMO standard

   The 8121N-UH ModuleThe 8121N-UH Module can achieve up to a speed of 300Mbps with dual stream in 802.11n to connect the wireless LAN

Application Scenario

  Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11a/n WLAN applications.

  Dual-stream spatial multiplexing up to 300 Mbps data rate.

  Supports 20/40MHz Bandwidth

  Supports USB interface for WLAN

  Integrated high power FEM.

Application Scenario

Application Scenario

Application Scenario

Application Scenario
