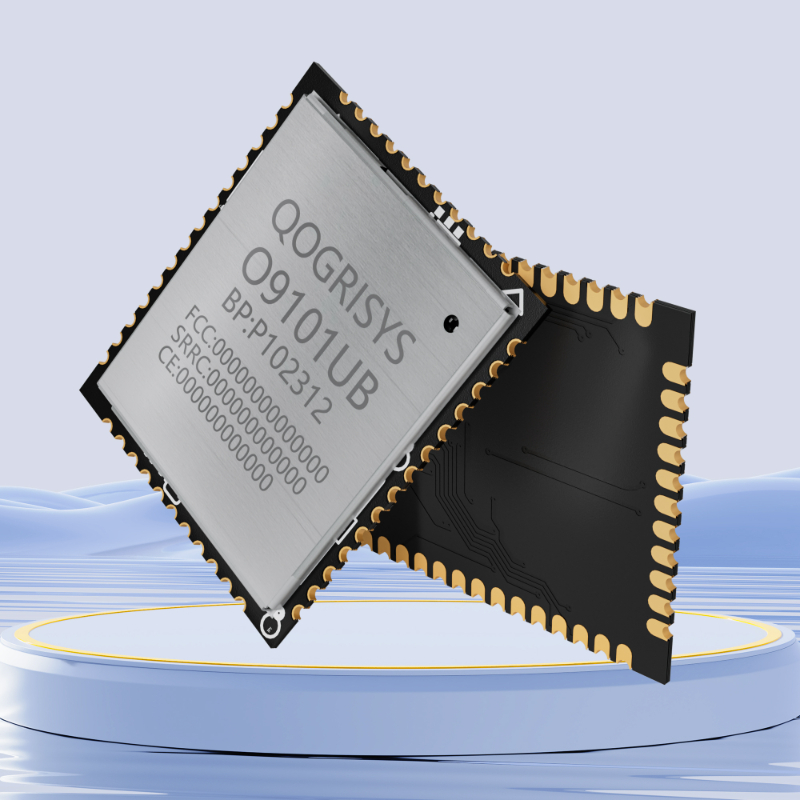

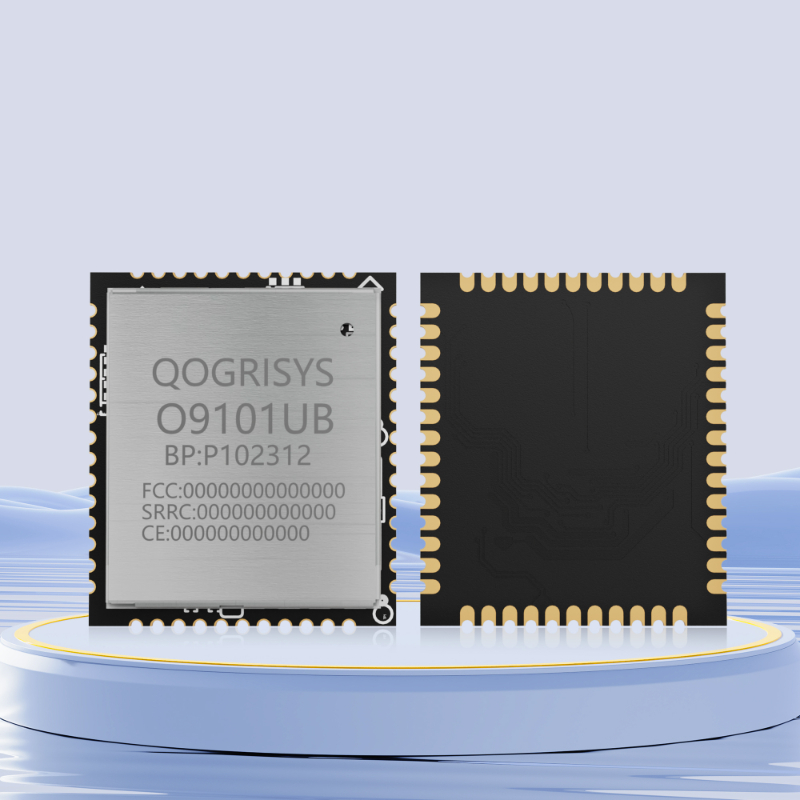

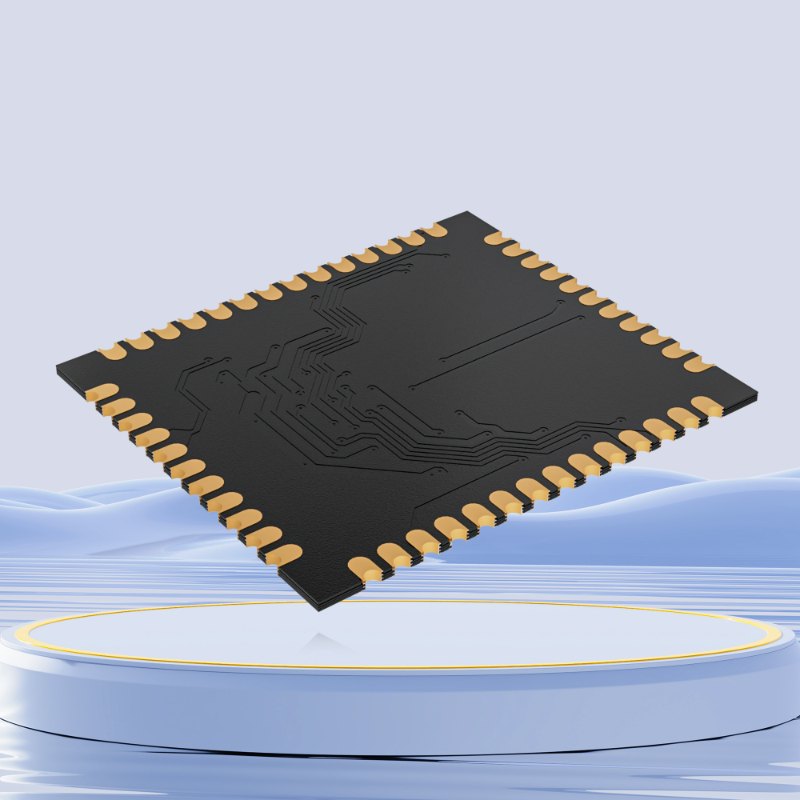

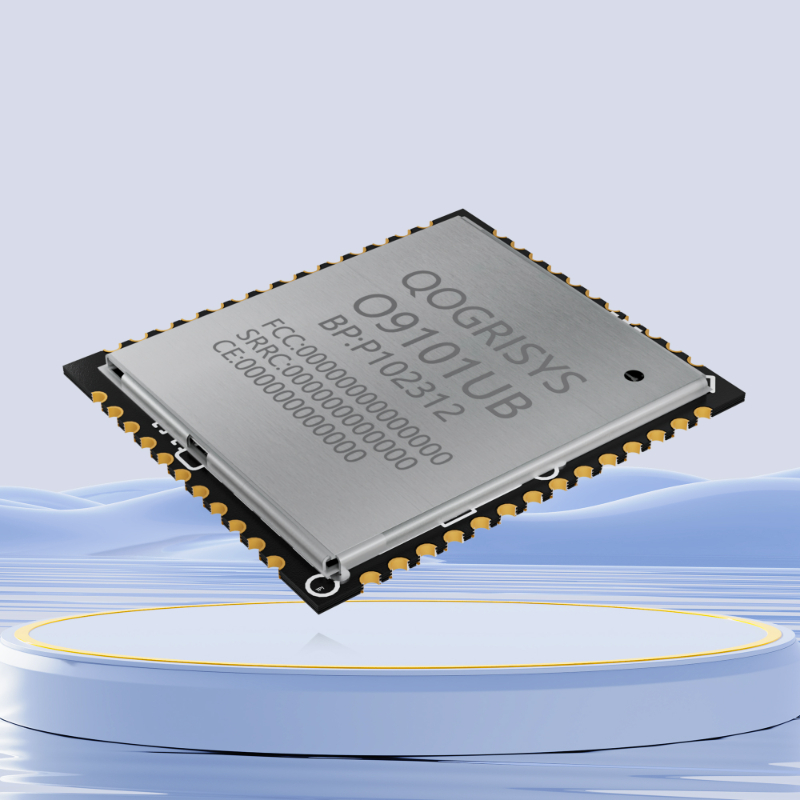

The O9101UB module is a highly integrated module supporting 802.11ax Wi-Fi and Bluetooth 5.3

  The  O9101UB module supporting simultaneous operation on 2.4 GHz and 5GHz, also known as Dual Band Simultaneous (DBS)

  The  O9101UB module  complies with IEEE 802.11 a/b/g/n/ac/ax standard and it can achieve up to a speed of 900Mbps

  The  O9101UB module  provides USB2.0 interface for Wi-Fi and Bluetooth

Application Scenario

  Dual Band Simultaneous (DBS), up to 900Mbps data rate (5G 80MHz 11ax + 2.4G 40MHz 11ax DBS)

  Dual-band 2.4 GHz/5 GHz support

  20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz

  Support uplink MU-OFDMA TX and downlink MU-OFDMA RX

  Support uplink MU-MIMO TX and downlink MU-MIMO RX

  Support WFA、WPA/WPA2/WPA3、WEP、WAPI

  Support P2P GO/GC mode

  DBS supports STA+AP, STA+ P2P GO, and STA+ P2P GC

  Support BR/EDR/LE-1M/LE-2M/LE-500k/LE-125k modulation mode
