U151B-R

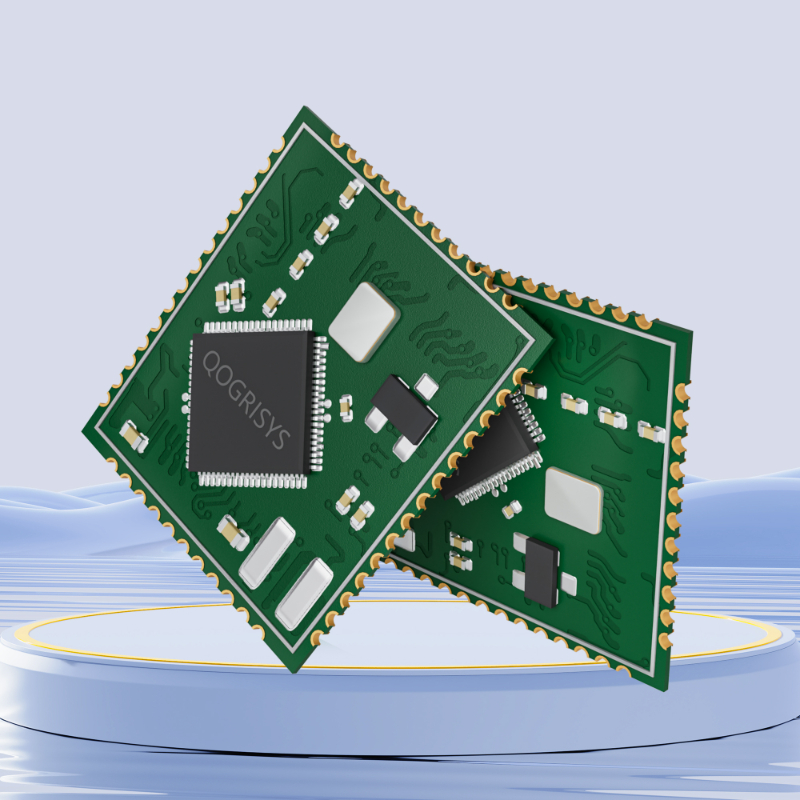

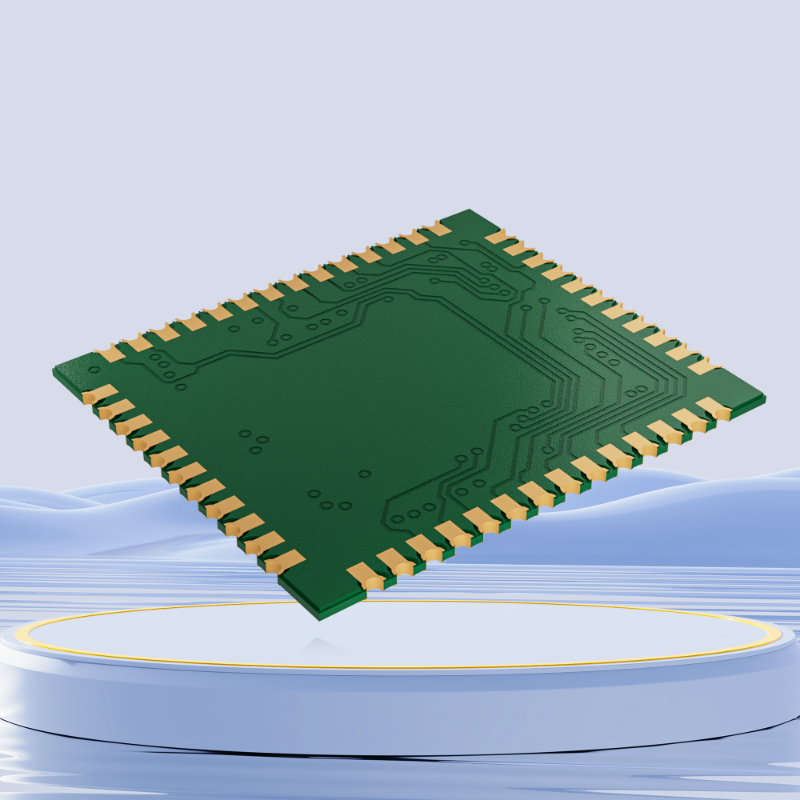

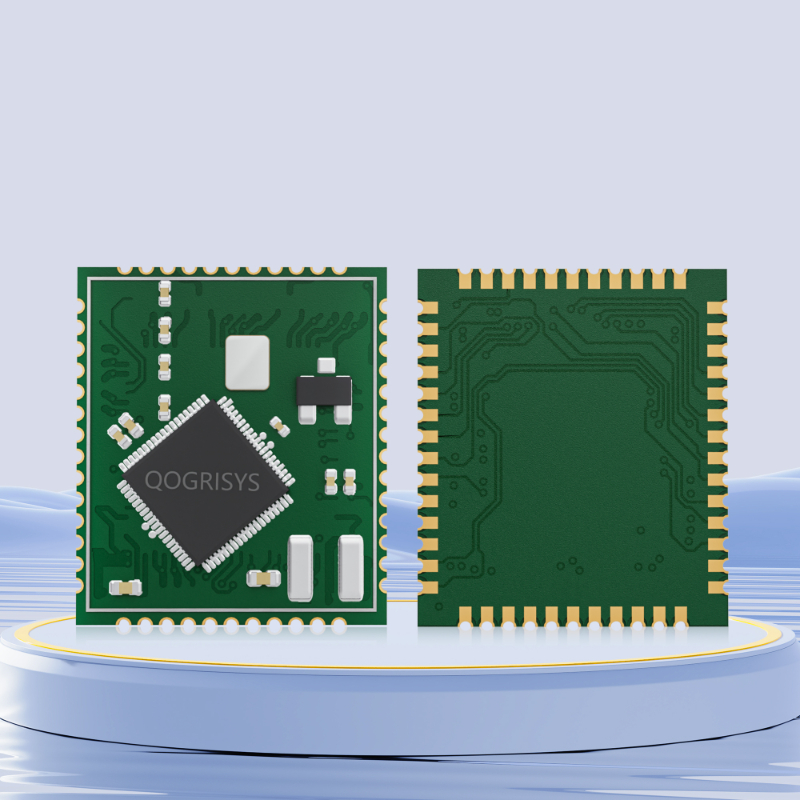

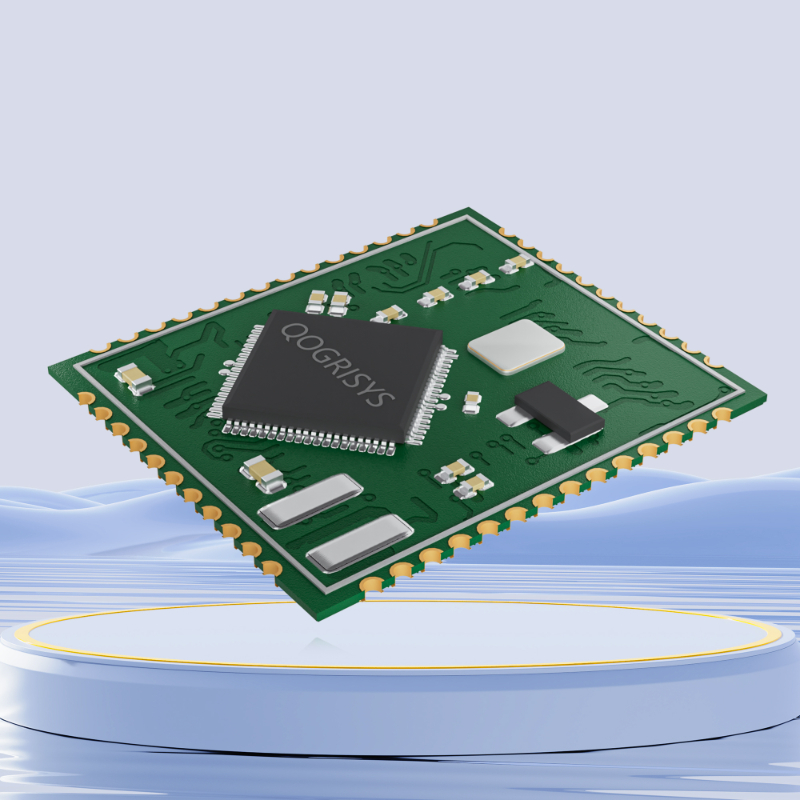

QOGRISYS U151B-R 2Mbps bluetooth5.2 module uart interface bluetooth module
Protocol：BT5.2
Size：13*15mm
Rate:2Mbps
Frequency Band：2.4GHz
Interface：UART
Introduction
Functions
Dimension
Diagram
Pin Outline
The U151B-R module is a Bluetooth 5.2 BR/EDR BLE dual-mode SOC
The U151B-R module is integrates low-power MCU, RF transceiver, baseband, modem, USB device, SARADC
The U151B-R module provides low-cost, low-power, flexible and more powerful Bluetooth applications.
Application Scenario
Compatible with Bluetooth v2.1 system
Supports all types of base and enhanced data rates
Support simple safe pairing
Compliant with HS-UART standard, configurable Bluetooth baud rate
Support multiple low-power states
Application Scenario
Application Scenario
Application Scenario
Application Scenario
