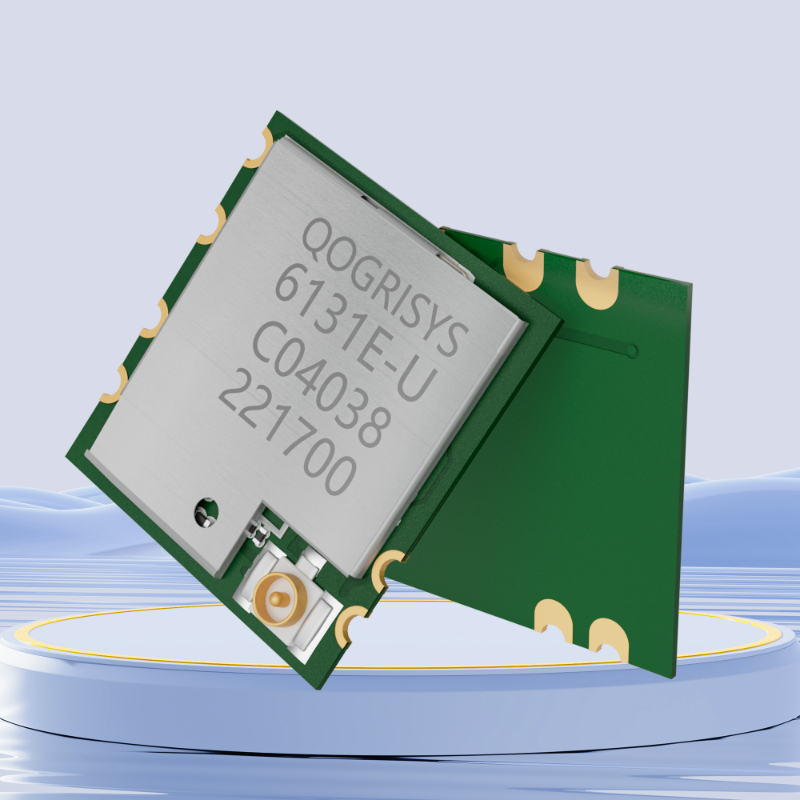

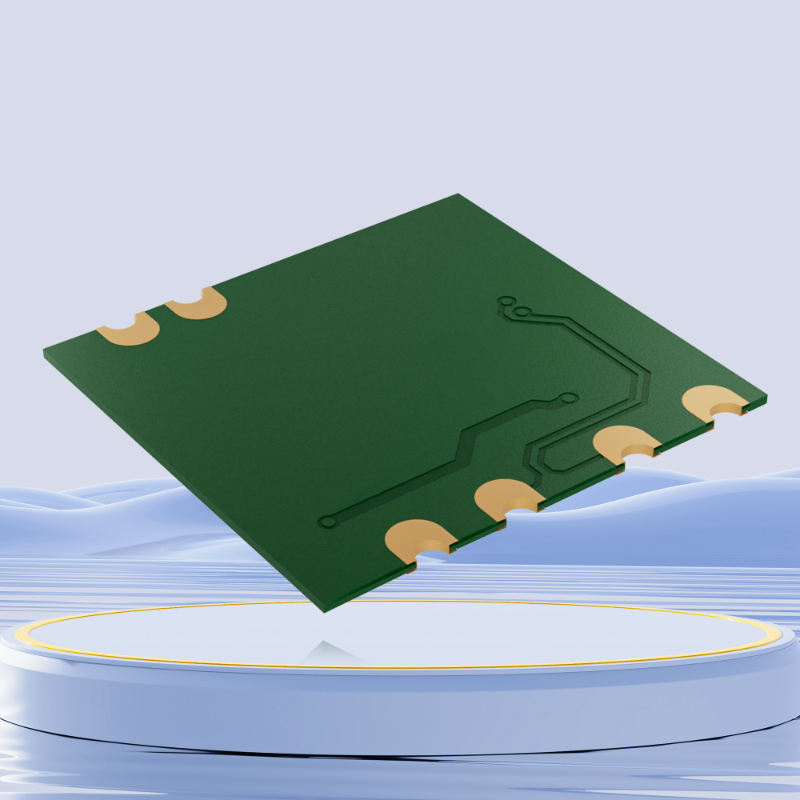

The 6131E-U module is a highly integrated single-chip 802.11a/b/g/n 1T1R WLAN

  The 6131E-U module could interact with 802.11a/b/g/n 1x1 Access Points in the wireless LAN

Application Scenario

  Highly integrated wireless local area network (WLAN) system-on-chip (SOC) for 2.4G(802.11b/g/n)/5G (802.11a/n) WLAN applications

  Supports 20/40MHz at 2.4GHz and 5GHz

  OFDM with BPSK, QPSK, 16QAM, 64QAM modulation, Coding Rate: 1/2, 2/3, 3/4, and 5/6

  Maximum data rate 54Mbps in 802.11a and 802.11g, and 150Mbps in 802.11n

 Max 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

 Supports USB interface for WLAN

Application Scenario

Application Scenario

Application Scenario

Application Scenario
