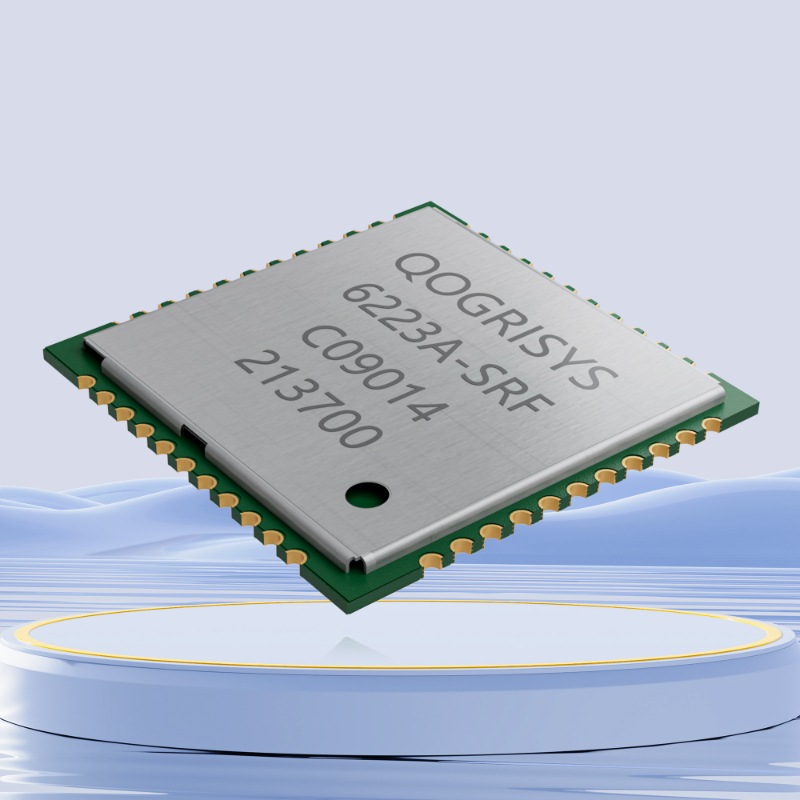

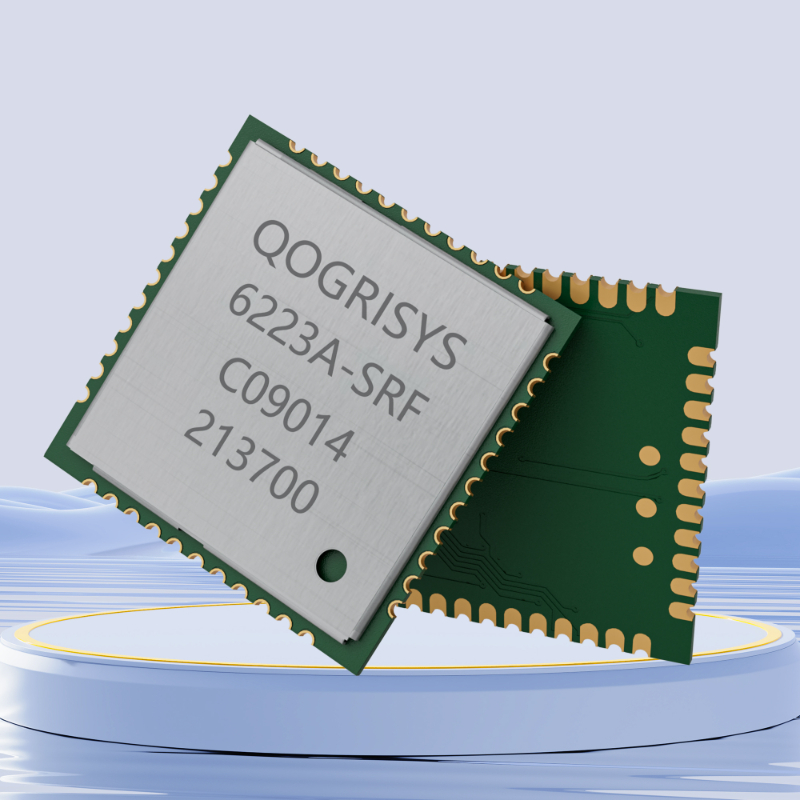

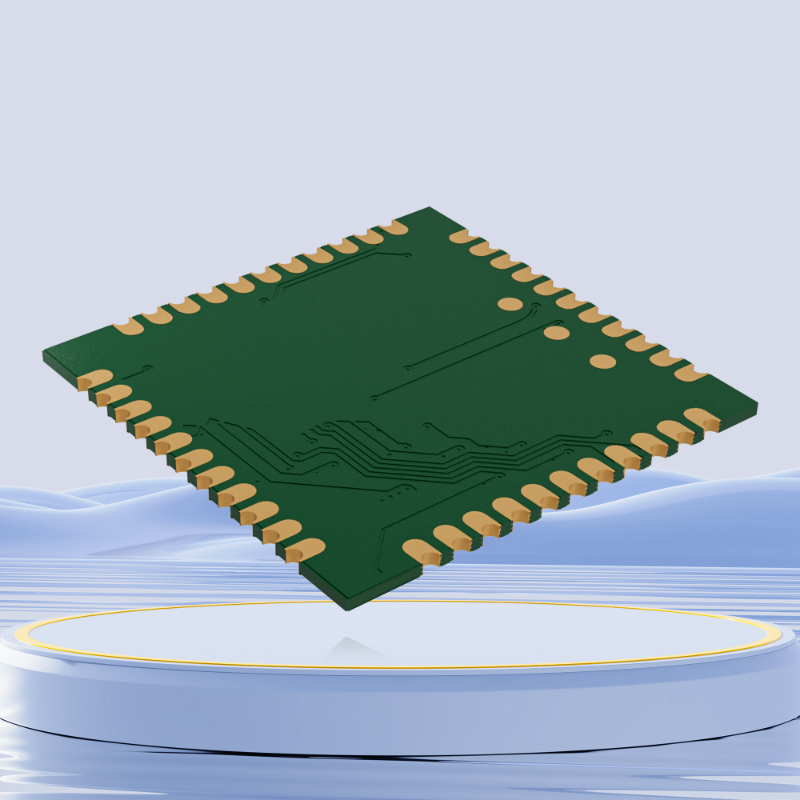

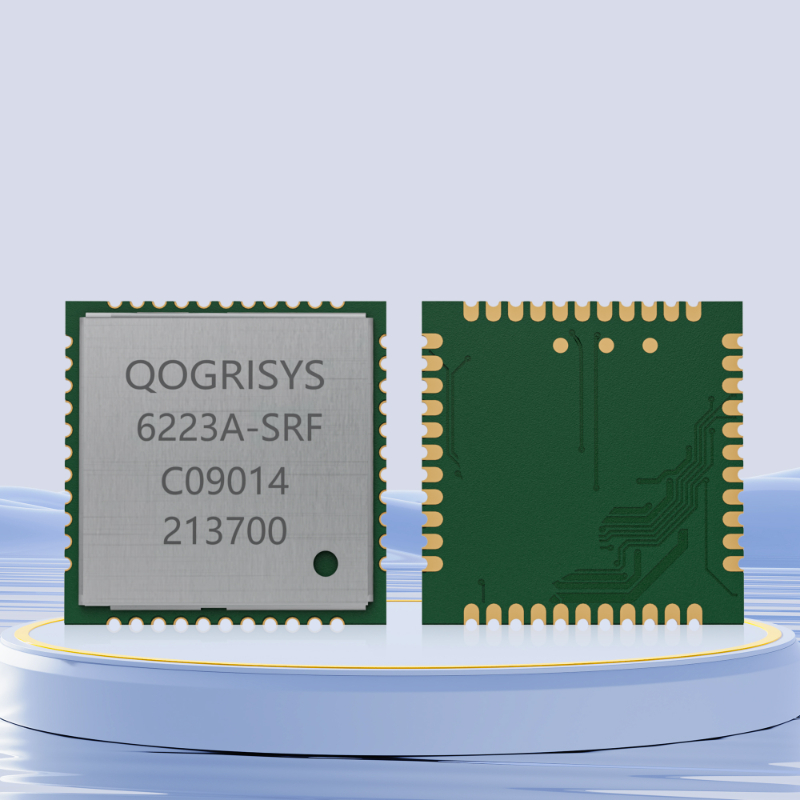

The 6223A-SRF module is a highly integrated single-chip 802.11b/g/n 1T1R WLAN

  The 6223A-SRF module  integrated Bluetooth Smart Ready single chip with SDIO 2.0 multi-function

  The 6223A-SRF module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility

  Bluetooth can support BT2.1+EDR/BT3.0 and BT5.2

Application Scenario

  802.11 b/g/n 1T1R WLAN, and Bluetooth5.2 combo chip

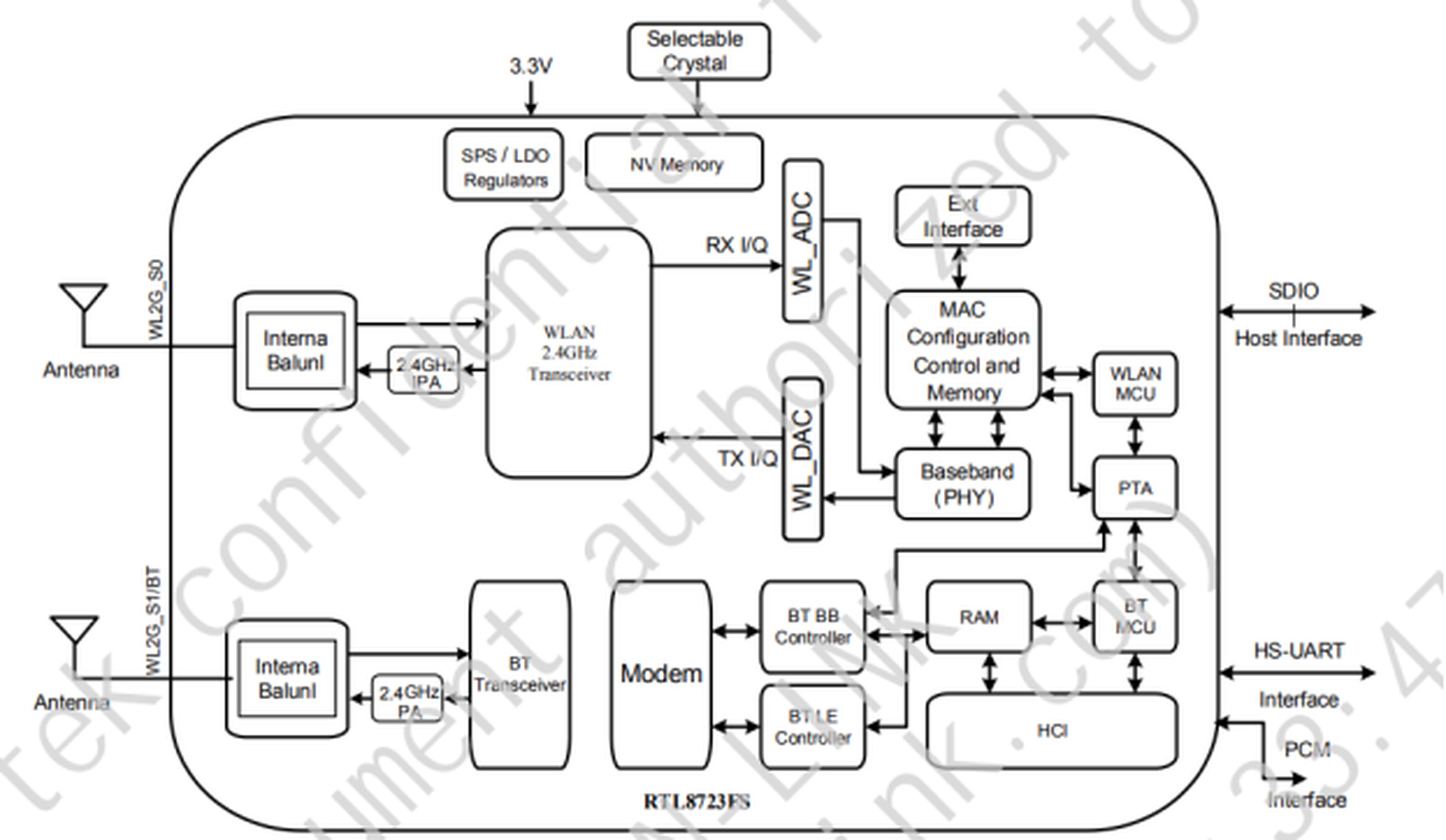

  CMOS MAC, Baseband PHY, and RF in a combo chip for 802.11b/g/n compatible WLAN

  Complete 802.11n solution for 2.4GHz single band

  150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

  Channel management and co-existence

  Compatible with Bluetooth v2.1+EDR and v5.2 Systems

Application Scenario

Application Scenario

Application Scenario

Application Scenario
