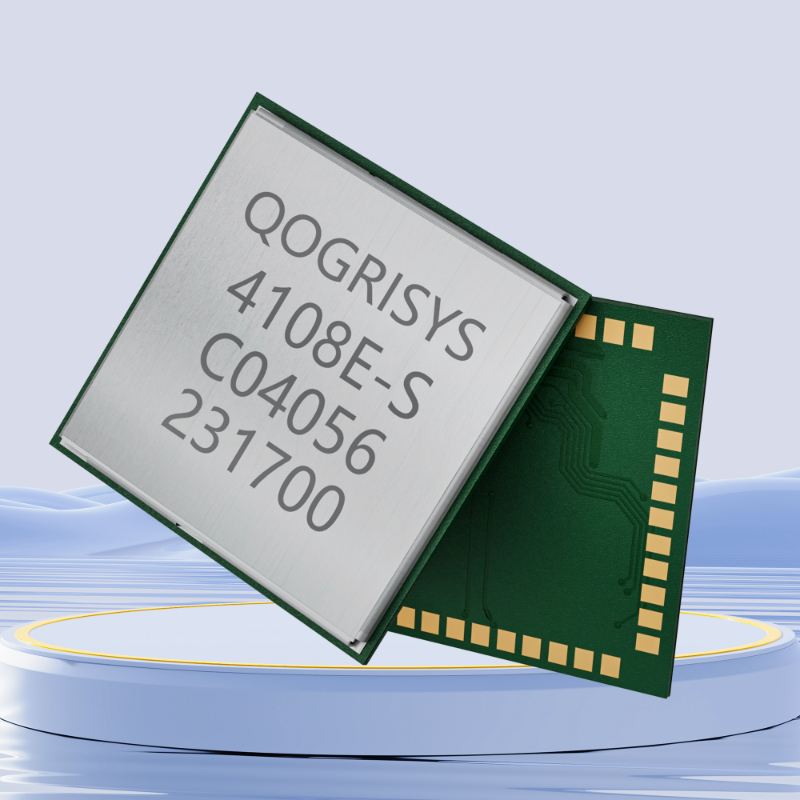

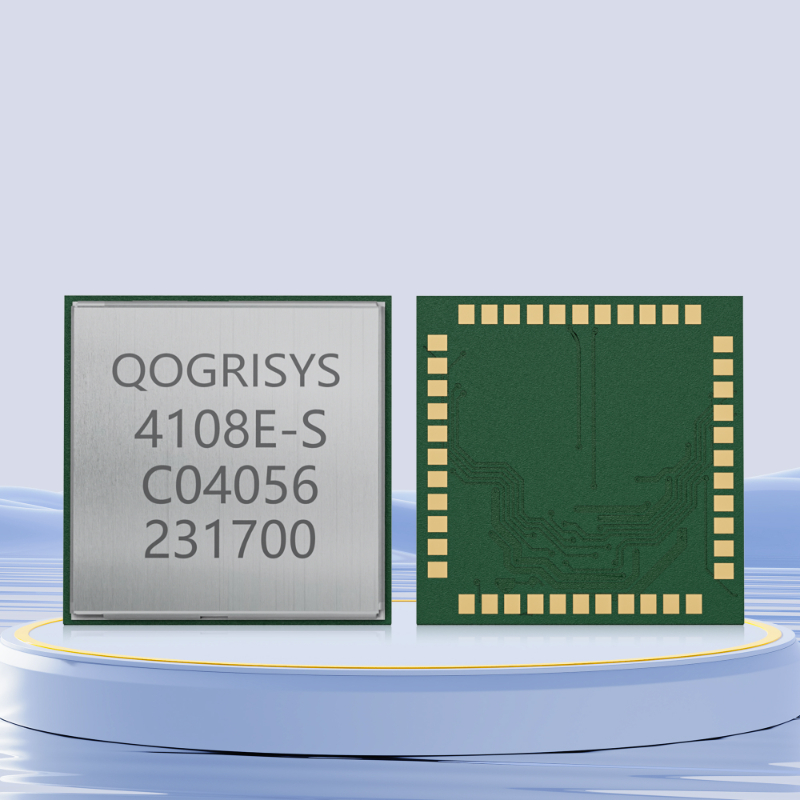

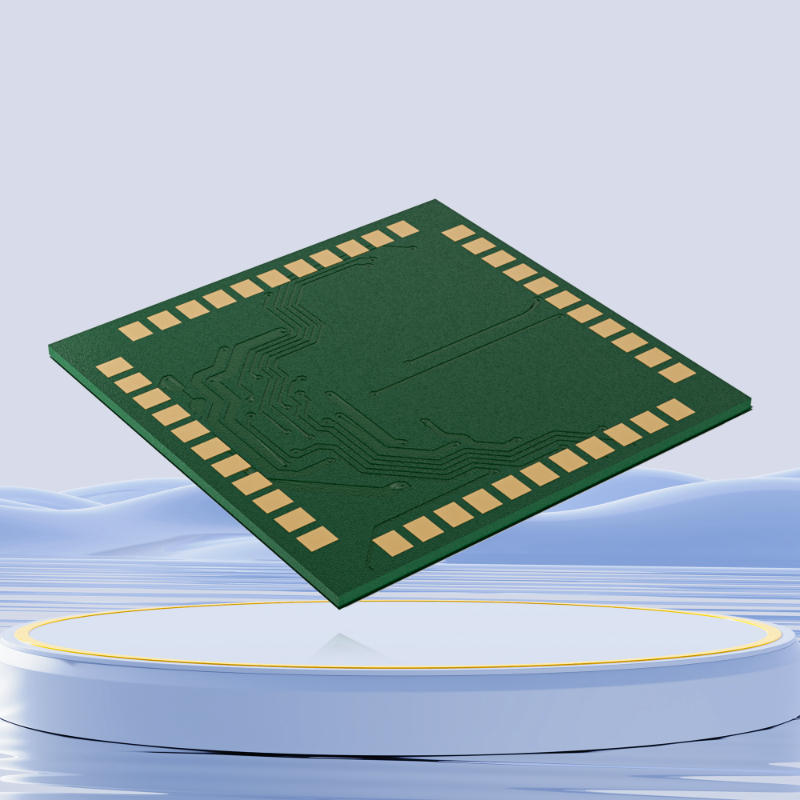

The 4108E-S module is a highly-integrated IEEE 802.11 ah MAC/Baseband/RF WLAN single chip

  The 4108E-S module provides SDIO interface for Wi-Fi

  The 4108E-S module supports data rates up to 32.5 Mbps that operates in the Sub 1GHz license-exempt band, offering longer ranger and higher data rate for internet of things (IoT) applications

  The 4108E-S module enables streamlined data transfer interoperability with existing Wi-Fi networks while meeting up to 1Km long range data transfer with low power consumption requirements

Application Scenario

  Support 850 - 950MHz frequency band

  Support channel width options of 1/2/4 MHz

  Support single-stream data rate up to 32.5Mbps @8MHz or 15 Mbps @4MHz channel.

  Support Modulation and Coding Scheme (MCS) levels MCS 0-7 and MCS 10

  Modulation: BPSK & QPSK, 16-QAM & 64 -QAM

  Support for 1 MHz and 2 MHz duplicate modes
