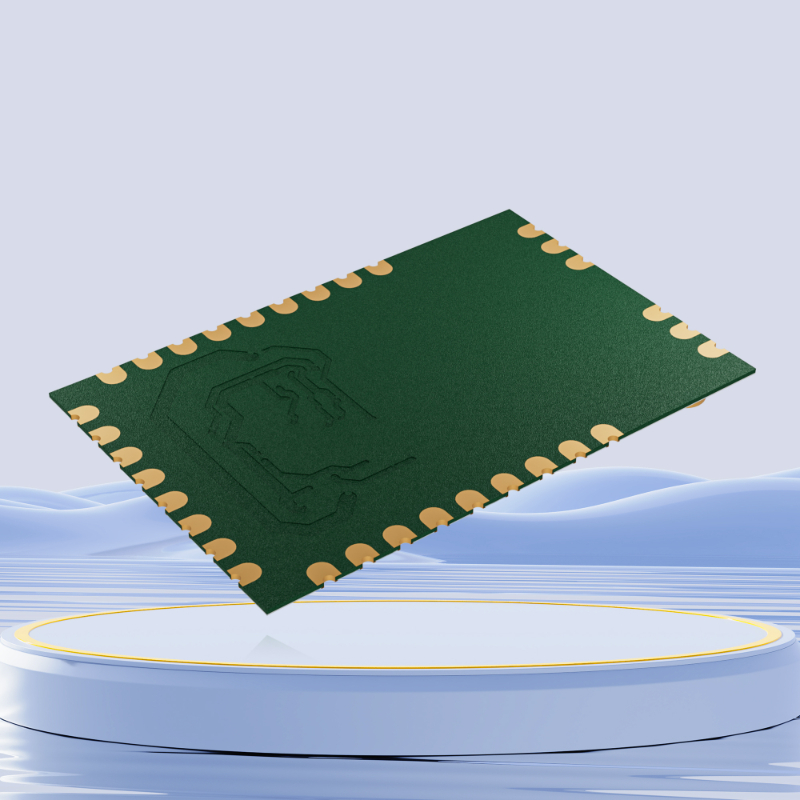

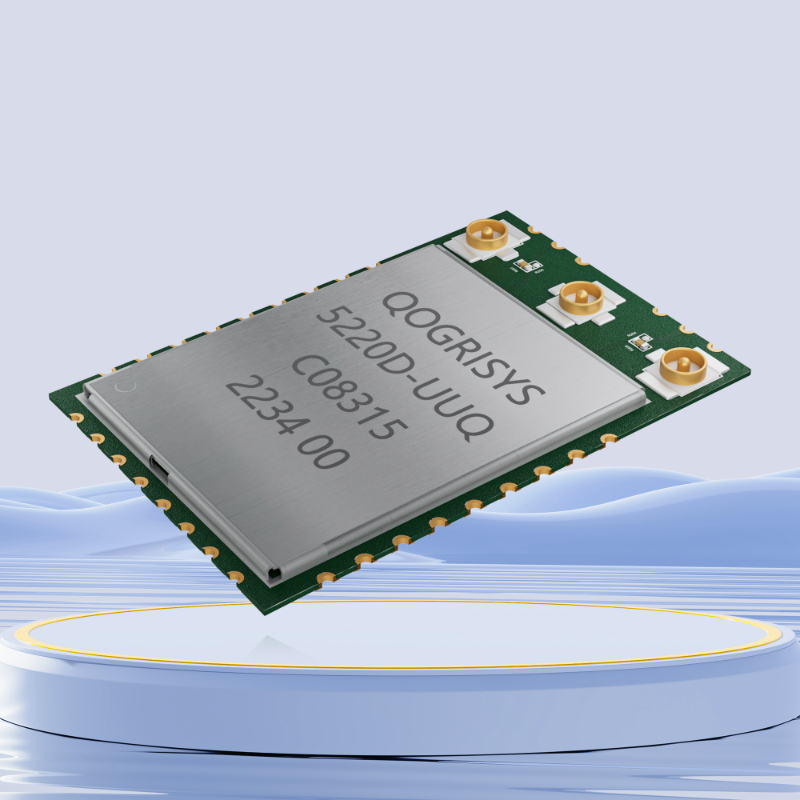

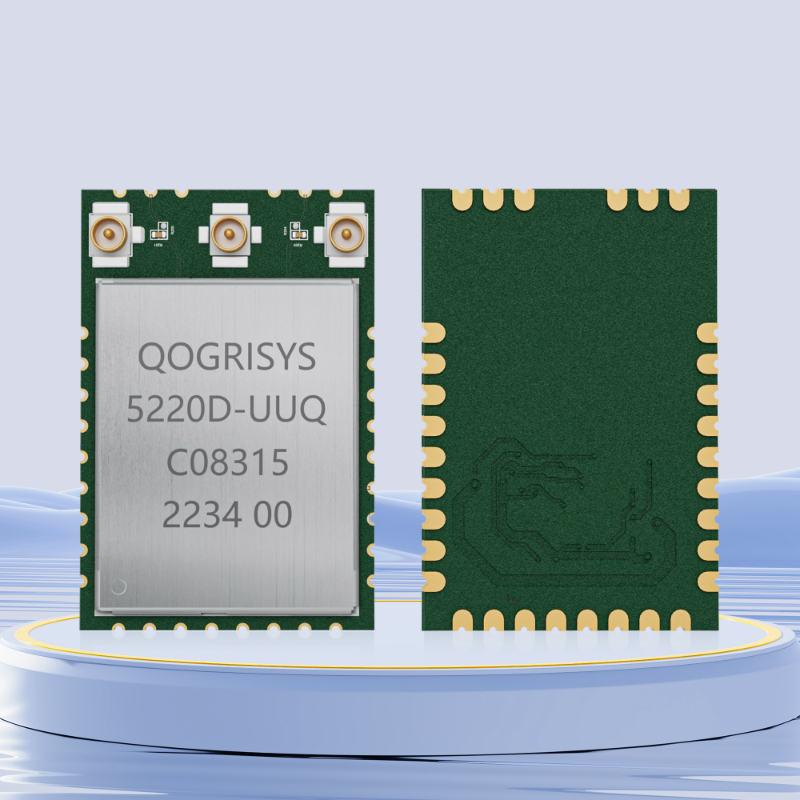

The 5220D-UUQmodule is a highly integrated single-chip that support 2-stream 802. 11ax solutions

  The 5220D-UUQmodule support Multi-user MIMO (Multiple-Input, Multiple-Output)

  The 5220D-UUQ module support Wireless LAN (WLAN) USB interface controller

  The 5220D-UUQ module with integrated Bluetooth 5.2 interface controller

  The 5220D-UUQ module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanism to ensure backward and network compatibility.

  The 5220D-UUQ module provides a complete solution fora high-performance integrated wireless and Bluetooth device

Application Scenario

  IEEE 802.11a/b/g/n/ac/ax compatible WLAN

  Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

  Supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO

  Complete 802.11n MIMO solution for 2.4GHz and 5GHz band

  Supports USB interface for WLAN and Bluetooth

  Supports Bluetooth 5.2 system

  Dual Mode support: Simultaneous LE and BR/EDR

  Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles
