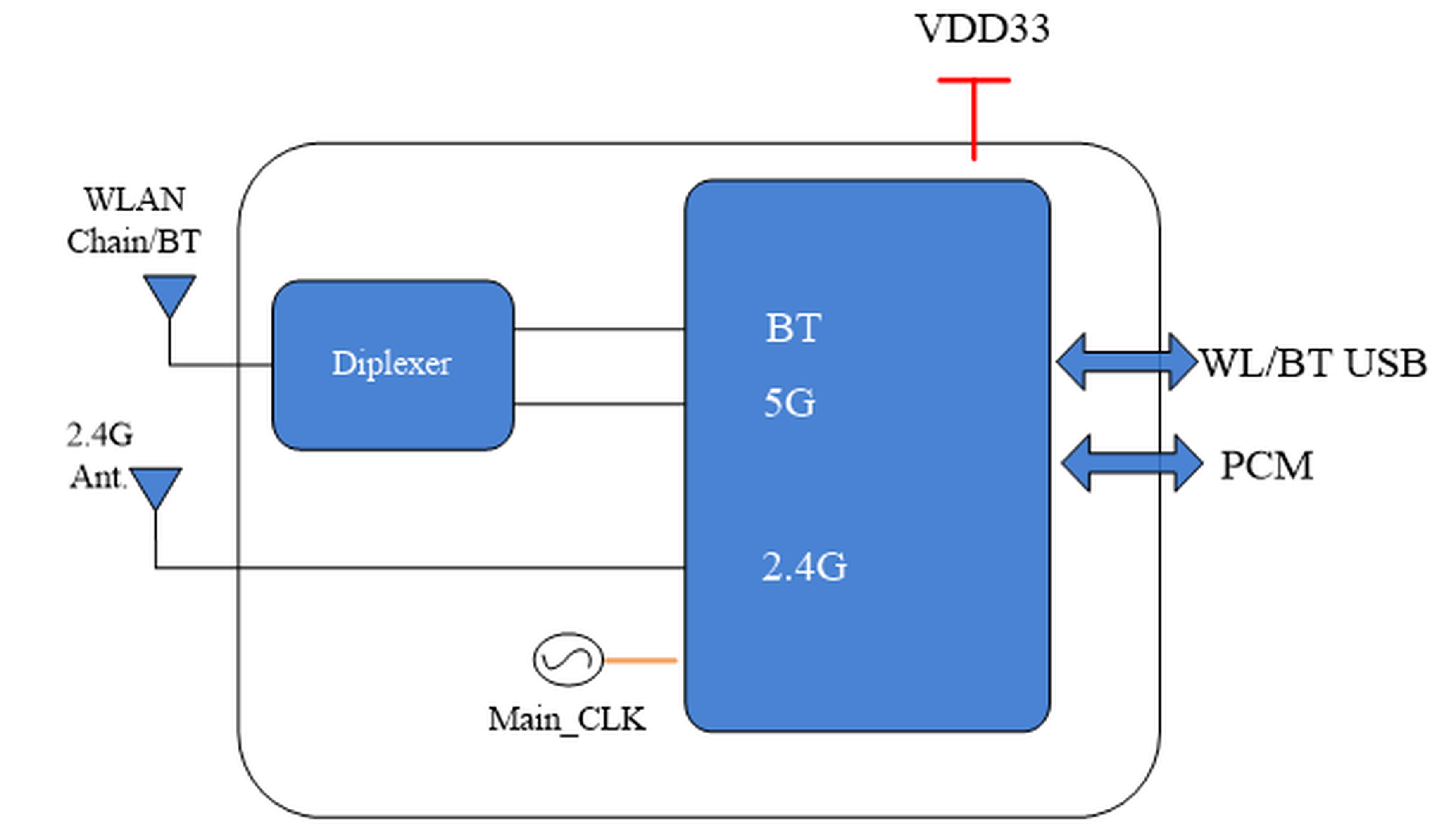

The 6221E-UUC module is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip

  The 6221E-UUC module provides USB interface for Wi-Fi and Bluetooth

  The 6221E-UUC module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433Mbps

  The 6221E-UUC module provides simple legacy and 20MHz/40MHz/80MHz co-existence mechanisms to ensure backward and network compatibility

Application Scenario

  Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications

  Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

  Supports WLAN-Bluetooth coexistence

  Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate.

  Supports Bluetooth for class1、class2 and class 3 power level transmissions without requiring an external PA.
