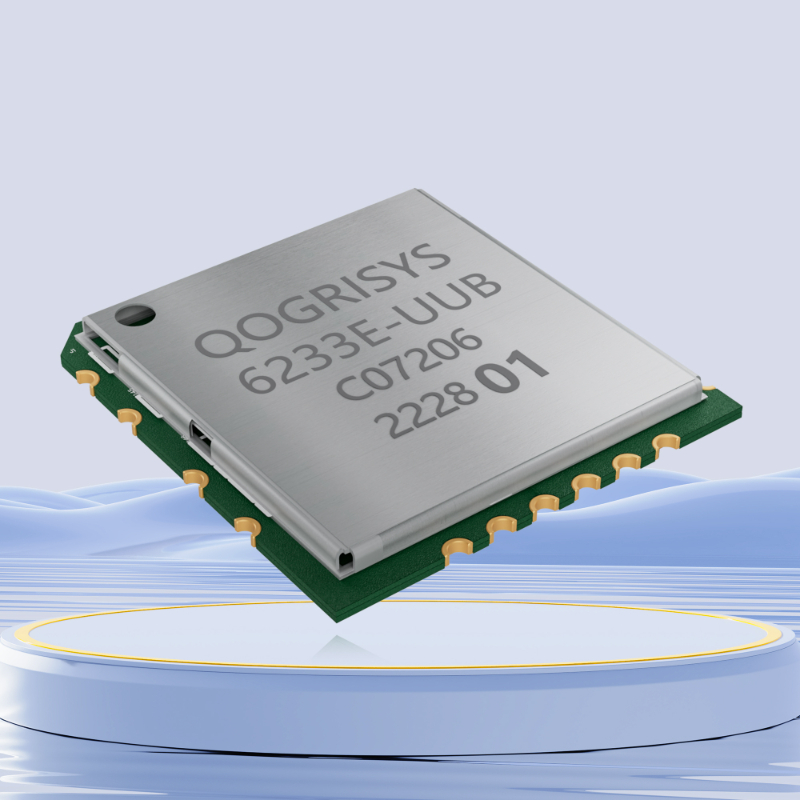

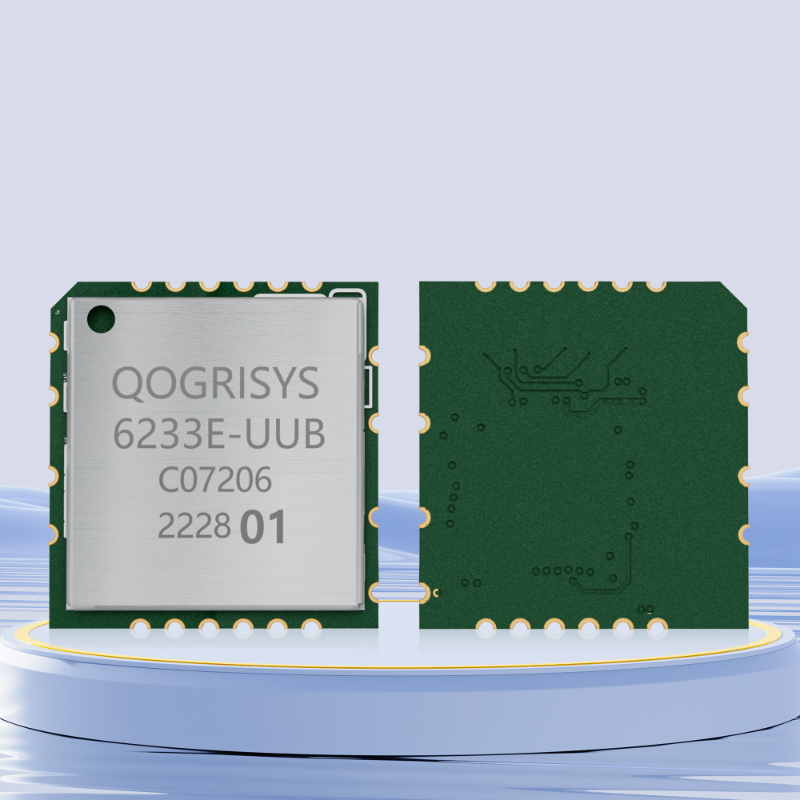

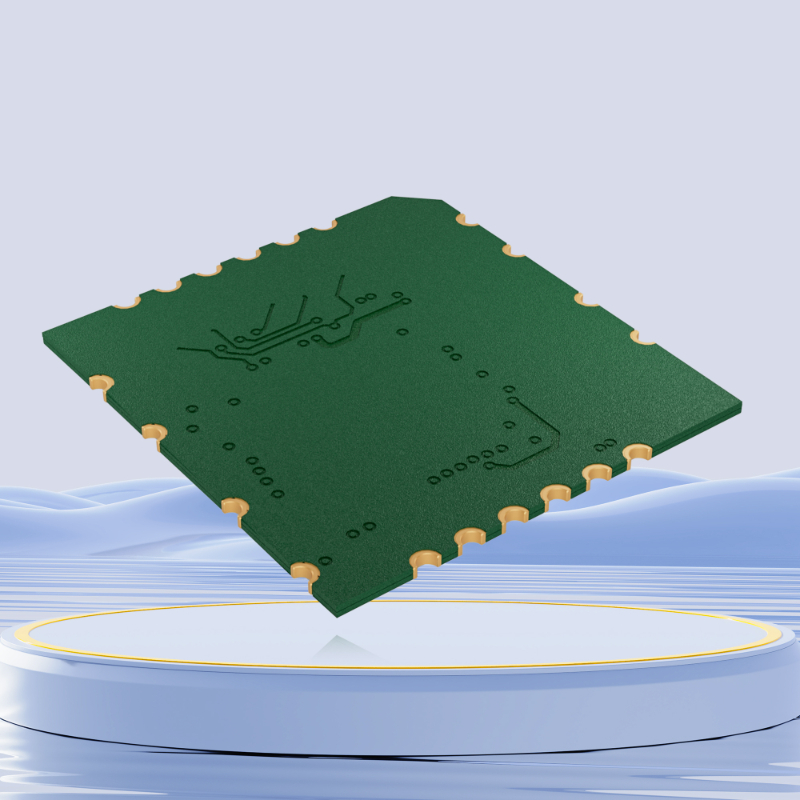

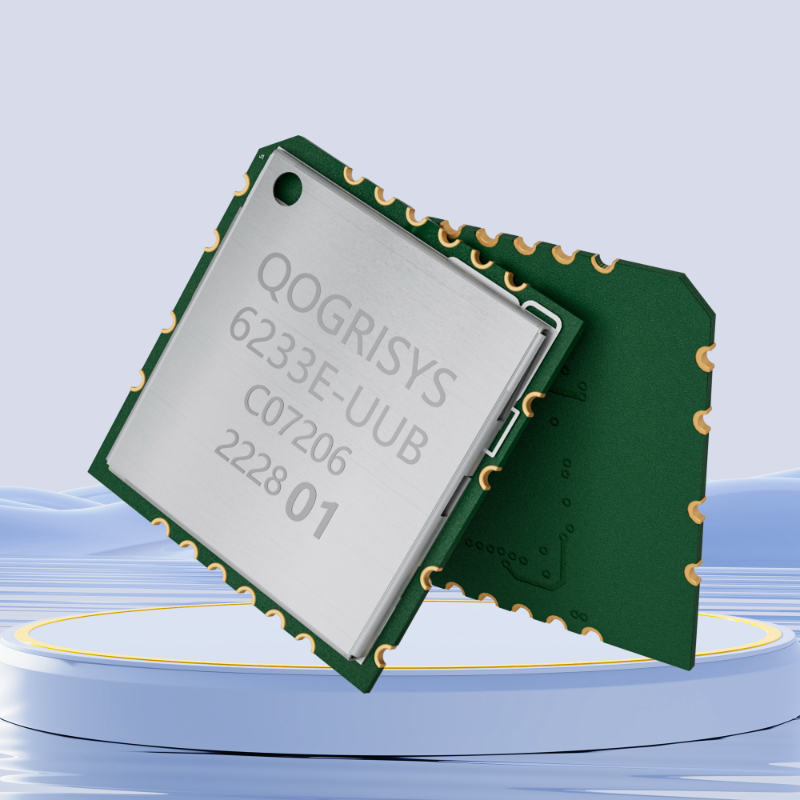

6233E-UUB is a highly integrated module with Realtek 8733BU-CG single-chip 802.11a/b/g/n 1T1R WLAN

  Support an integrated Bluetooth 5.2 combo chip with USB 2.0 multi-function

  The highly integrated module makes the possibilities of web browsing,VoIP, video stream applications

  Support interact with different vendors’802.11a/b/g/n 1x1 Access Points in the wireless LAN

  The wireless module complies with IEEE 802.11 a/b/g/n standard and it can achieve up to a speed of 150Mbps

  The integrated module provides USB2.0 interface for Wi-Fi

Application Scenario

  802.11a/b/g/n 1T1R WLAN and Bluetooth 5.2 combo chip

  Complete 802.11n solution for both 2.4GHz and 5GHz band

  72.2Mbps receive PHY rate and 72.2Mbps transmit PHY rate using 20MHz bandwidth

  150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth

  Maximum data rate 54Mbps in 802.11g; and 150Mbps in 802.11n WLAN Interface

  USB Multi-Function for both BT (USB function 0) and WLAN (USB function 1

  Bluetooth 5.2 Dual Mode support: Simultaneous LE and BR/EDR

  Supports Bluetooth muptiple Low Energy states
