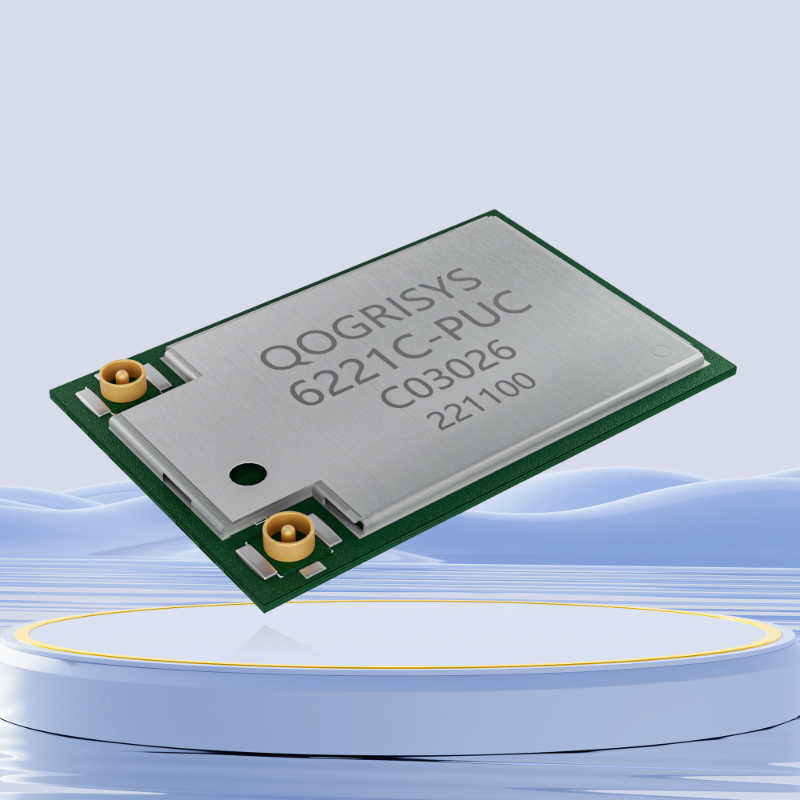

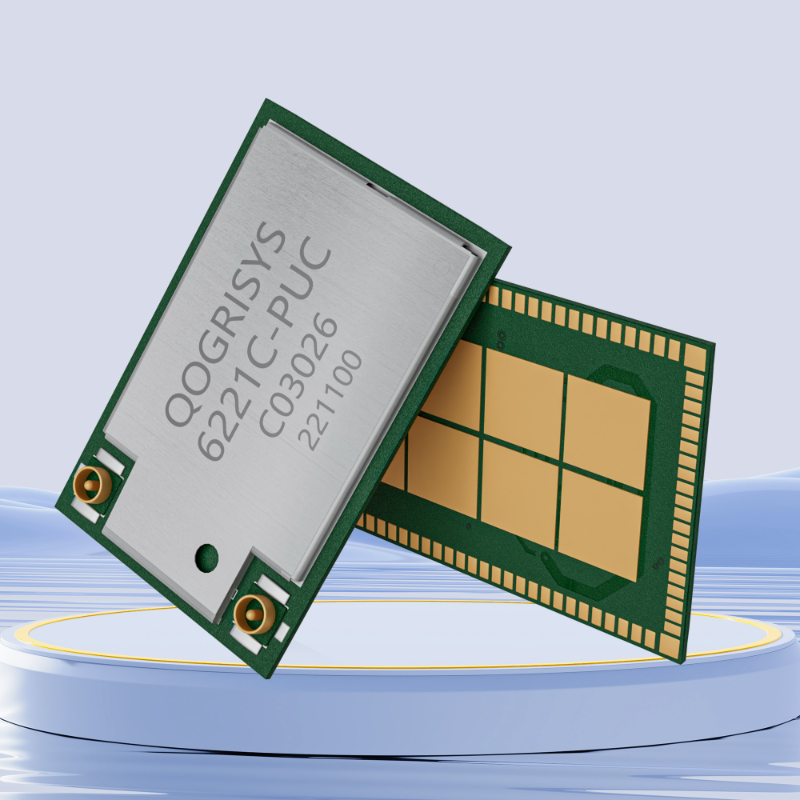

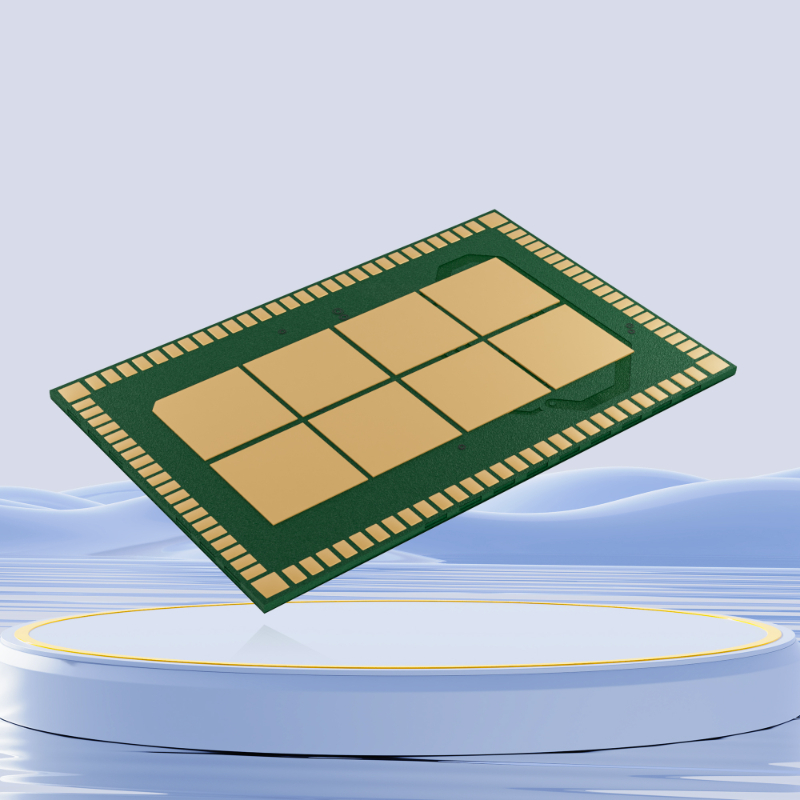

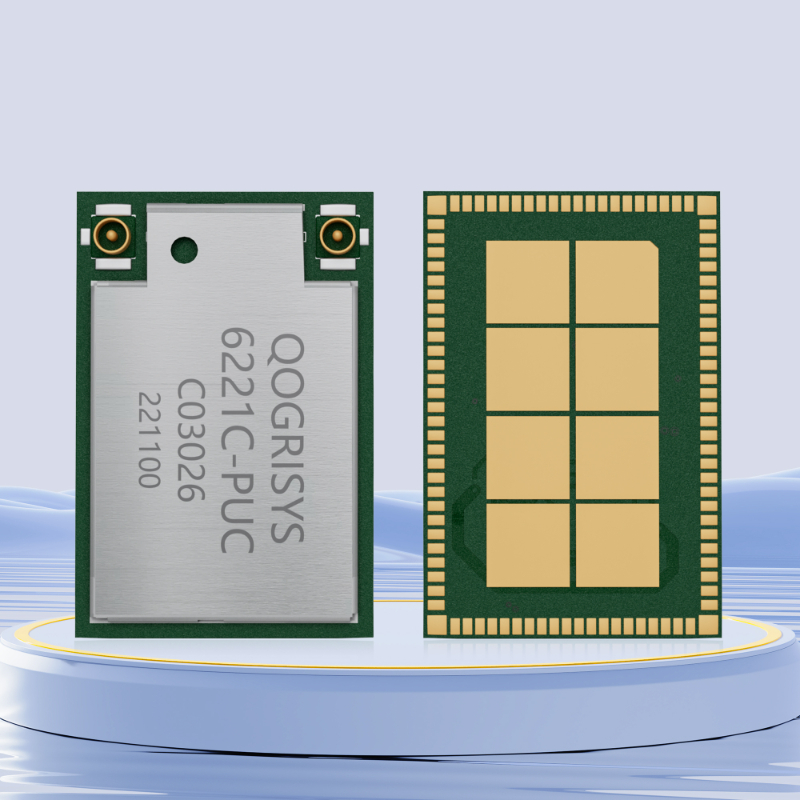

6221C-PUC is a highly-integrated IEEE 802.11 a/b/g/n/ac MAC/Baseband/RF WLAN single chip

  The integrated module provides PCIE interface for Wi-Fi

  The wireless module complies with IEEE 802.11 a/b/g/n/ac standard

  It can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN

  The integrated moduleprovides PCIE interface for Wi-Fi, USB / PCM interface for Bluetooth

  This compact module is a total solution for a combination of Wi-Fi + BT technologies

Application Scenario

  Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or2.4G/5G 802.11n WLAN

  Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

  Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PAHost Interface

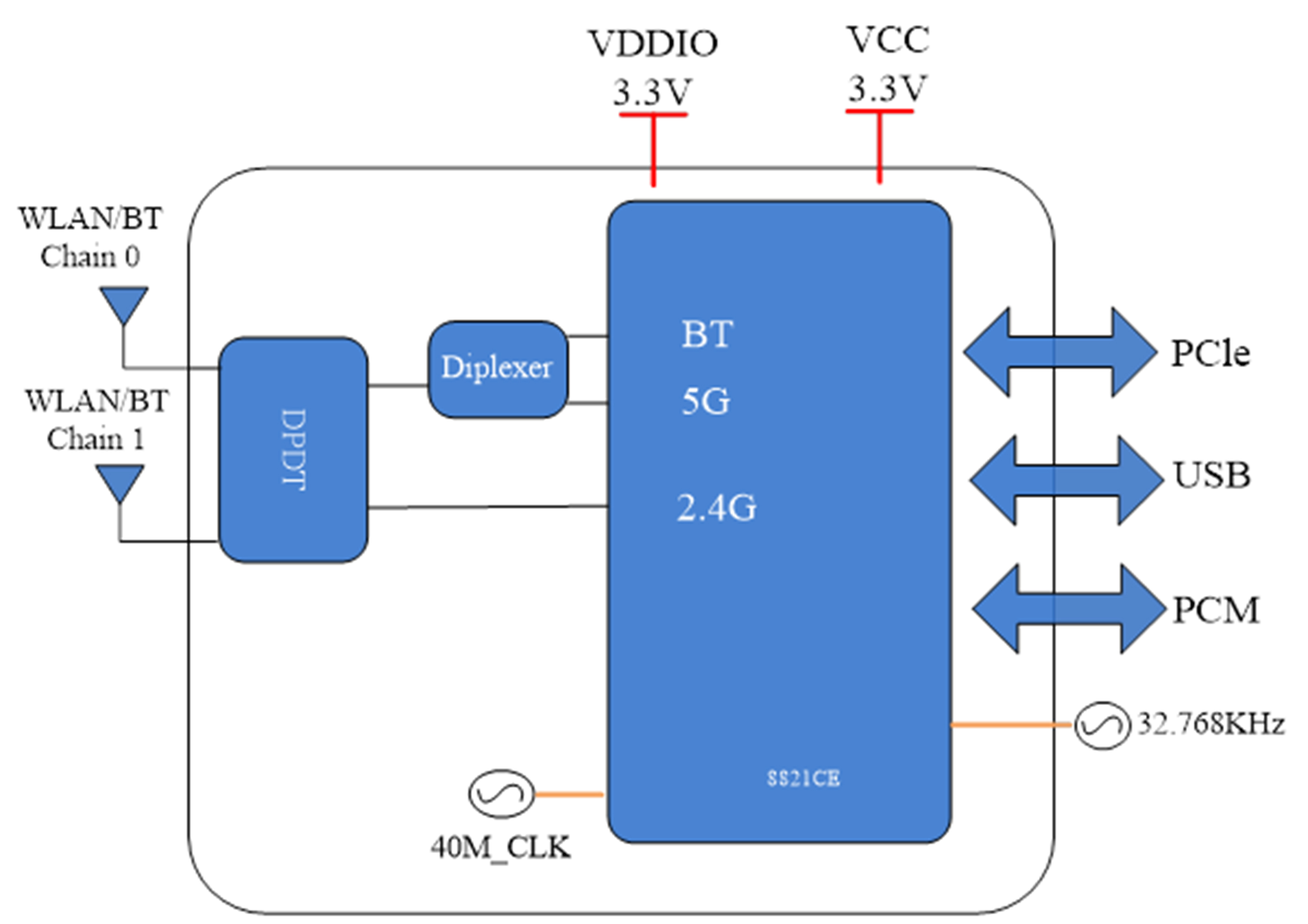

  Supports low power PCIE interface for WLAN and USB/PCM interface for BluetoothBluetooth Features

  Supports WLAN-Bluetooth coexistence

  Supports Bluetooth V5.0+HS, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhancedata rate

Application Scenario

Application Scenario

Application Scenario

Application Scenario
