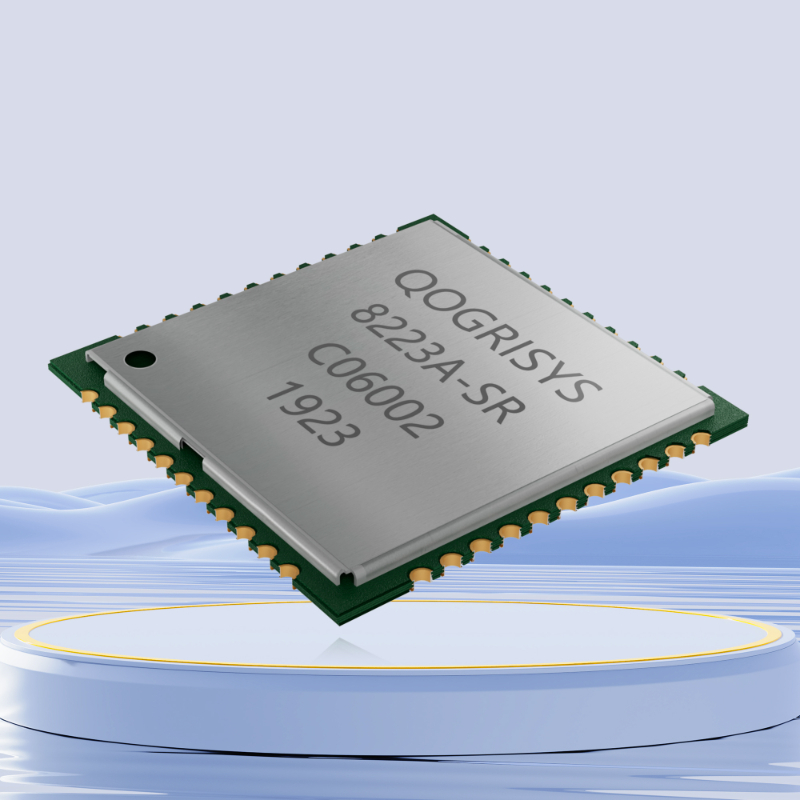

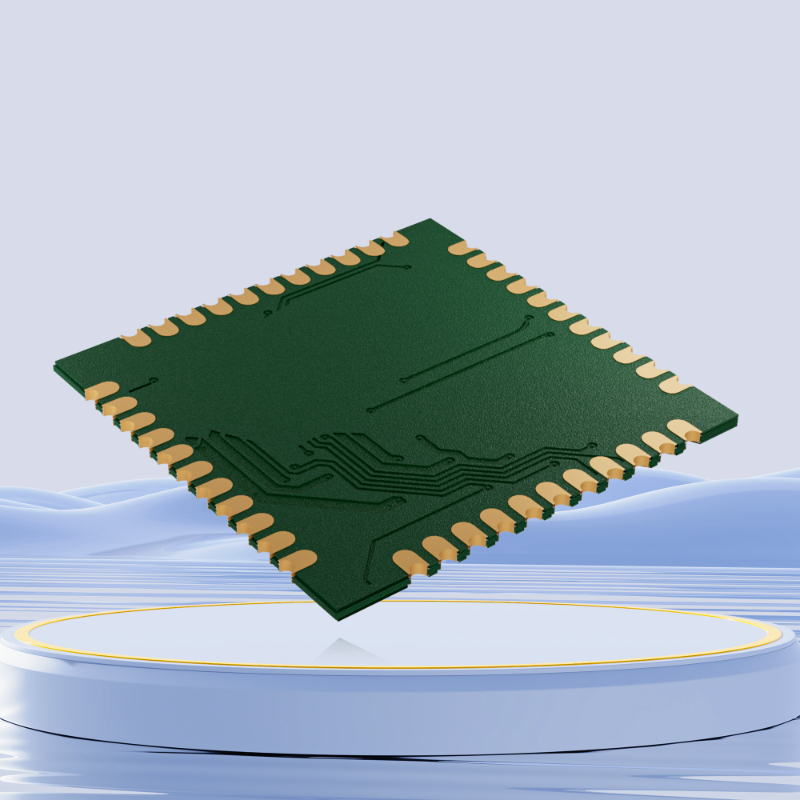

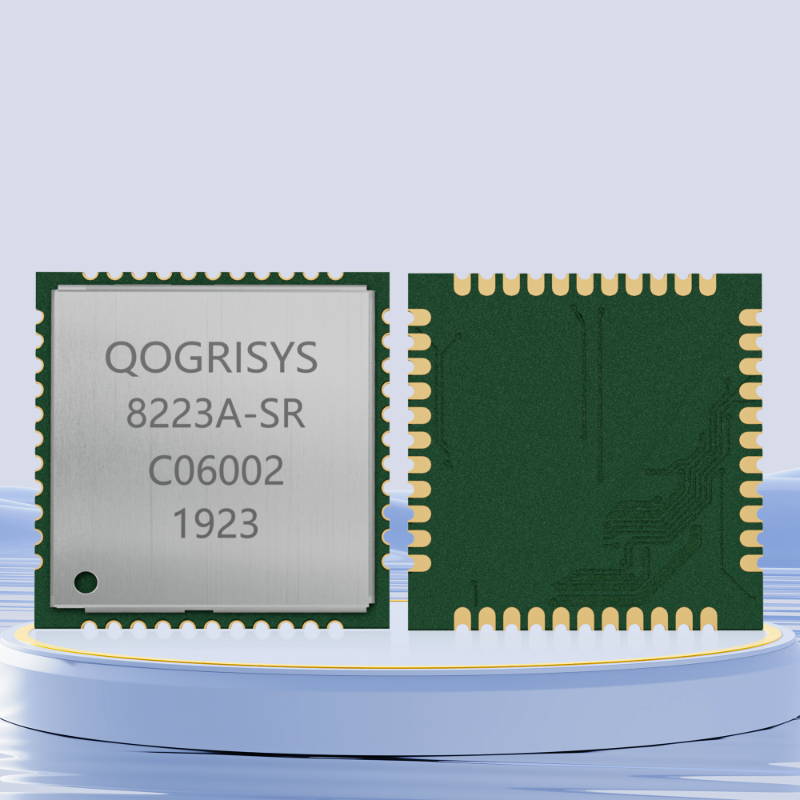

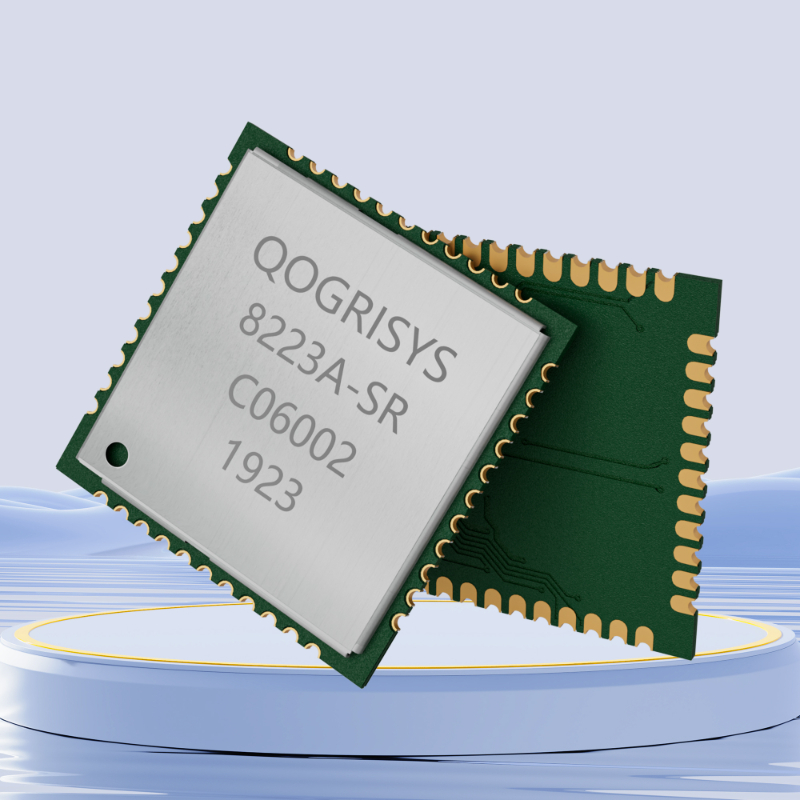

The module  has all of the Wi-Fi, Bluetooth functionalities

  The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications

  The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps

  The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for Bluetooth

  This compact module is a total solution for a combination of Wi-Fi + BT technologies

  The module is specifically developed for Smart phones and Portable devices

Application Scenario

  Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN

  Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

  Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth

  Supports Bluetooth V5.0, BLE and be backwards compatible with Bluetooth 1.2, 2.X+ enhance data rate

  Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA

  Supports WLAN-Bluetooth coexistence

Application Scenario

Application Scenario

Application Scenario

Application Scenario
