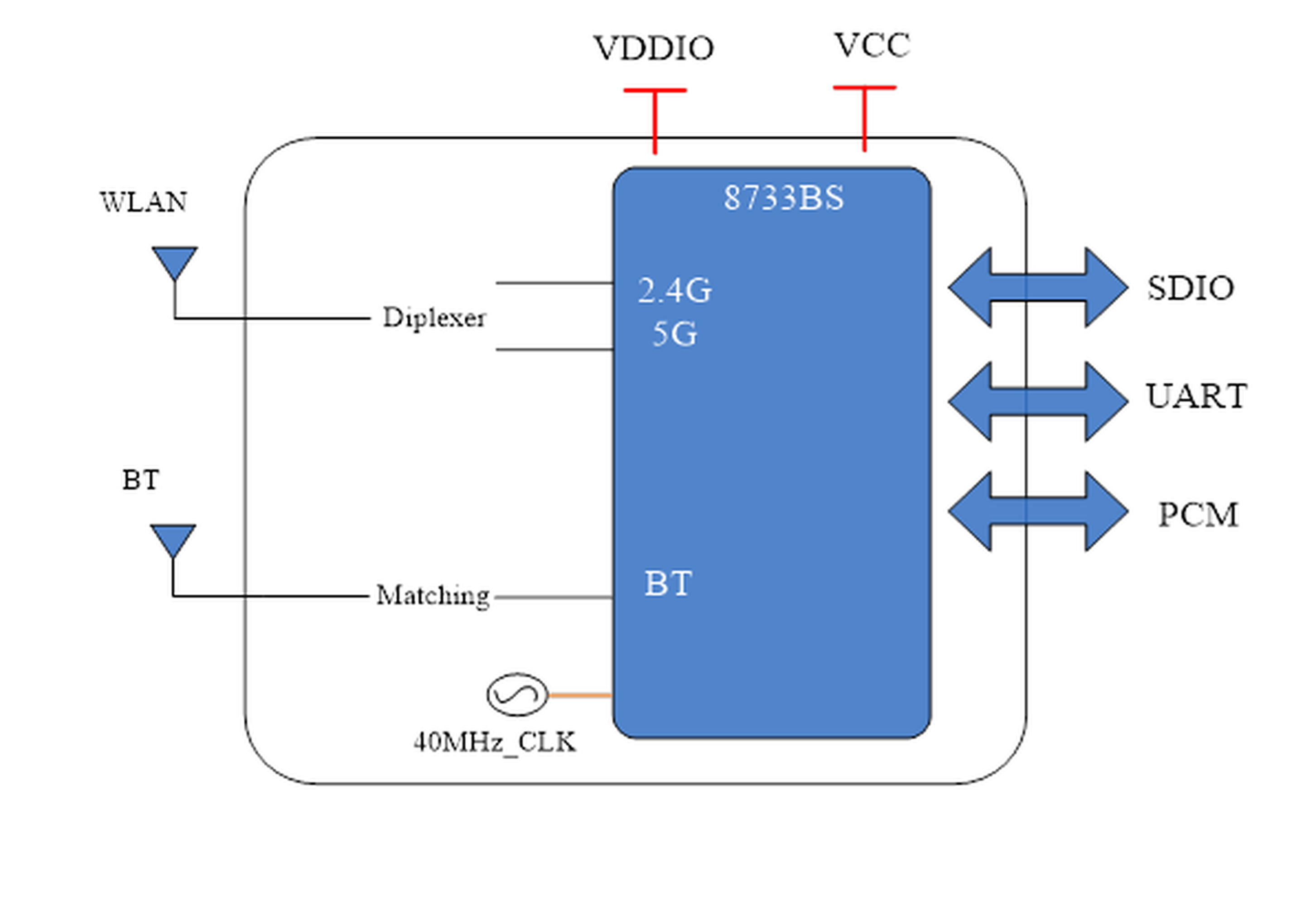

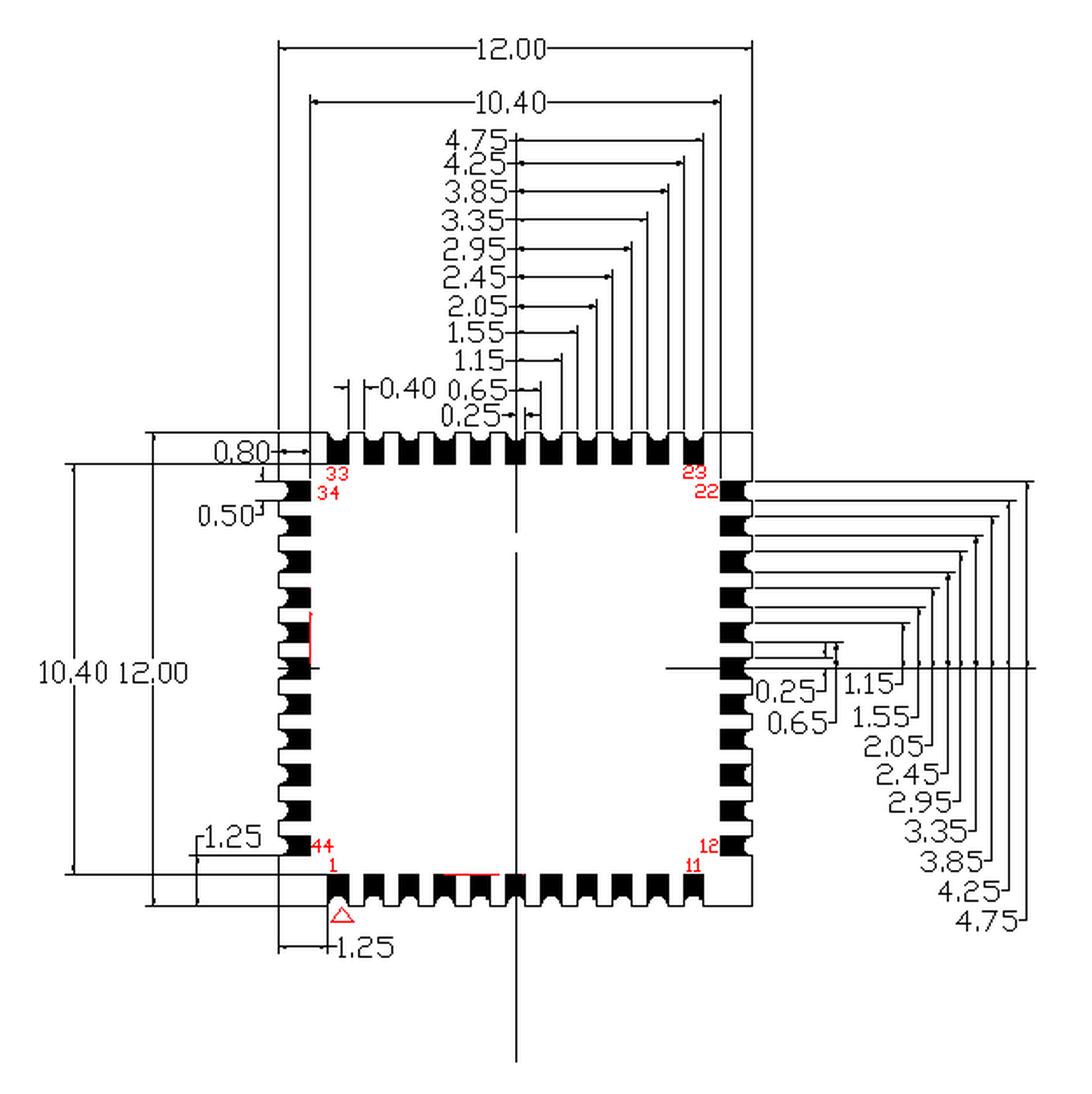

6233A-SRB is a small size and low profile of Wi-Fi + BT Combo module with LGA module, board size is 12*12mm

  It can be easily manufactured on SMT process and highly suitable for tablet PC, mobile device and consumer products

  It provides SDIO 2.0 interface for Wi-Fi to connect with host processor and high speed UART interface for BT5.2

  It also has a PCM interface for audio data transmission with direct link to external audio codec via BT controller

  The Wi-Fi throughput up to 150Mbps in theory by using 802.11n technology

Application Scenario

  Operate at 2.4G&5GHz frequency bands

  Enterprise level security which can apply WPA/WPA2/WPA3

  Wi-Fi 1T1R allow data rates supporting up to 150 Mbps PHY rates

  SDIO2.0 for Wi-Fi and UART for BT5.2

  PCM interface for audio data transmission via BT controller

  Support BLE4.0, BT5.2 dual mode
