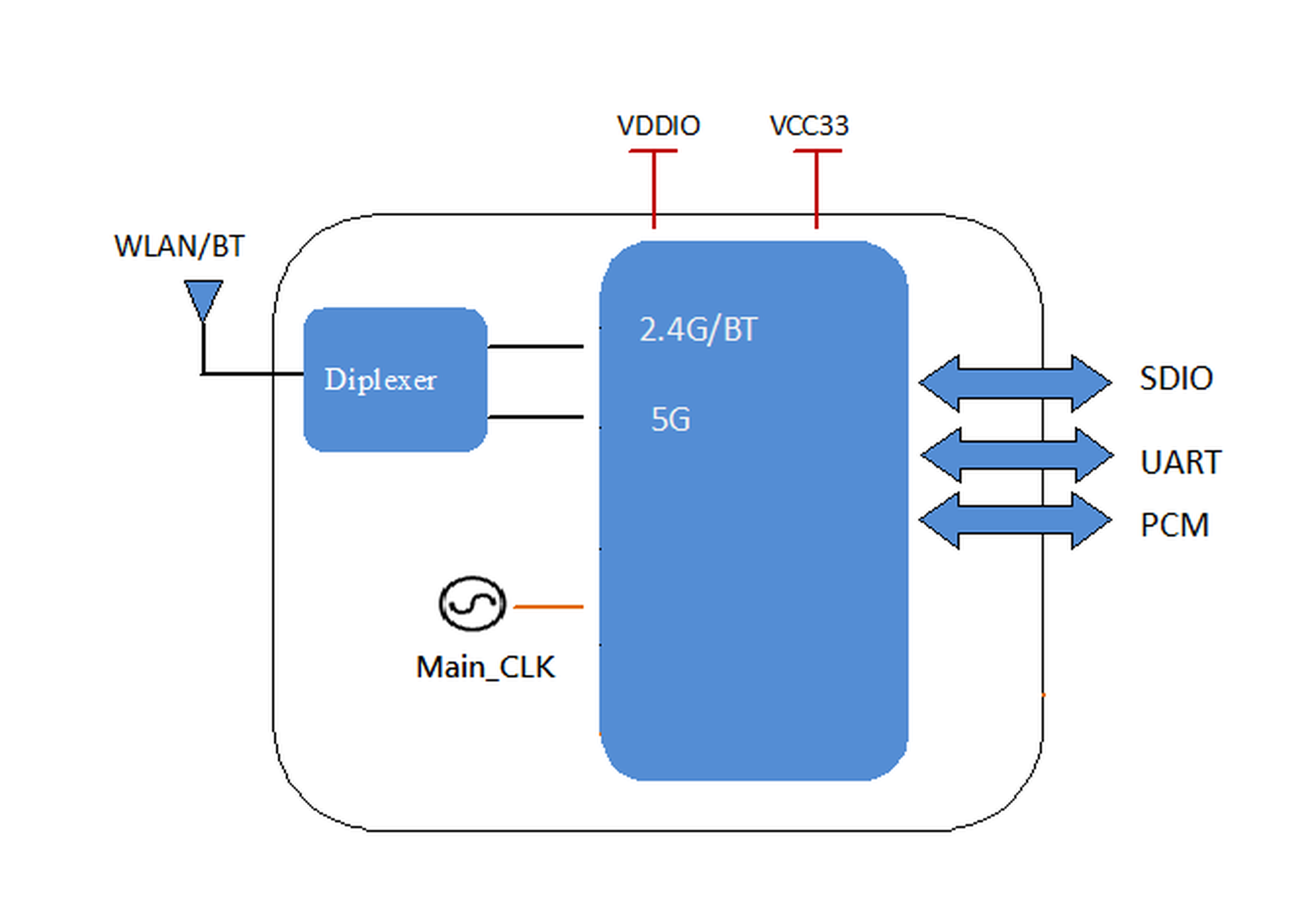

7221A-SRF is a highly integrated Wi-Fi 6 & BT 5.0 Combo module

  Supports 1-stream 802.11ax solution and external SDIO3.0 and HS-UART interfaces

  WLAN MAC with full support of Wi-Fi 6 Wave2

  Protocol final version, WLAN Baseband with 1T1R, and RF with high performance are integrated on one chip

  It is suitable for various fields with high reliability requirements

Application Scenario

  SDIO(SDIO 1.1/2.0/3.0 compliant) for WiFi

  Compatible with IEEE 802.11ax standard to provide wireless 600Mbps data rate

  Maximum support 1024QAM modulation, support LDPC, STBC

  Support 20/40MHzbandwidth in 2.4GHzand 20/40/80 in 5GHz band

  Security support for WFA WPA/WPA2/WPA3personal, WPS2.0, WAPI

  Bluetooth v5.0 with BLE (BT low energy)

Application Scenario

Application Scenario

Application Scenario

Application Scenario
