QOGRISYS NXP88W8987 5gwifi module 433mbps 802.11ac wifi bluetooth module sdio wifi modules

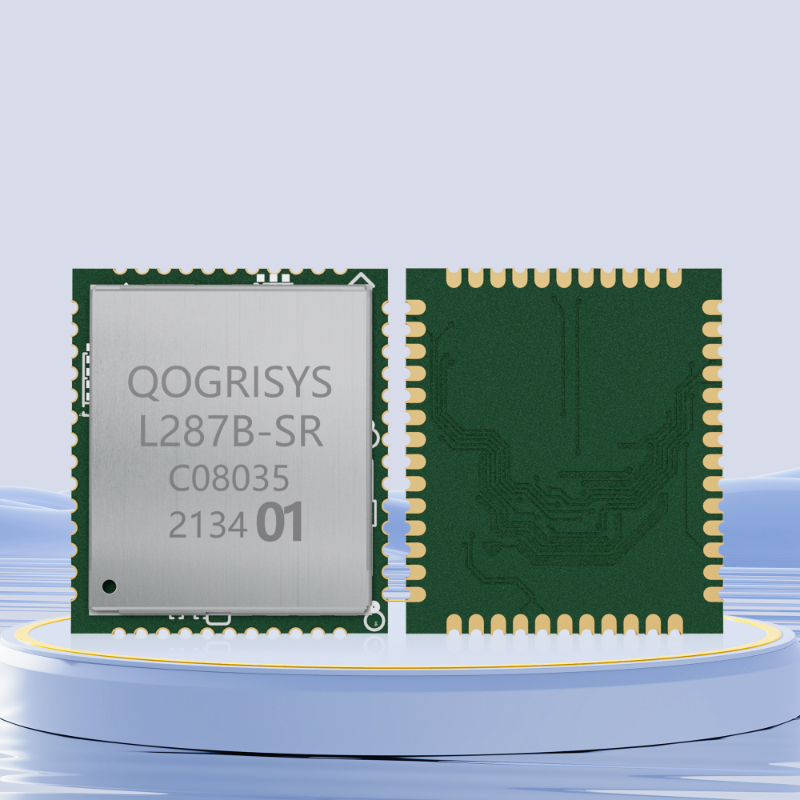

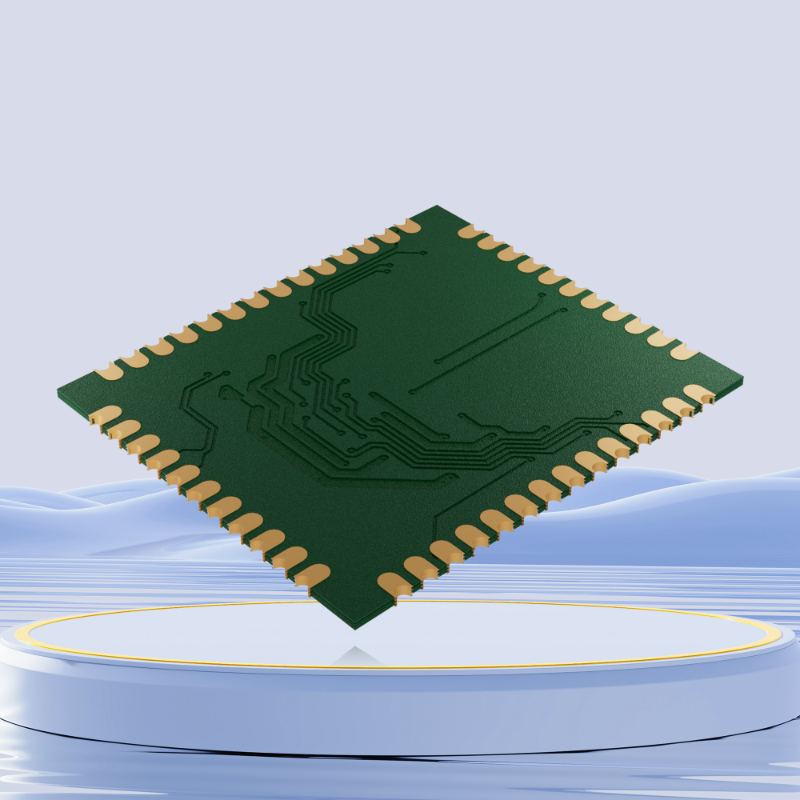

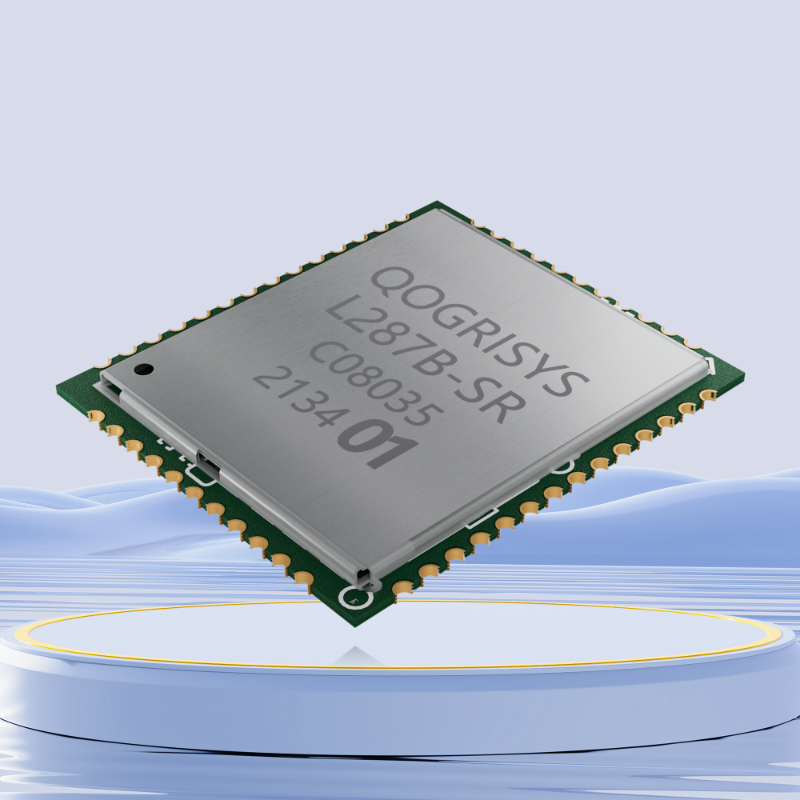

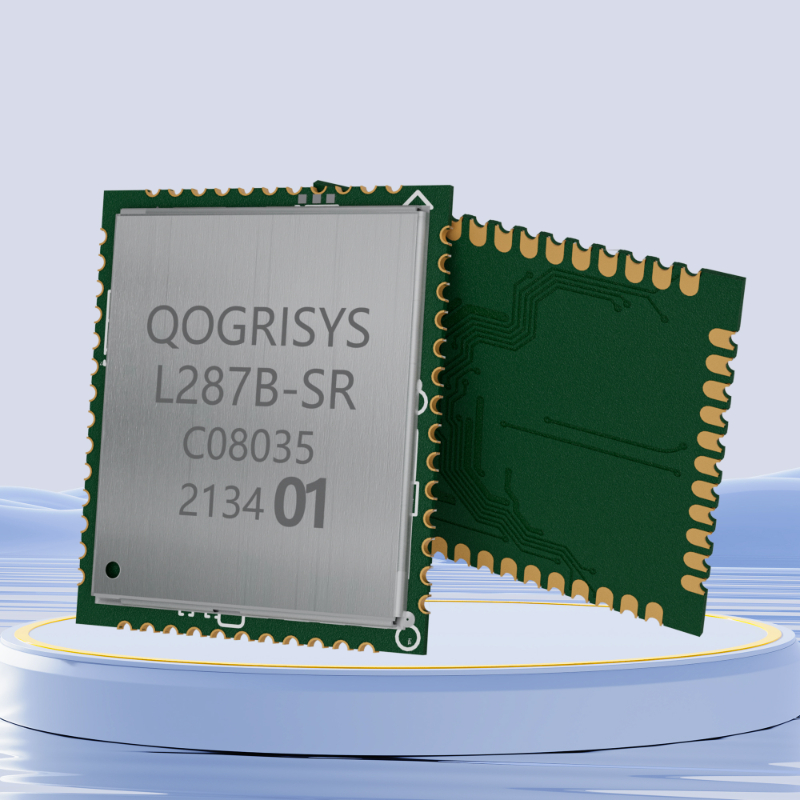

L287B-SR

QOGRISYS NXP88W8987 5gwifi module 433mbps 802.11ac wifi bluetooth module sdio wifi modules

Protocol：802.11ac
Size：13*15mm
Rate：433Mbps
Frequency Band：2.4/5GHz
Interface：SDIO3.0

L287B-SR has dual-band Wi-Fi and Bluetooth functionalities

It is based on NXP 88W8987 chipset

The module provides SDIO3.0 interface for Wi-Fi and HS-UART/PCM for Bluetooth

L287B-SR can achieve up to a speed of 433.3Mbps with single stream 802.11ac WLAN connection

Application Scenario

NXP 88W8987 inside

CMOS MAC, Baseband PHY and RF in a single chip for IEEE 802.11 a/b/g/n/ac

Maximum rate 433Mbps in 80MHz bandwidth

SDIO3.0 interface for WLAN

Support Bluetooth V5.0 features

HS-UART and PCM interface for BT

Application Scenario
