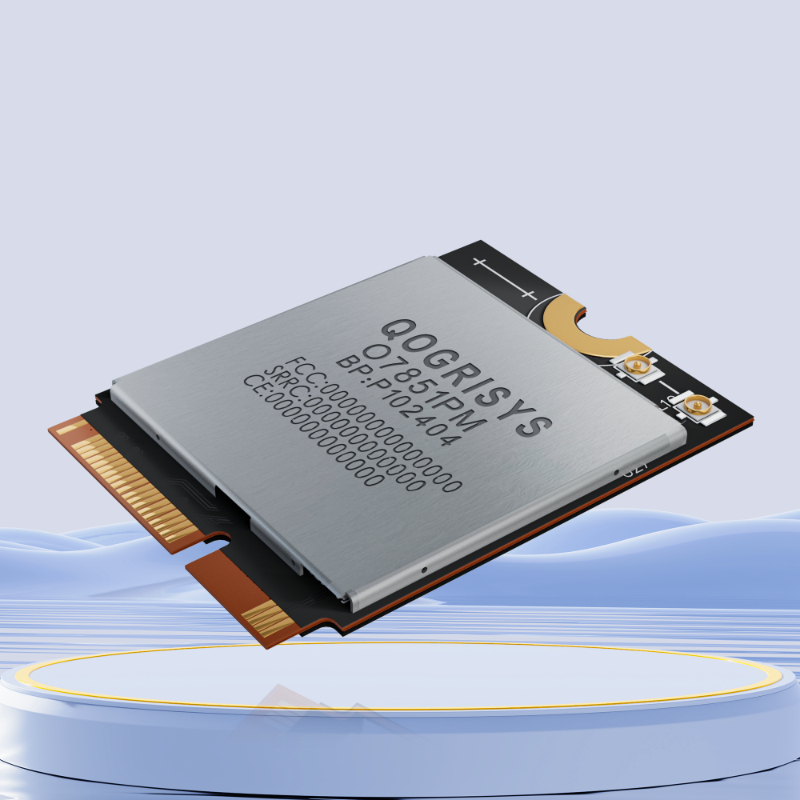

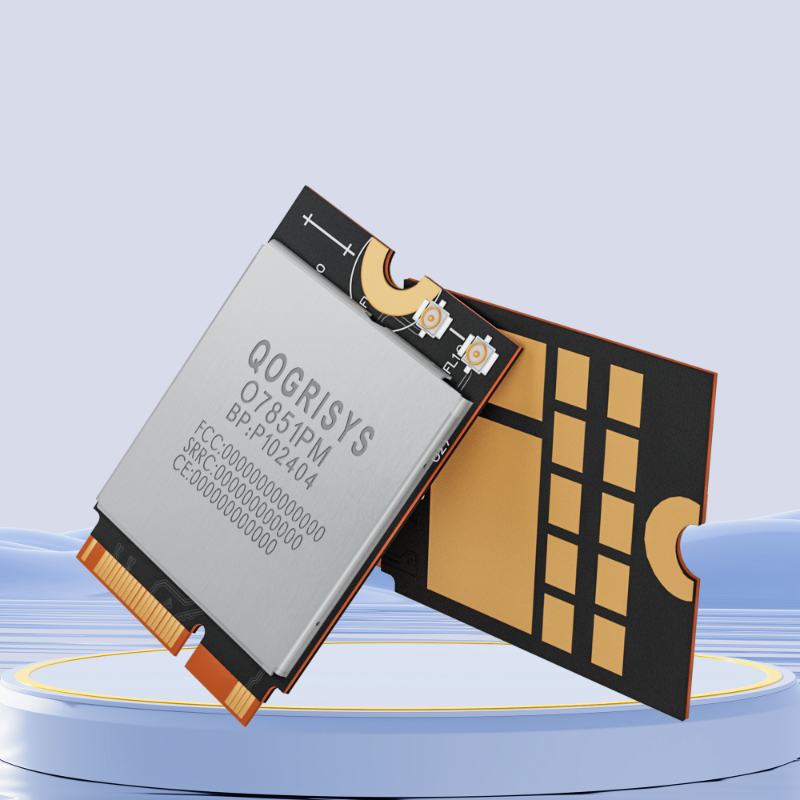

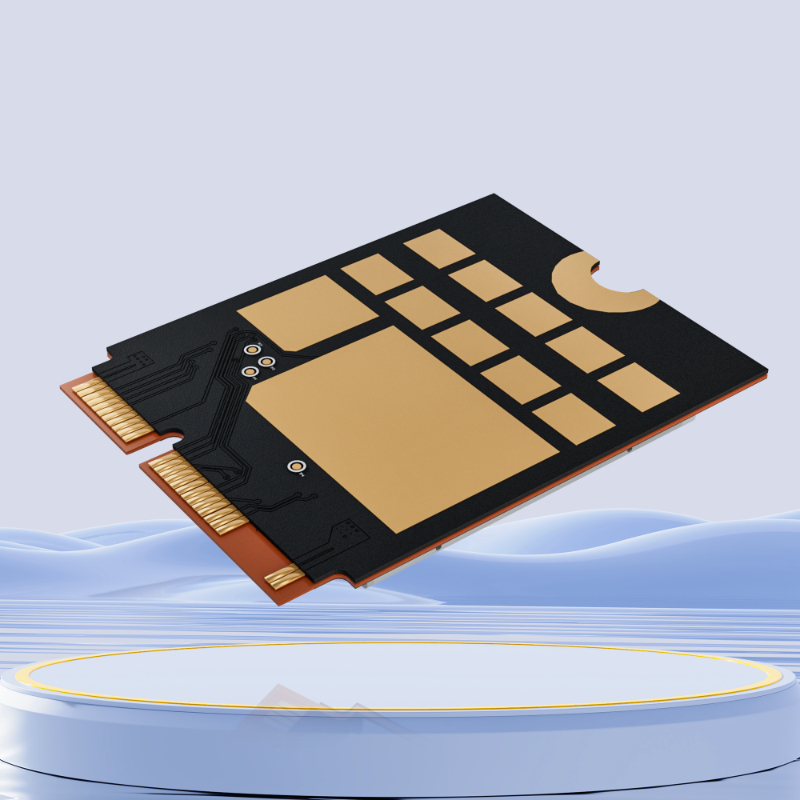

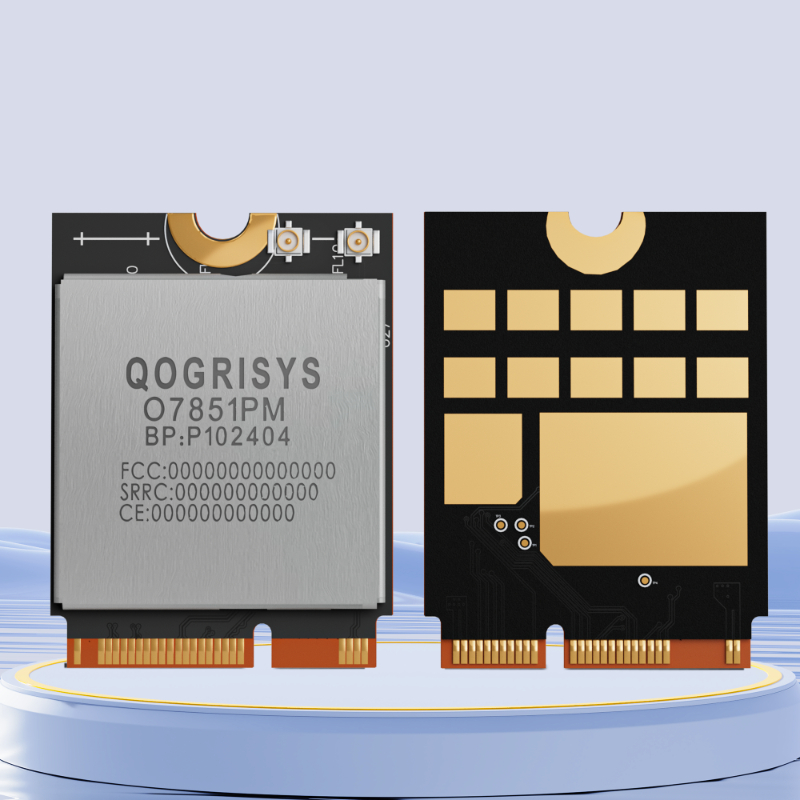

The O7851PM wifi module is supporting Wi-Fi 7 andBluetooth (BT) 5.4

  The O7851PM supports simultaneous operation on 2.4 GHz +5 GHz, 2.4GHz + 6 GHz and 5 GHz + 6 GHz

  The wifi 7 module complies with IEEE 802.11a/b/g/n/ac/ax/be 2x2 MIMO standard and it can achieve up to a speed of 5.8Gbps

  The wifi bluetooth module provides M.2 PCIeinterfacefor Wi-Fi, UART/PCM or USB interface for Bluetooth

Application Scenario

  Support 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO)

  Support tri-band 2.4 GHz/5 GHz/6 GHz Support up to 4096 QAM modulation at each band

  Channel bandwidth up to 40 MHz at 2.4 GHz, up to 160 MHz at 5 GHz and up to 320MHz at 6 GHz

  Dual Band Simultaneous (DBS) up to 2.4 GHz 2x2 40 MHz + 5 GHz 2x2 160 MHz / 6GHz 2x2 160 MHz

  High Band Simultaneous (HBS) up to 5 GHz/6 GHz 2x2 160 MHz + 5 GHz/6 GHz 2x2160 MHz

  Up to 5.8 Gbps data rate (2x2 5 GHz 160 MHz + 2x2 6 GHz 160 MHz with 4K QAMmodulation)

  Seamless antenna sharing with Bluetooth, LTE, LTE-U and 5G NR

  Dynamic Frequency Selection (DFS) radar detection

  Low-power PCIe (with L1 substate) interface
