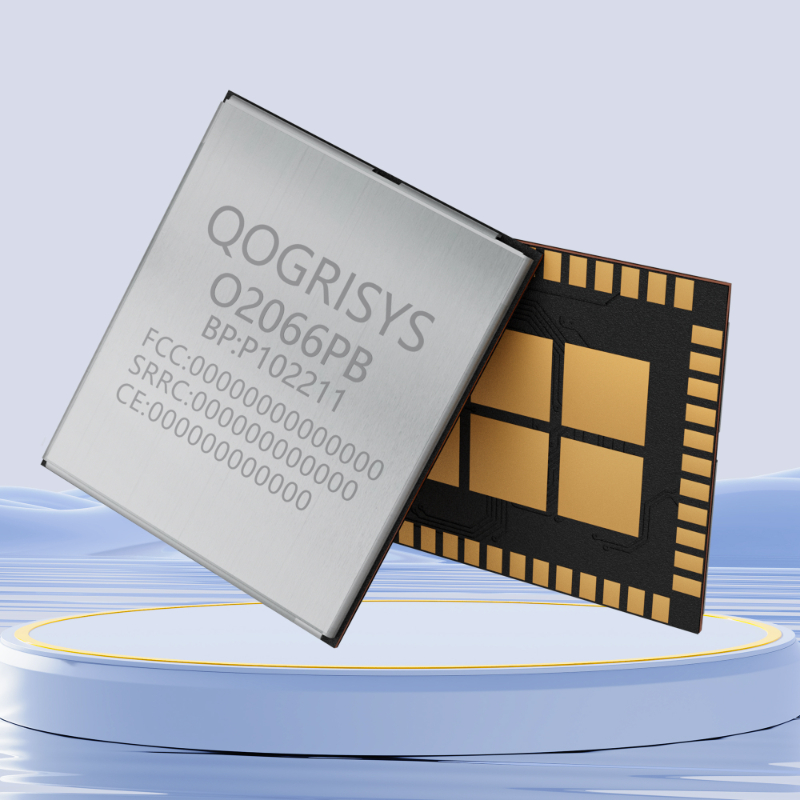

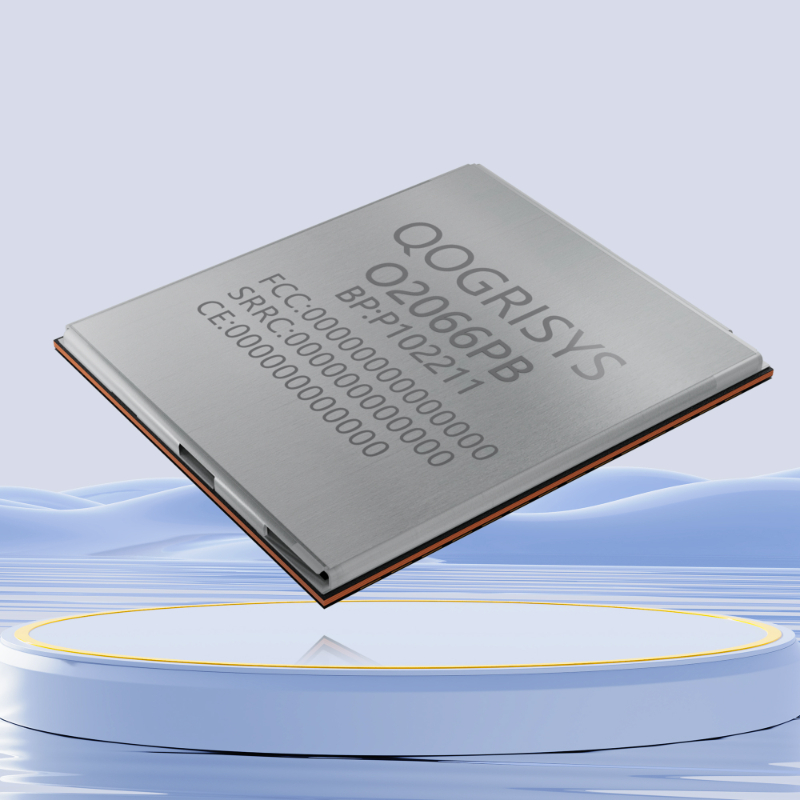

The O2066PB device is a highly integrated module supporting 802.11ax Wi-Fi and Bluetooth5.2

  The O2066PB device supporting simultaneous operation on 2.4 GHz and 5 GHz,or 6 GHz, also known as Dual Band Simultaneous (DBS)

  The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax 2x2 MIMO standard and itcan achieve up to a speed of 2975.6Mbps

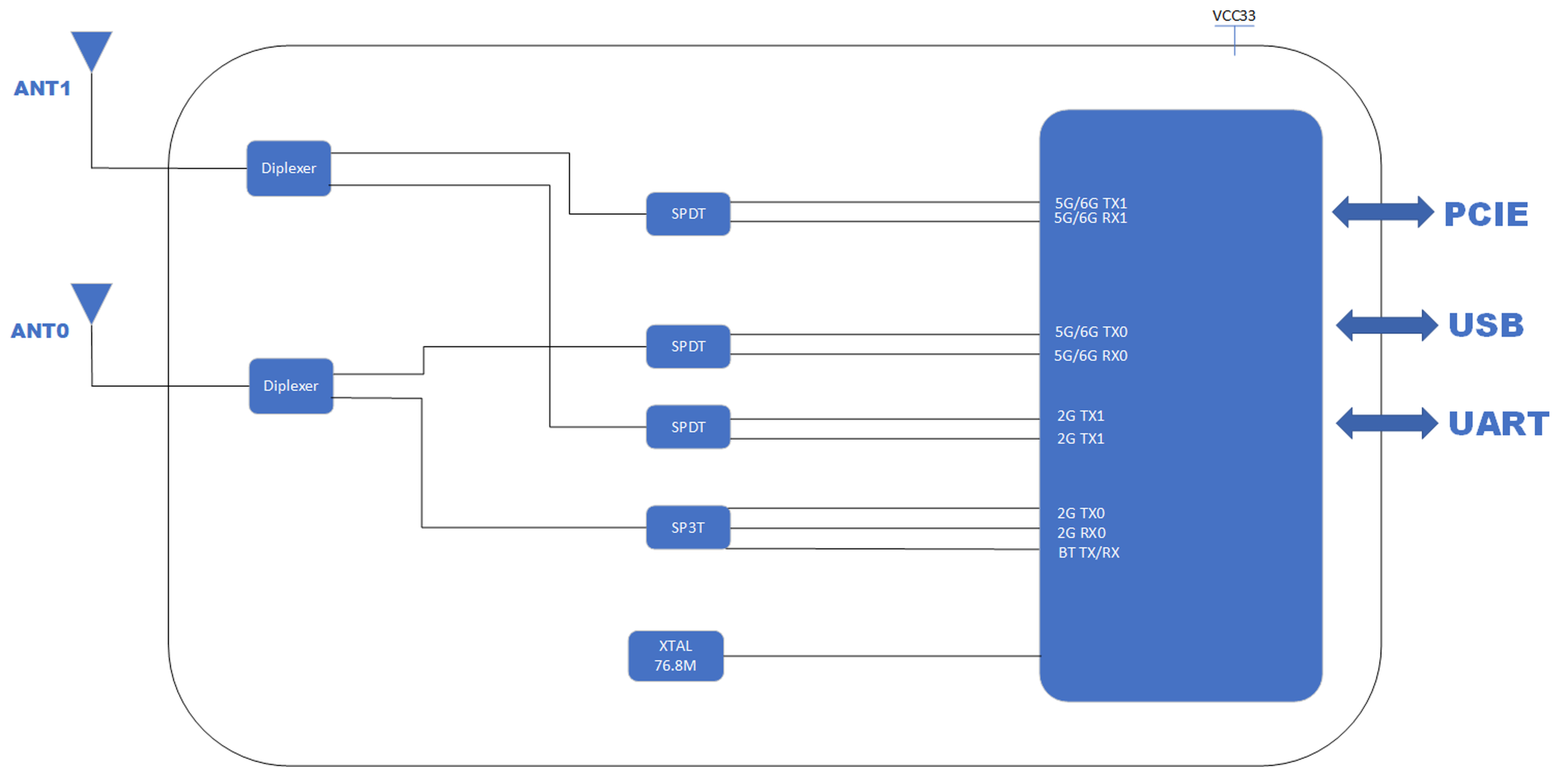

  The integrated module provides PCIe interface for Wi-Fi, UART/PCM interface for Bluetooth

Application Scenario

  Supports 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO)

  Dual Band Simultaneous (DBS), up to 3 Gbps data rate (5/6G 2x2 160MHz 11ax +2.4G 2x2 40MHz 11ax DB)

  Tri-band 2.4 GHz/5 GHz/6 GHz support

  20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz/160 MHz channel bandwidth for 5 GHz/6 GHz

  Low-power PCIe (with L1 substate) interface

  Supports 2 Mbps Bluetooth Low Energy (BLE), BLE Long Range

  Split ACL support for A2DP true stereo (earbuds)

  Backward-compatible with previous Bluetooth standards

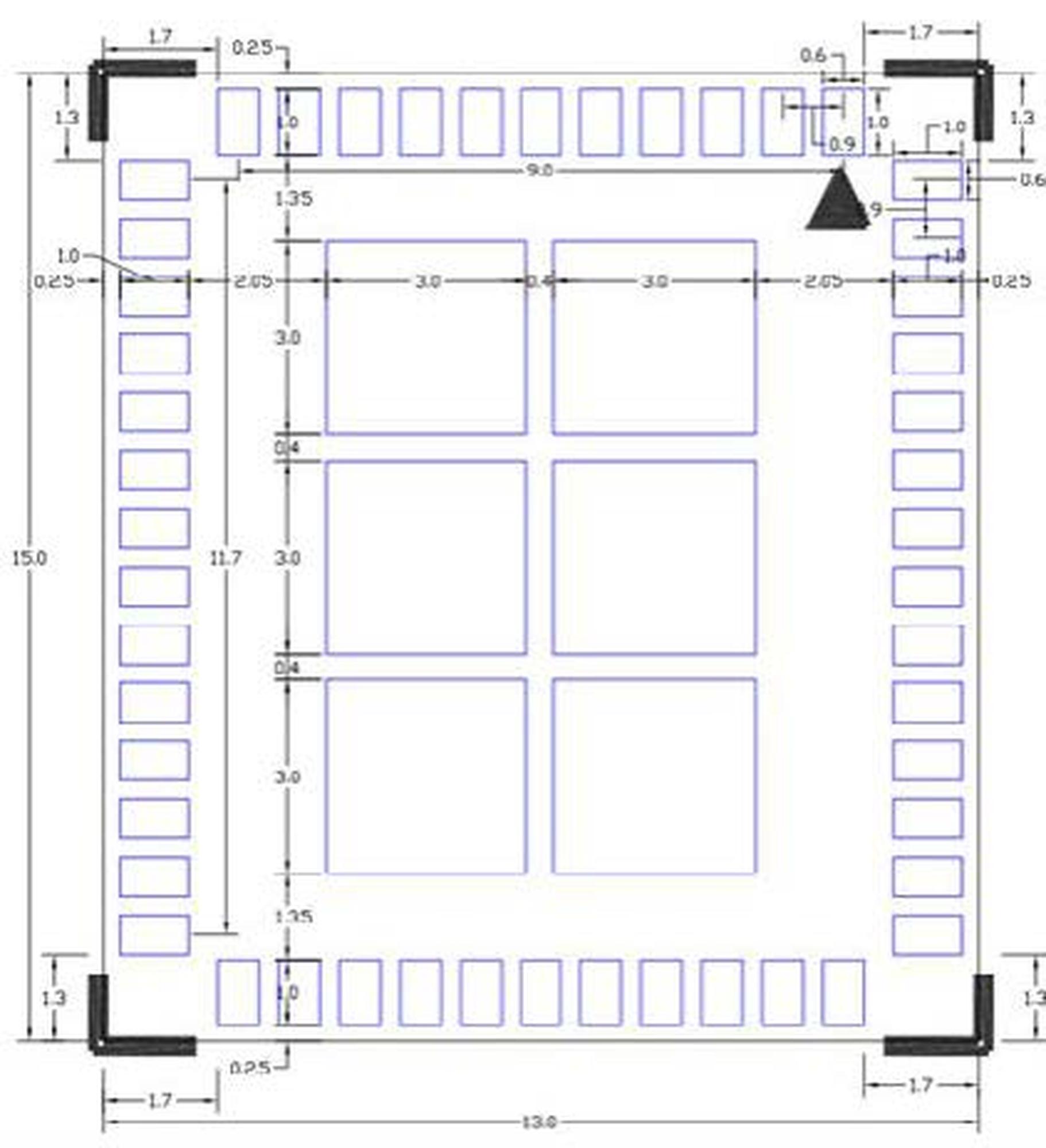

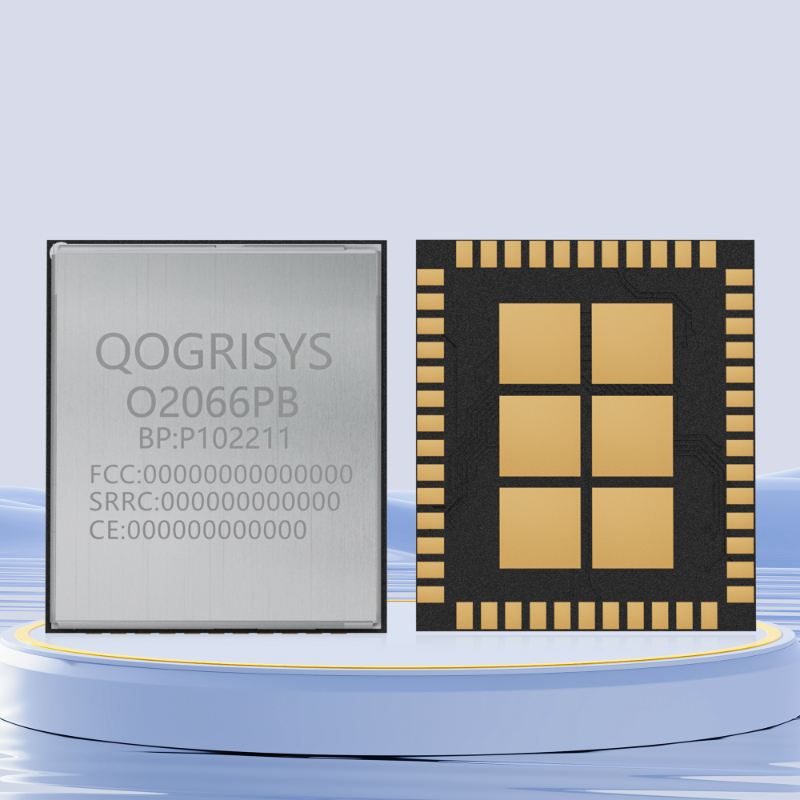

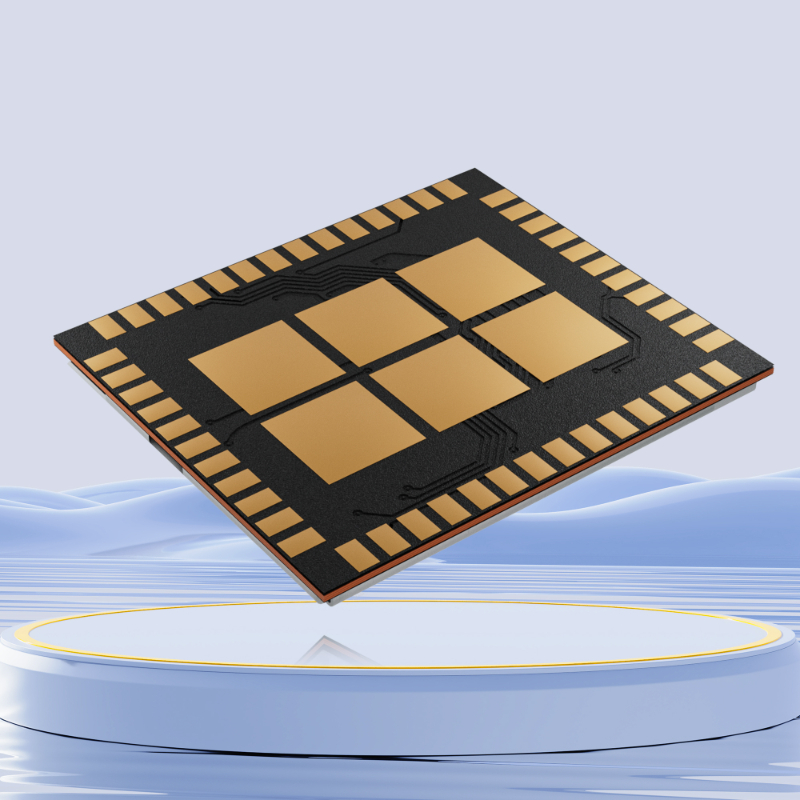

  Small SMT LGA package for placement
