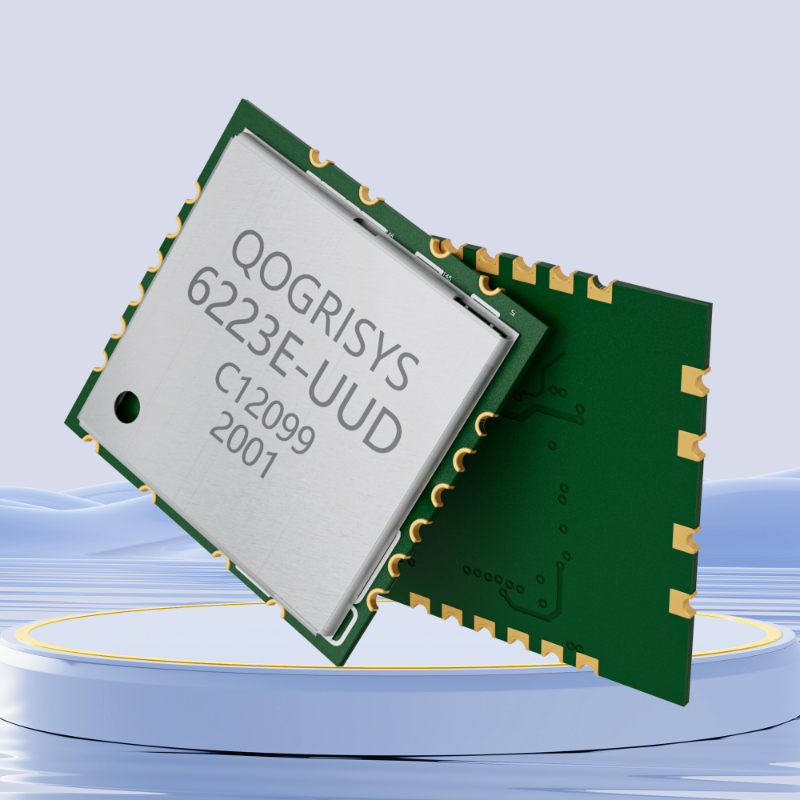

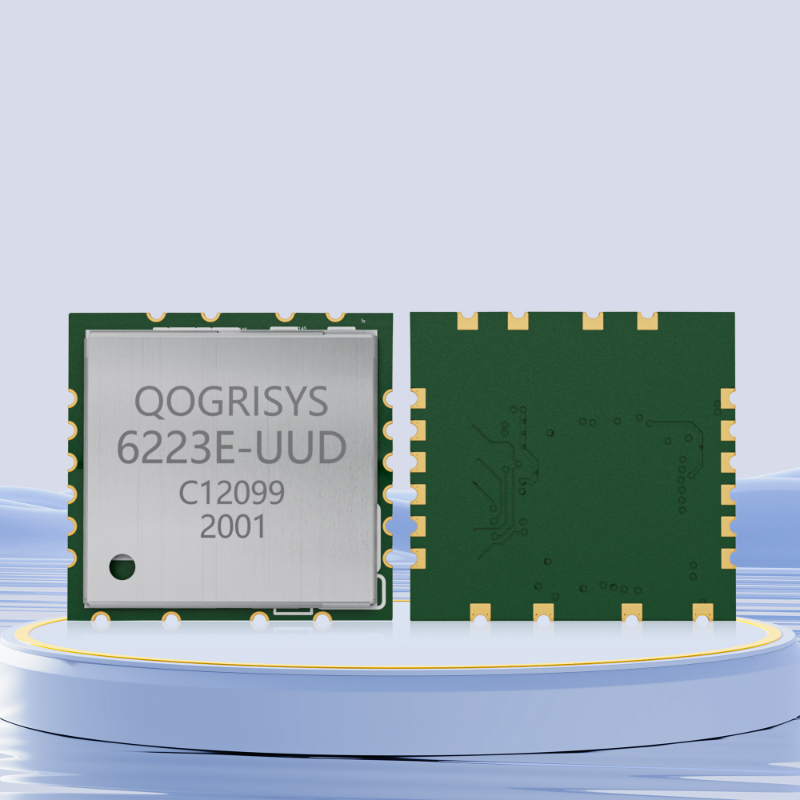

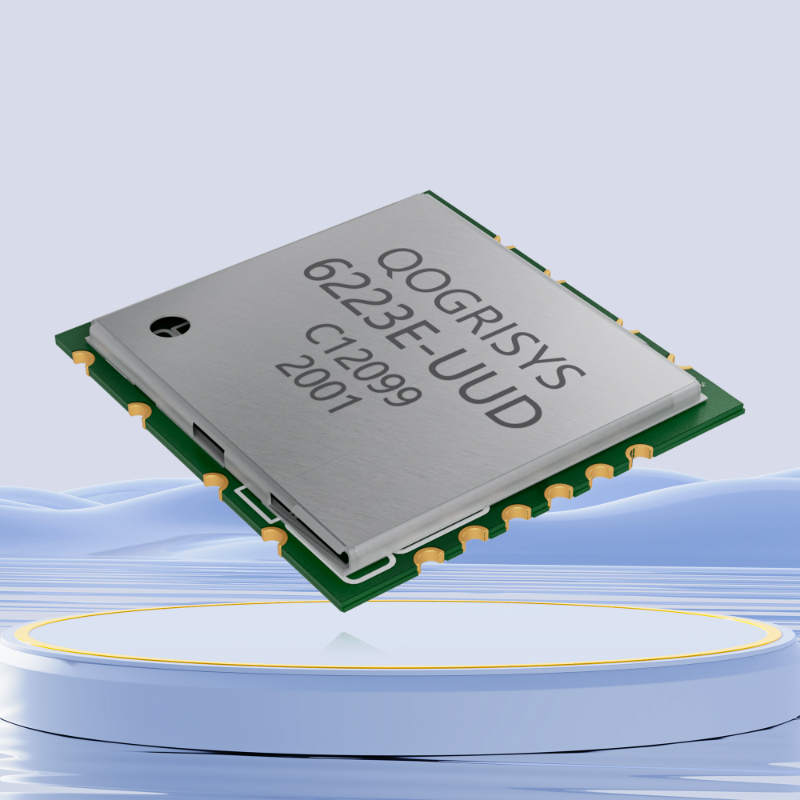

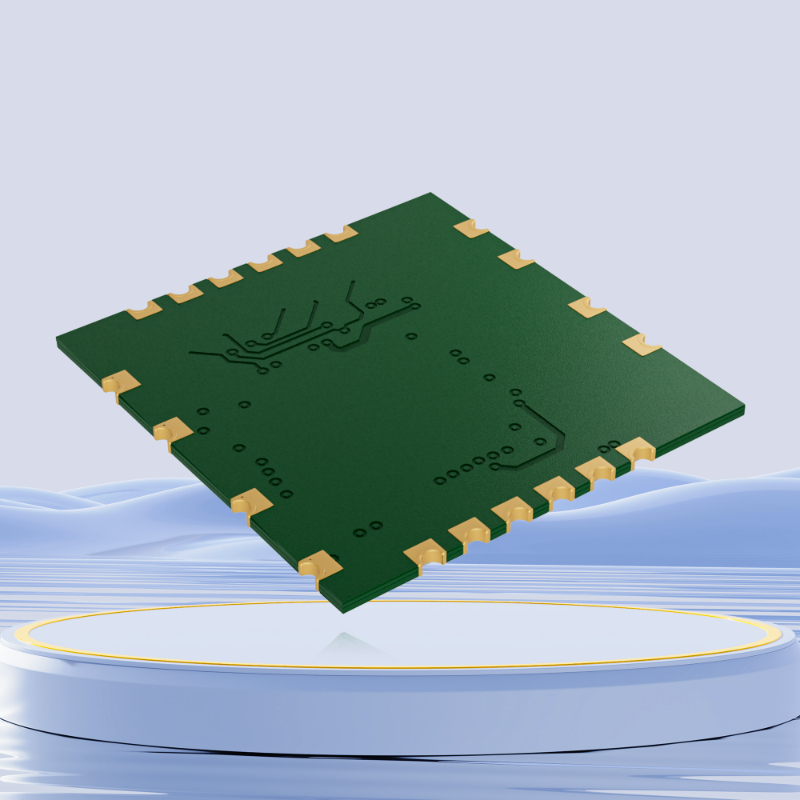

QOGRISYS 6223E-UUD 2.4gwifi module 150mbps 802.11n wifi bluetooth module usb wifi modules

6223E-UUD

QOGRISYS 6223E-UUD 2.4gwifi module 150mbps 802.11n wifi bluetooth module usb wifi modules

Protocol：802.11b/g/n
Size：12.2*13mm
Rate：150Mbps
Frequency Band：2.4GHz
Interface：USB2.0

Introduction

Functions

Dimension

Diagram

Pin Outline

The 6223E-UUD module is a highly integrated single-chip 802.11b/g/n 1T1R WLAN

The 6223E-UUD module integrated Bluetooth Smart Ready single chip with USB 2.0 multi-function

The 6223E-UUD module provides simple legacy and 20MHz/40MHz co-existence mechanisms to ensure backward and network compatibility

Bluetooth can support BT2.1+EDR/BT3.0 and BT4.2

Application Scenario

802.11b/g/n 1T1R WLAN and Bluetooth single chip

Complies with USB2.0 for WLAN and BT controller

Fully Qualified for Bluetooth 2.1+EDR specification including both 2Mbps and 3Mbps

Fully qualified for Bluetooth 4.2 Dual mode

Enterprise level security which can apply WPA/WPA2 certification for Wi-Fi

Application Scenario
