The 6252M-PUB module is a highly integrated single-chip that support 2-stream 802. 11ax solutions

  The 6252M-PUB module support Multi-user MIMO (Multiple-Input, Multiple-Output)

  The 6252M-PUB module support Wireless LAN (WLAN) PCI Express network interface controller

  The 6252M-PUB module with integrated Bluetooth 5.2 USB interface controller

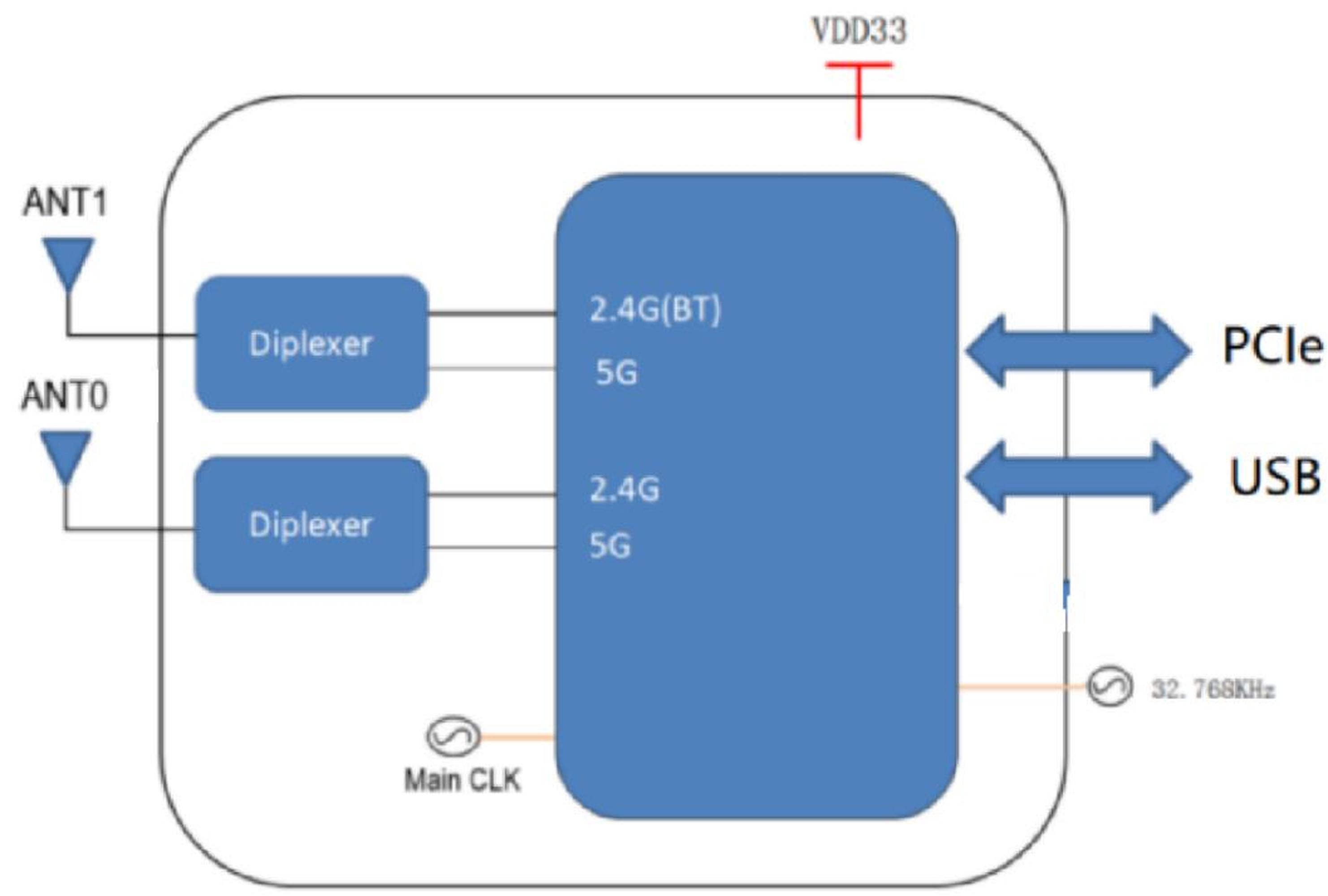

  It combines a WLAN MAC, a 2T2R-capable WLAN baseband, and RF in a single chip

  The 6252M-PUB module provides a complete solution fora high-performance integrated wireless and Bluetooth device

Application Scenario

  IEEE 802.11a/b/g/n/ac/ax compatible WLAN

  Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz

  Supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO

  Complete 802.11n MIMO solution for 2.4GHz and 5GHz band

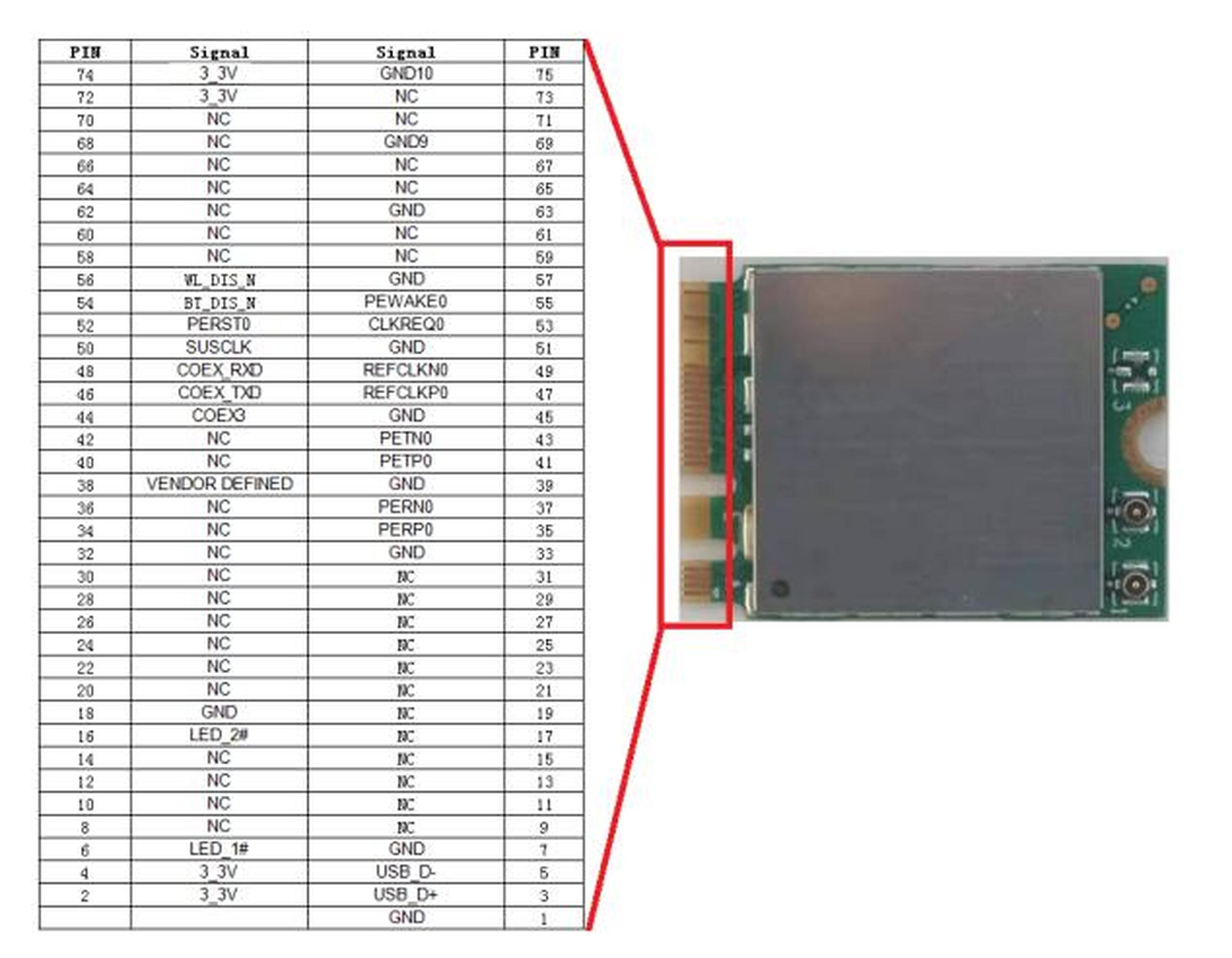

  Supports low power PCIe(Base Specification Revision 1.1) interface for WLAN and USB(2.0 FS-mode)

  Supports Bluetooth 5.2 system

  Dual Mode support: Simultaneous LE and BR/EDR

  Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles

  Supports Bluetooth for class1, class2 and class3 power level transmissions without requiring an external PA
