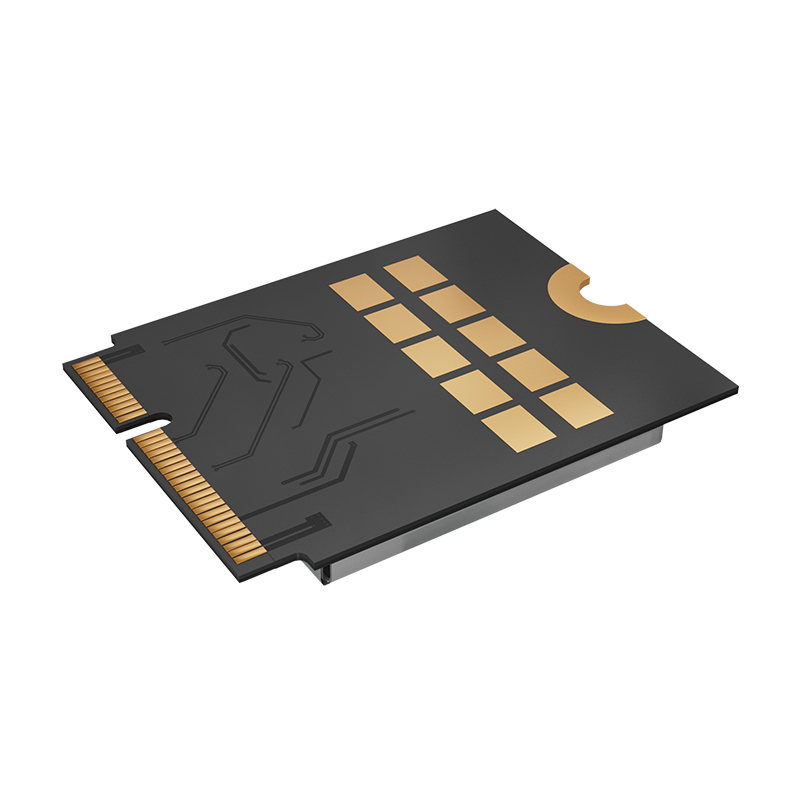

QOGRISYS O2072PM wifi modules Ultra-Fast 5.8 Gbps Wi-Fi 7 &amp;amp;amp;amp;amp;amp;amp; Bluetooth 6.0 Combo Module based on qualcomm chip QCC2072 modules

O2072PM

QOGRISYS O2072PM wifi modules Ultra-Fast 5.8 Gbps Wi-Fi 7 & Bluetooth 6.0 Combo Module based on qualcomm chip QCC2072 modules

Protocol：802.11be
Size：22*30mm
Rate：5.8Gbps
Frequency Band：2.4/5/6GHz
Interface：M.2 PCIe

Introduction

Functions

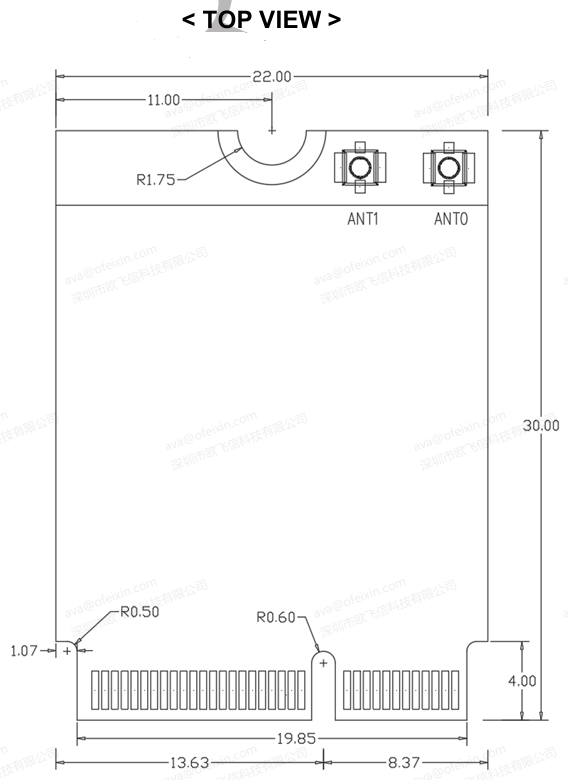

Dimension

Diagram

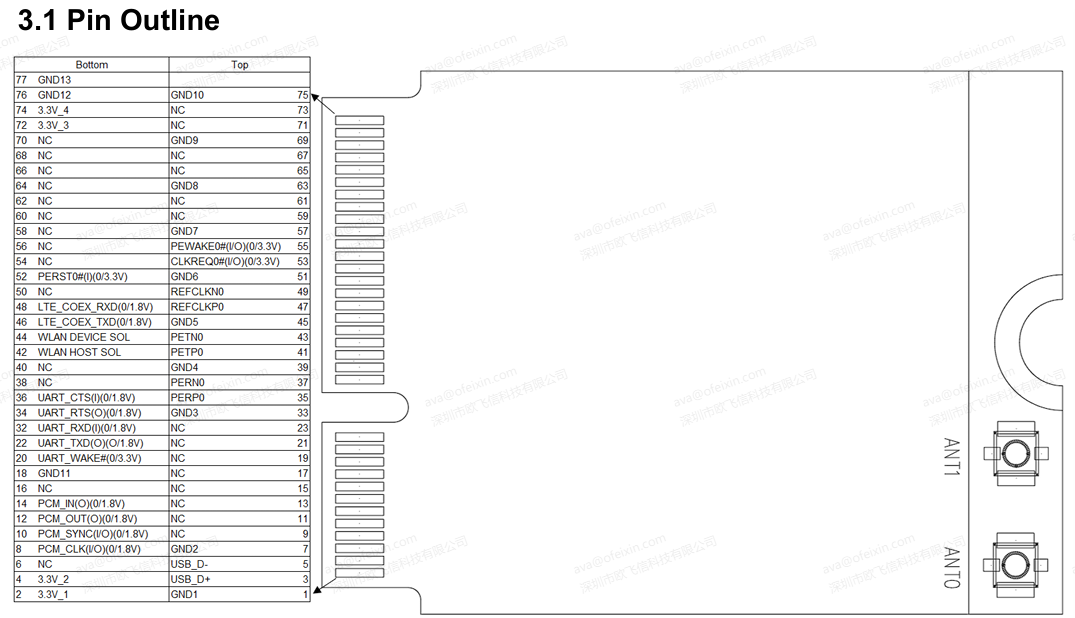

Pin Outline

O2072PM supports Wi-Fi 7 and Bluetooth 6.0

O2072PM supports AP/AP+STA/P2P/Monitor etc modes

O2072PM supports IEEE 802.11 a/b/g/n/ac/ax/be 2x2 MIMO standard and it
can achieve up to a speed of 5.8Gbps

O2072PM provides PCIe interface for Wi-Fi, UART/PCM or USB interface for Bluetooth

Application Scenario

Supports 320 MHz enhanced multilink single radio (MLSR and eMLSR)

Support 2x2 Multi-User Multiple-Input Multiple-Output (MU-MIMO)

Channel bandwidth up to 40 MHz at 2.4 GHz, up to 160 MHz at 5 GHz and up to 320
MHz at 6 GHz

Supports up to 5.8 Gbps peak PHY rate with 4K QAM, MCS13,and 2x2 configuration

Auxiliary radio for reduced listen power consumption and lower latency scanning

Supports 802.11az Wi-Fi ranging

Seamless antenna sharing with Bluetooth

Dynamic Frequency Selection (DFS) radar detection

Supports class 1 and class 2 power-level transmissions without requiring an external PA (power amplifier)
