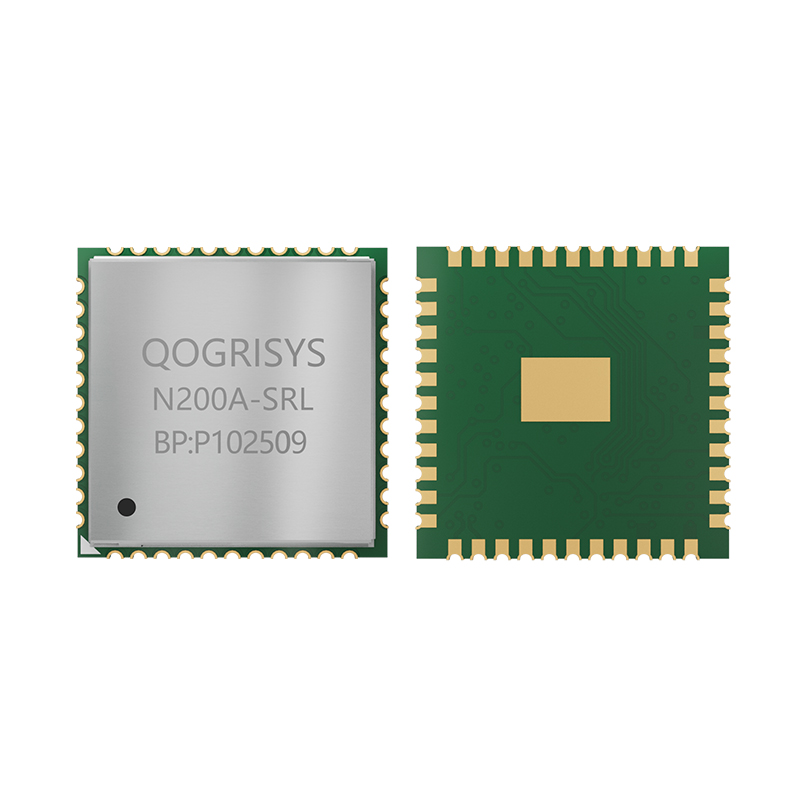

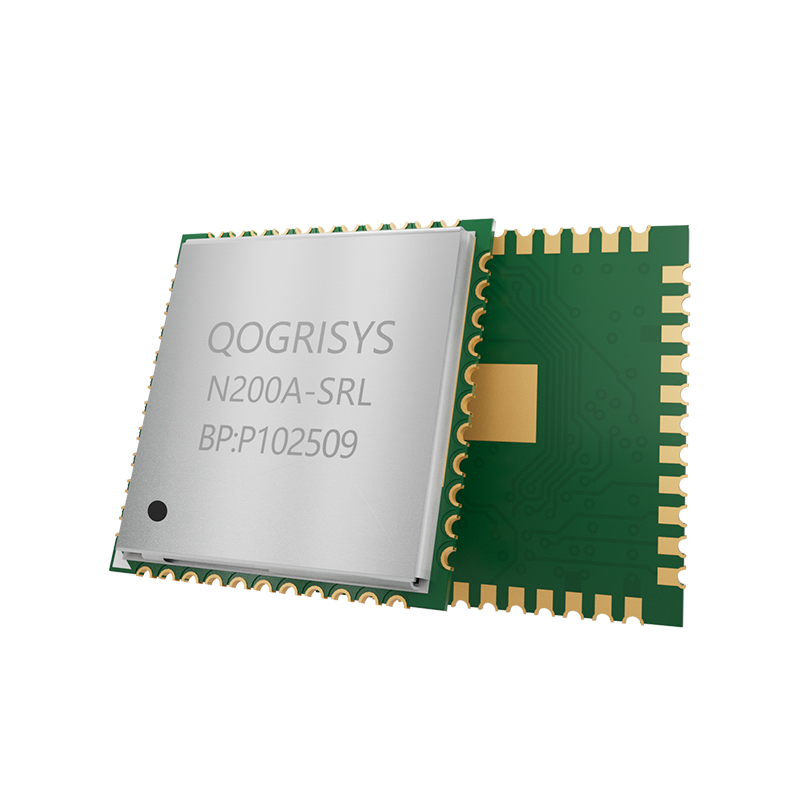

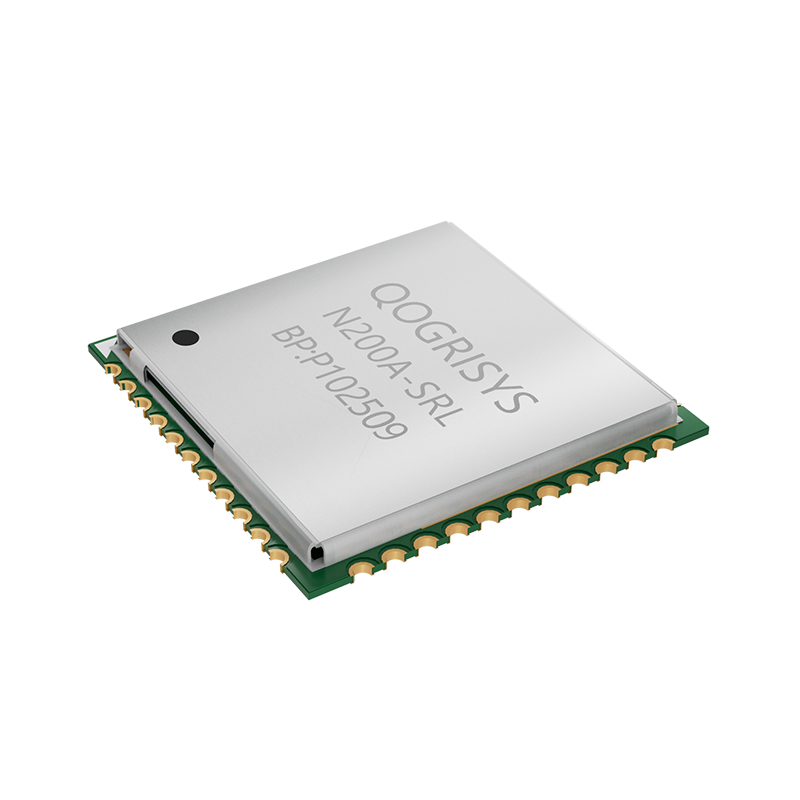

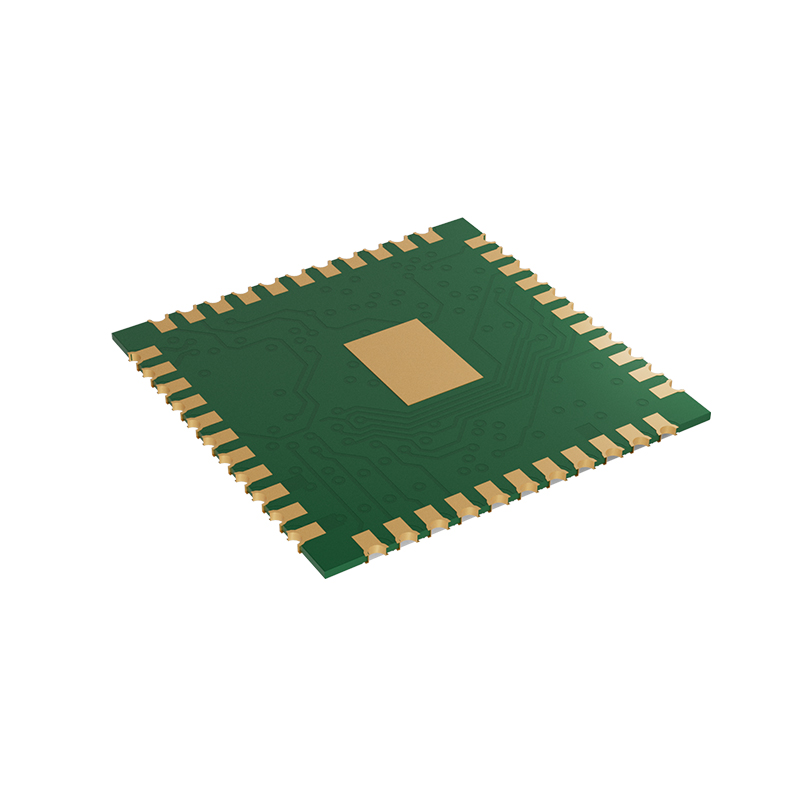

N200A-SRL N200A-SRL is a highly integrated chip with dual band Wi-Fi6,BLE5.2 for wireless application

  N200A-SRL WLAN function supports the SDIO interface, and BT only supports UART interface

  N200A-SRL supports 20MHz/40MHz bandwidth

  N200A-SRL support 2.4GHz Wi-Fi6

  N200A-SRL wireless module PHY rates up to 286.8Mbps@TX and 229.4Mbps@RX

Application Scenario

  Compliant with IEEE 802.11a/b/g/n/ac/ax

  Support2.4GHz Wi‐Fi6

  Support20/40MHz bandwidth

  Data rates up to 286.8Mbps with 20/40MHz bandwidth

  Support STA, AP, Wi-Fi Direct modes concurrently

  Support STBC, beamforming

  Support Wi-Fi 6 TWT

  Wi-Fi Security WEP / WPA / WPA2/WPA3-SAE Personal, MFP

  Support Two NAV,Buffer Report,Spatial reuse,Multi‐BSSID,intra‐PPDU power save
