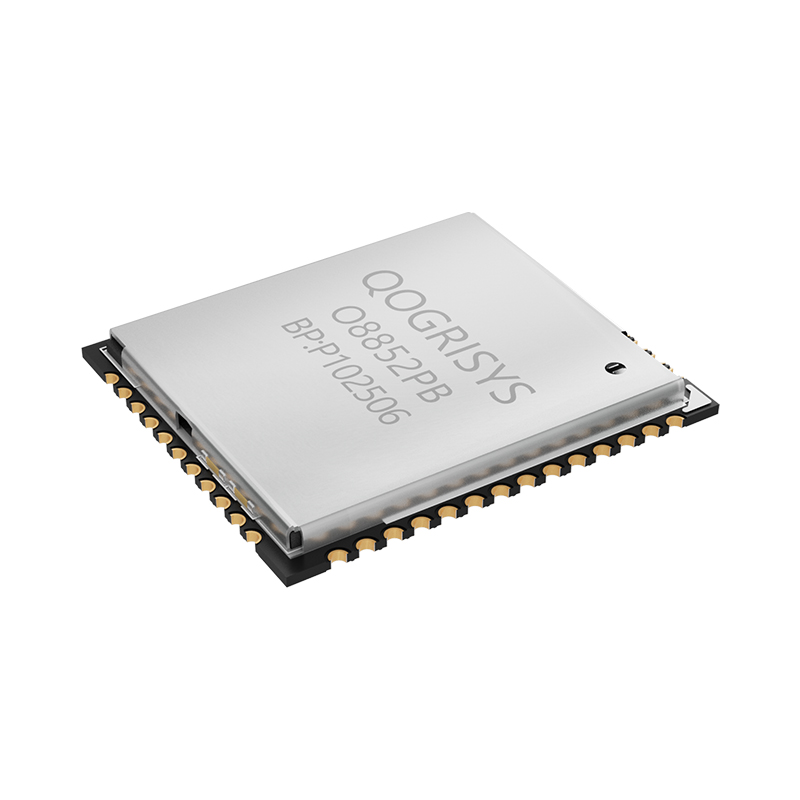

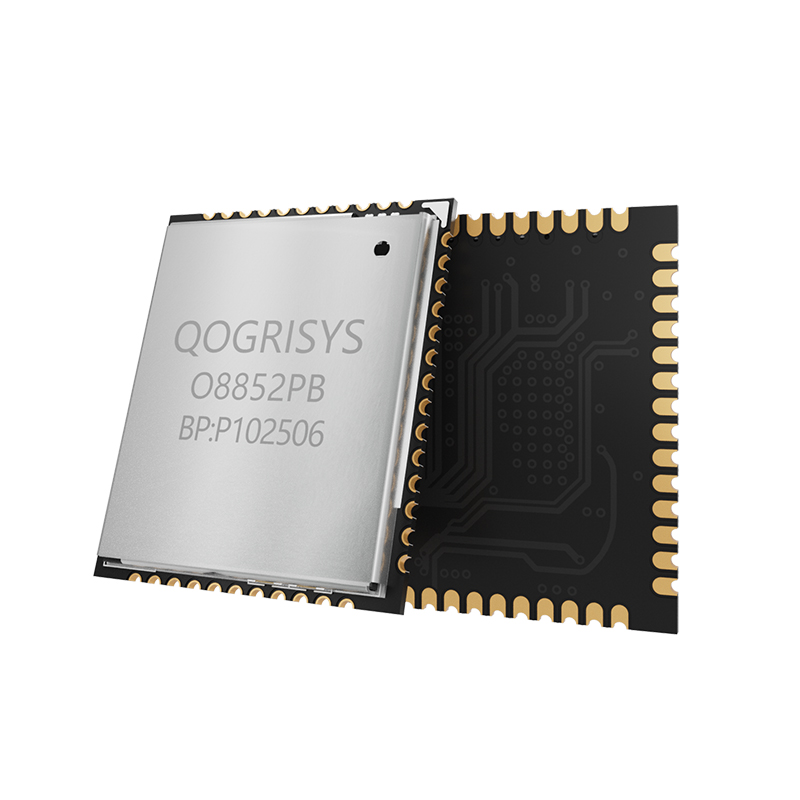

O8852PB is a highly integrated single-module that support 802.11ax solutions.

  O8852PB supports Multi-user MIMO (Multiple-Input, Multiple-Output).

  O8852PB supports Wireless LAN (WLAN) PCI network interface controller.

  O8852PB supports integrated Bluetooth 5.2 UART/PCM interface controller.It combines a WLAN MAC, 2T2R capable WLAN baseband, and RF in a single chip.

  O8852PB provides a complete solution for a high-performance integrated wireless and Bluetooth device.

Application Scenario

  Supported for the IEEE 802.11 a / b / g / n / ac / ax protocol.
  Dual-band 2.4 GHz/5 GHz support.
  Supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO
  20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz.
  Support WPA/WPA2/WPA3/WEP/WAPI.Open,shared key,and pair-wise key authentication services
  Fully compatible with Bluetooth 5.2 protocol.
  Compatible with Bluetooth v2.1+EDR
  Dual Mode support: Simultaneous LE and BR/EDR
  Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles
  Supports Bluetooth for class1,class2 and class3 power level transmissions without requiring an external PA
  Integrated 32K oscillator for power management
