QOGRISYS O9101UD wifi 6 module 802.11 ax 886Mbps usb bluetooth5.3 wifi modules

O9101UE

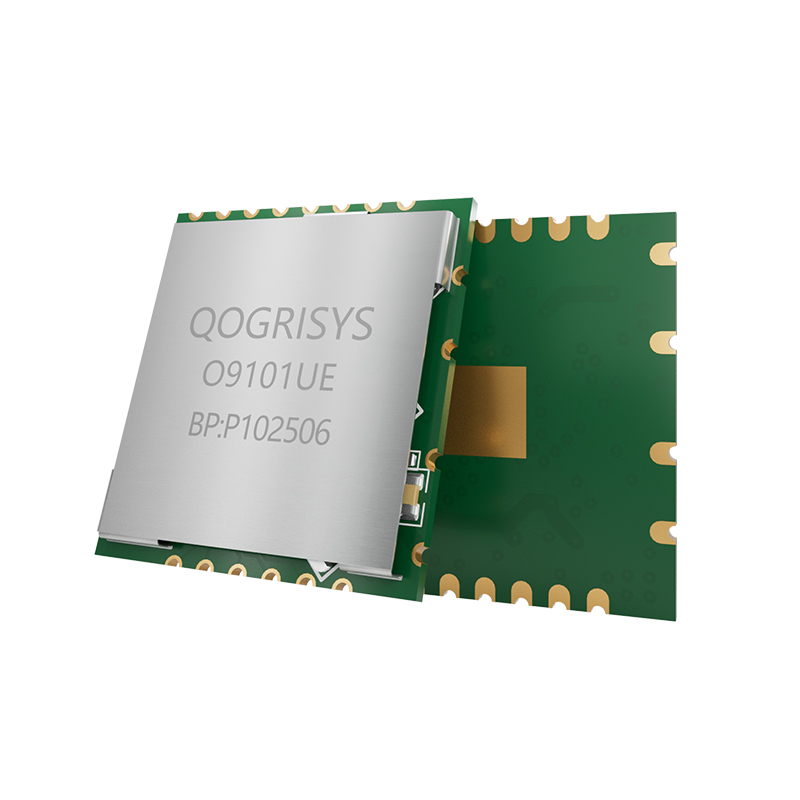

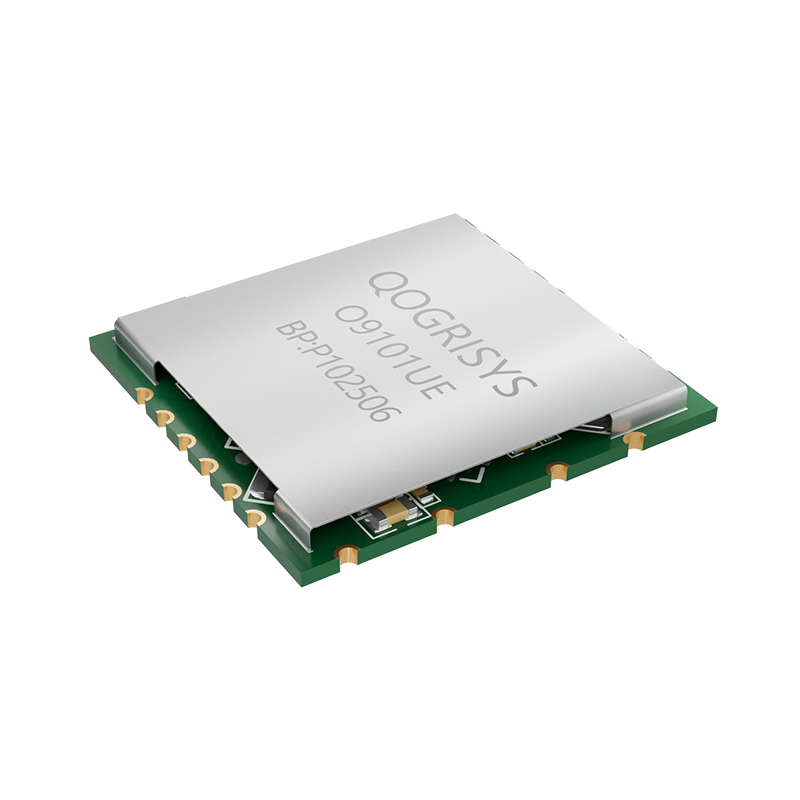

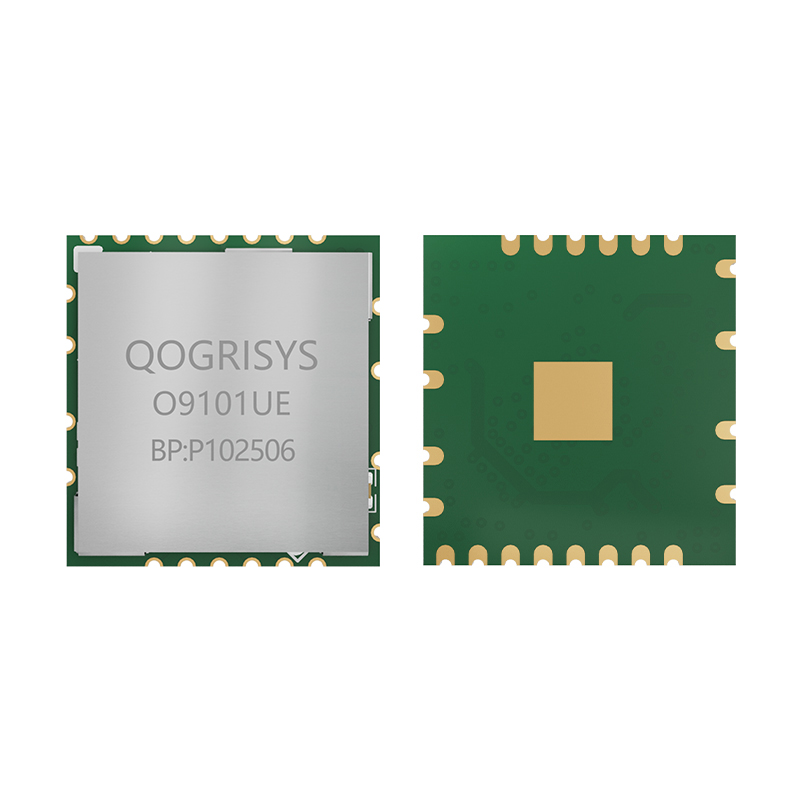

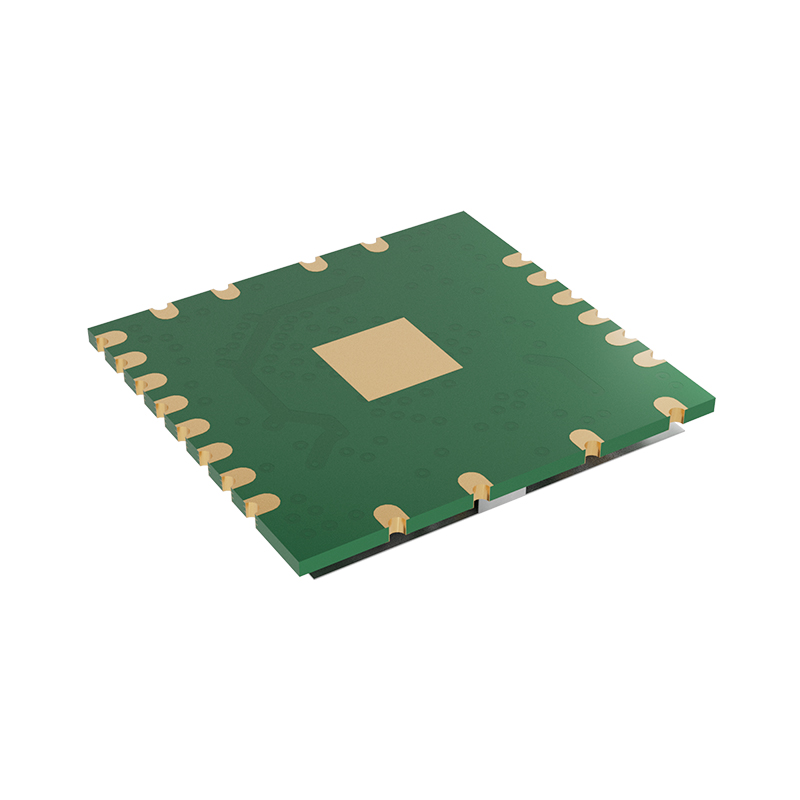

QOGRISYS O9101UE wifi 6 module 802.11 ax 600Mbps usb bluetooth5.4 wifi modules

Protocol：802.11ax
Size：13*12.2mm
Rate：600Mbps
Frequency Band：2.4/5GHz
Interface：USB2.0

Introduction

Functions

Dimension

Diagram

Pin Outline

The O9101UE device is a highly integrated module supporting 802.11ax Wi-Fi and Bluetooth 5.4

The O9101UD device supporting H80 bandwith.

The wireless module complies with IEEE 802.11 a/b/g/n/ac/ax standard and it can achieve up to a speed of 600Mbps

The integrated module integrates five high-performance RISC-V CPUs

Application Scenario

Dual-band 2.4 GHz/5 GHz support

20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz

Support uplink MU-OFDMA TX and downlink MU-OFDMA RX

Support uplink MU-MIMO TX and downlink MU-MIMO RX

Support WFA、WPA/WPA2/WPA3、WEP、WAPI

Supports AP/STA/P2P mode

Supports IEEE 802.11k/v/r protocols

Supports dual-mode BT/BLE operation
