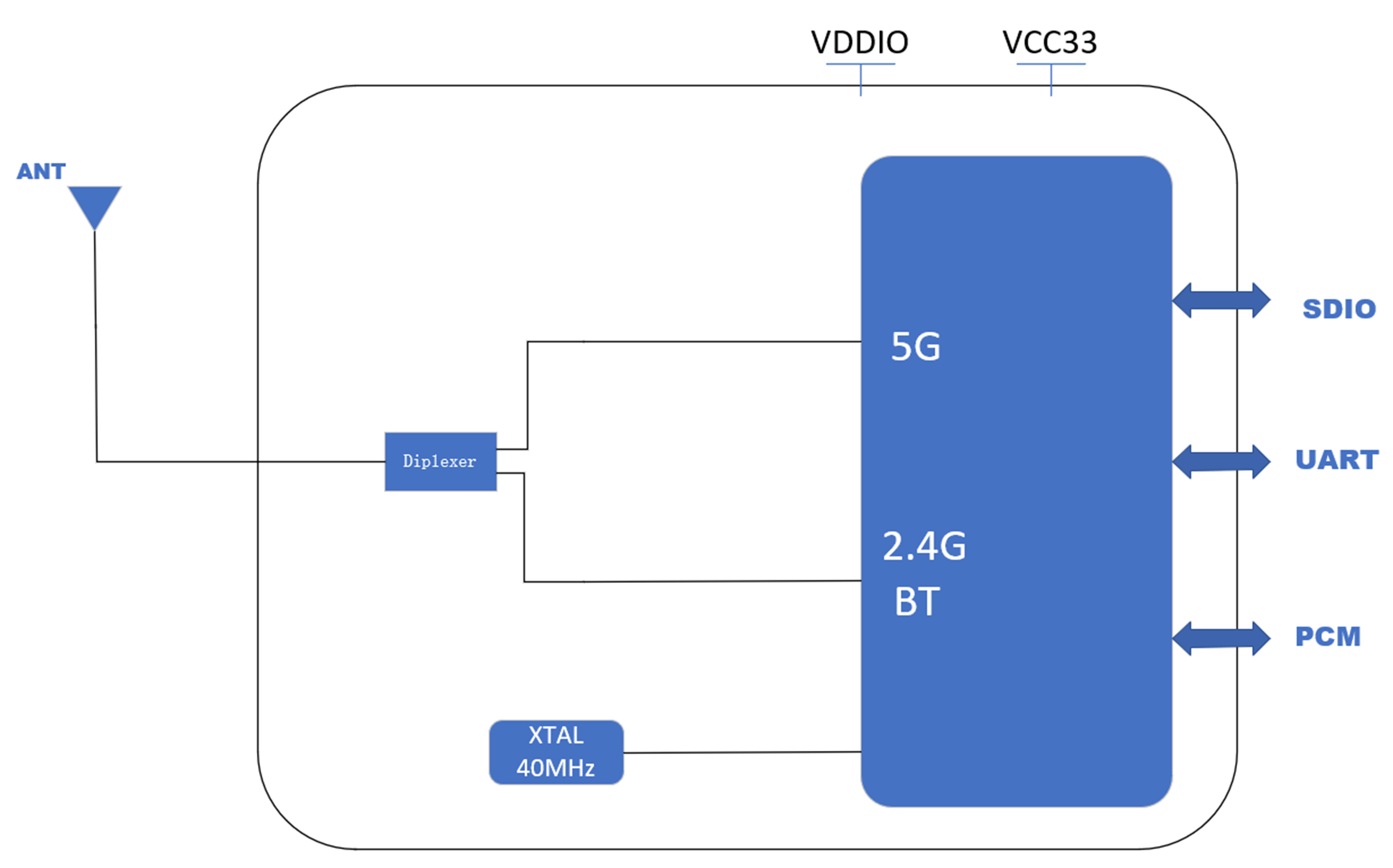

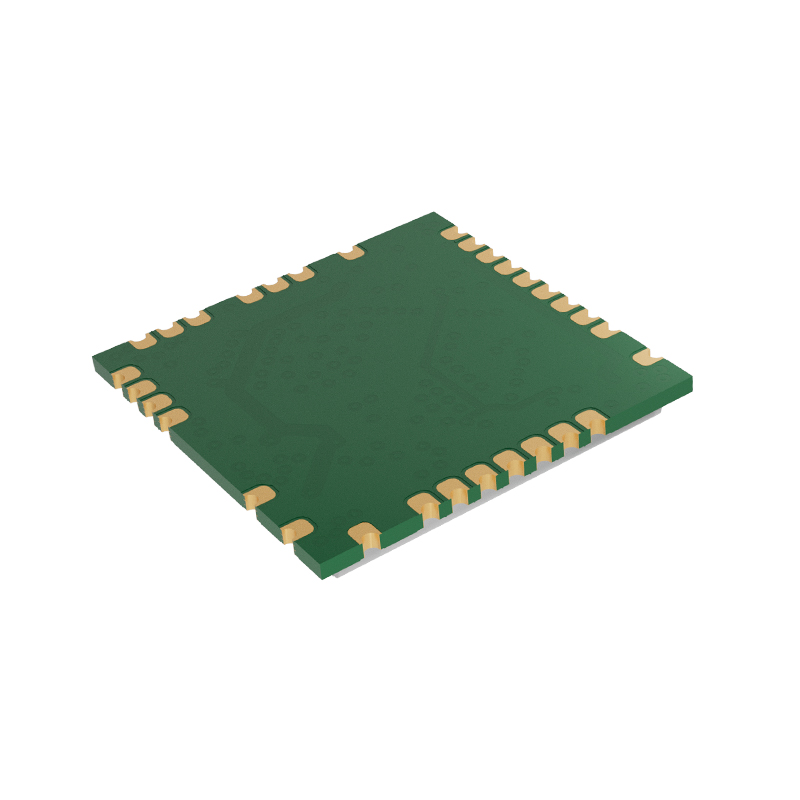

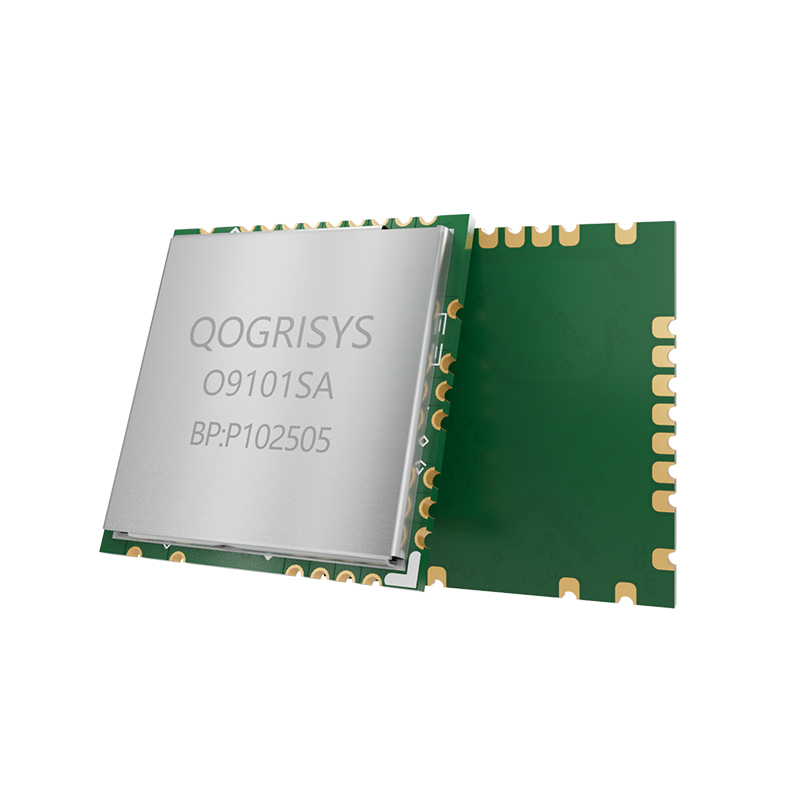

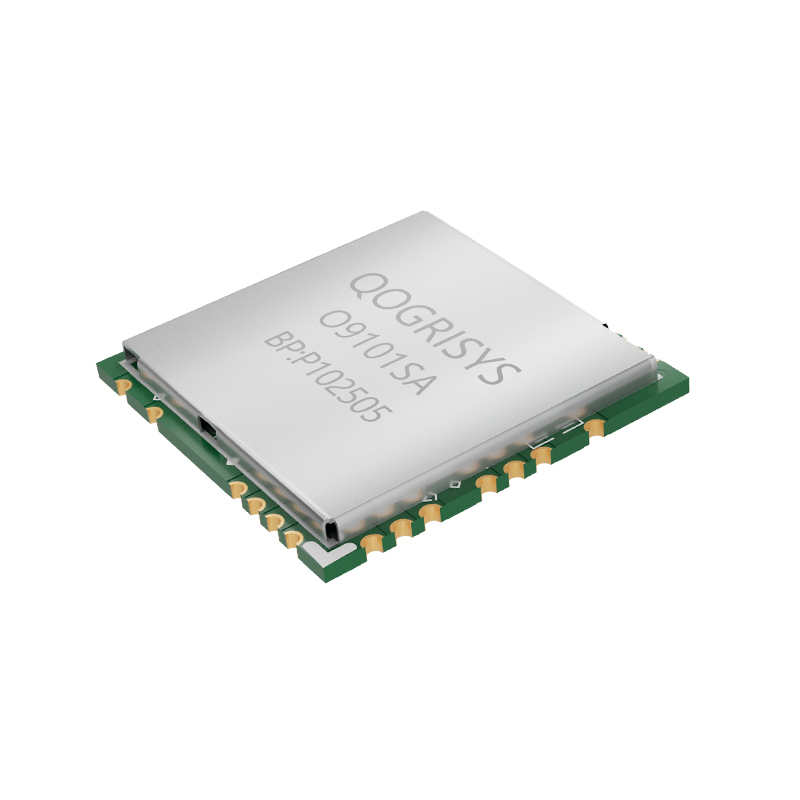

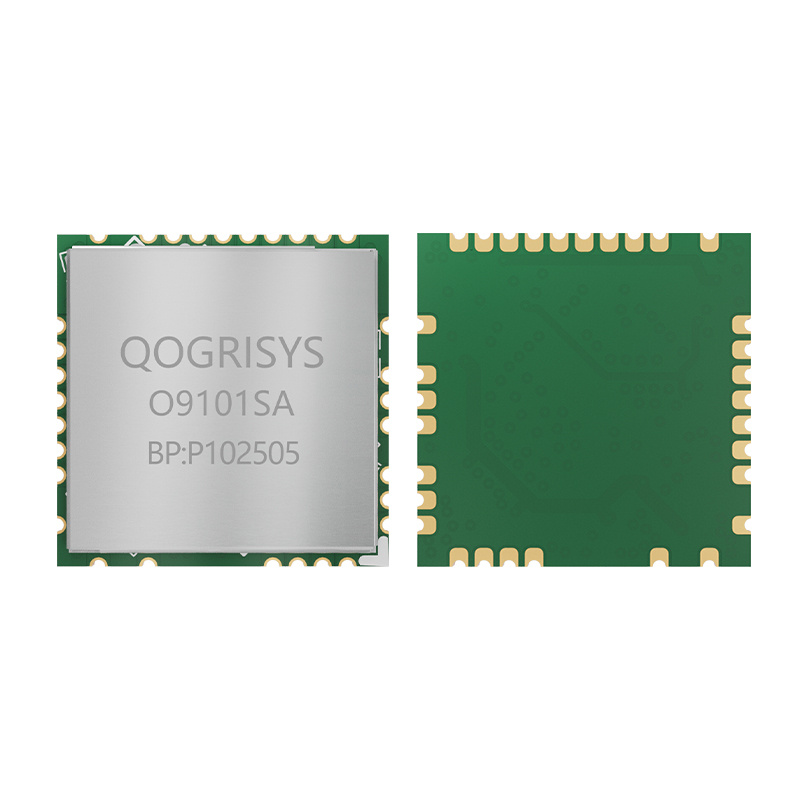

The O9101SA is a highly integrated module supporting 802.11ax Wi-Fi 6 and Bluetooth 5.4

  The O9101SA supports simultaneous 2.4 GHz and 5 GHz operation, also known as Dual-Band Simultaneous (DBS)

  The O9101SA complies with IEEE 802.11 a/b/g/n/ac/ax standards, delivering speeds of up to 886 Mbps

  The O9101SA integrates five high-performance RISC-V CPUs and a high-speed interface (SDIO 3.0)

Application Scenario

  Supported for the IEEE 802.11 a / b / g / n / ac / ax protocol.

  Dual-band 2.4 GHz/5 GHz support.

  20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz.

  Support uplink MU-OFDMA TX and downlink MU-OFDMA RX.

  Support uplink MU-MIMO TX and downlink MU-MIMO RX.

  Support for Beamforming.

  Support WFA、WPA/WPA2/WPA3、WEP、WAPI.

  DBS supports STA+AP, STA+ P2P GO, and STA+ P2P GC

  Support Soft AP/STA/P2P mode.

  Fully compatible with Bluetooth 5.4 protocol.

  Support for BT / BLE dual-mode.
