PCBA Solution for Engineering Line Integrated Tester

  Supports multi-communication protocol  Bluetooth, WiFi, etc.

  Flexible circuit architecture: Customizable PCB layout and circuit topology based on measurement requirements, ensuring signal integrity and anti-interference capability.

  System-level adaptation and optimization: Compatible with Android, Linux, and other OS options, with customized development for measurement scenarios.

  Joint hardware & software engineering support: Ensures stable operation of customized functions such as OTDR curve plotting and multi-device networking.

Application Scenario

Custom PCBA Hardware Solutions for Engineering Line Testers to ensure optimal configurations in functionality, power efficiency, and form factor through fully customized development. Our tailored solutions include:

  Support Multi-Protocol  Bluetooth 5.0/BLE, Wi-Fi, and other communication protocols。

  Support Adaptive Computing Architecture Configurable for low-power or high-performance processing.

  Provide Standardized Dimensional Compliance Precisely engineered to match product requirements.

  Modular function design with flexible configuration. Measurement functions can be customized on demand, ranging from basic tests (cable length measurement, optical power meter, visual fault locator) to professional OTDR modules and extended features like resistance/capacitance measurement with temperature/humidity monitoring, to serve various scenarios including home installation, large-scale projects and industrial inspection.

  Custom Interface & Form Factor Options: Industrial/IoT interfaces: RS485, USB-HOST, NFC.

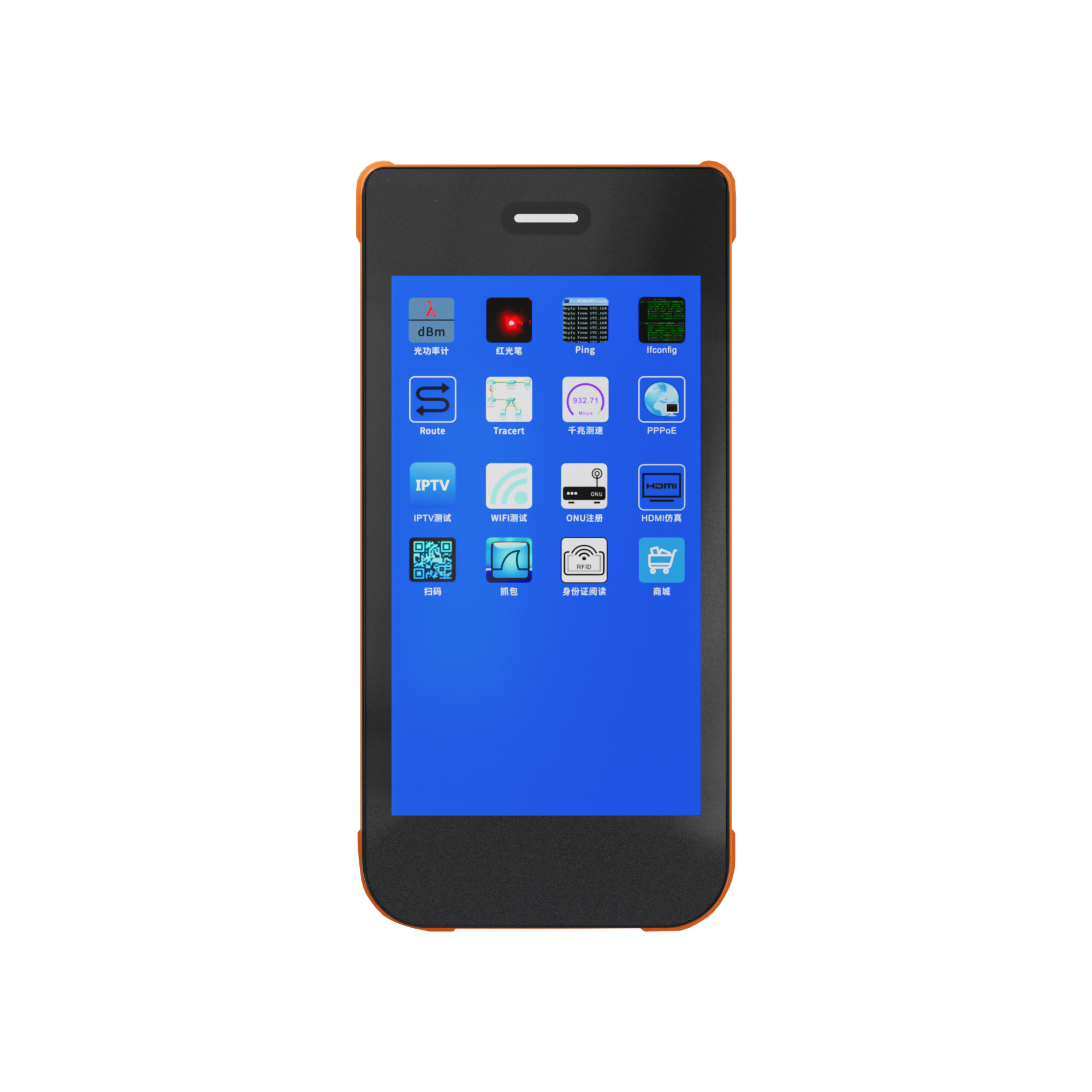

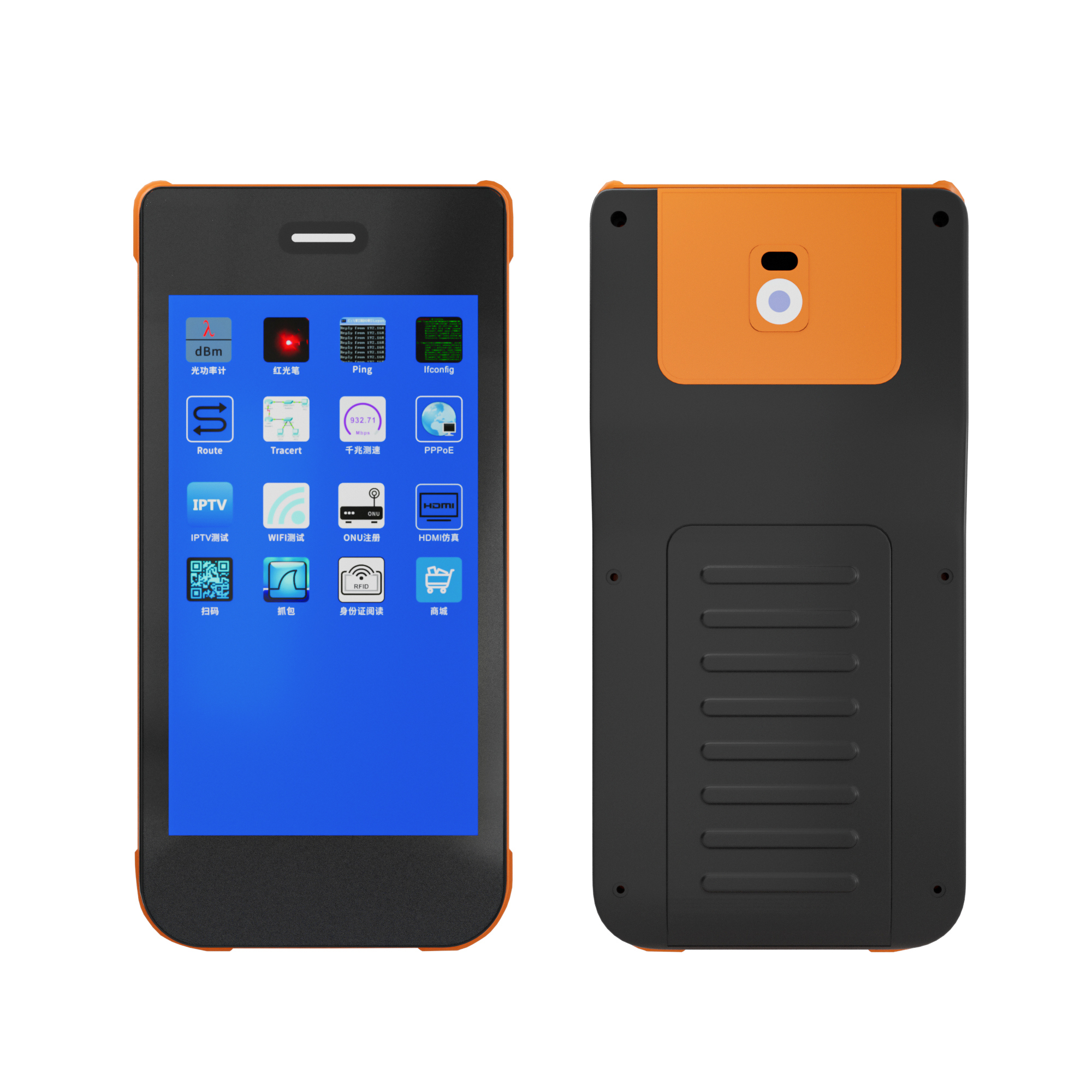

  Multiple configurations:provide 5" touchscreen handheld  Desktop units Modular designs for complex environments.

End-to-End Development Service From conceptual design to mass production, we ensure competitive advantages in Performance optimization,Cost efficiency,Time-to-market acceleration.

Application Scenario

Based on the hardware, the Software Development Kit (SDK) is developed to adapt to various hardware functions, allowing customers to focus on overall product development while supporting the following advanced features:
  SDK adaptation for hardware function control development
  Bluetooth network provisioning, Wi-Fi network provisioning
  System-layer adaptation and optimization: Supports multiple operating systems such as Android and Linux, with customized development for measurement scenarios. Provides system-level functions such as boot logo customization, permission management, and OTA remote upgrades. Additionally, it enables deep calibration of measurement algorithms, reducing cable length measurement error from 1% to 0.5% to ensure data accuracy.

  Application-layer function customization: Offers a full-featured SDK toolchain, allowing customers to quickly develop dedicated apps.

With powerful hardware-software co-development capabilities, it helps create differentiated products, rapidly respond to market demands, and significantly improve engineering efficiency and data management capabilities.
