The O8852UB module is a highly integrated module that support 2-stream 802.11ax solutions with Multi-user MIMO (Multiple-Input, Multiple-Output) with Wireless LAN (WLAN).

  The O8852UB module is integrated Bluetooth 5.2 USB network interface controller.

  The O8852UB module supports 2.4 GHz and 5GHz.

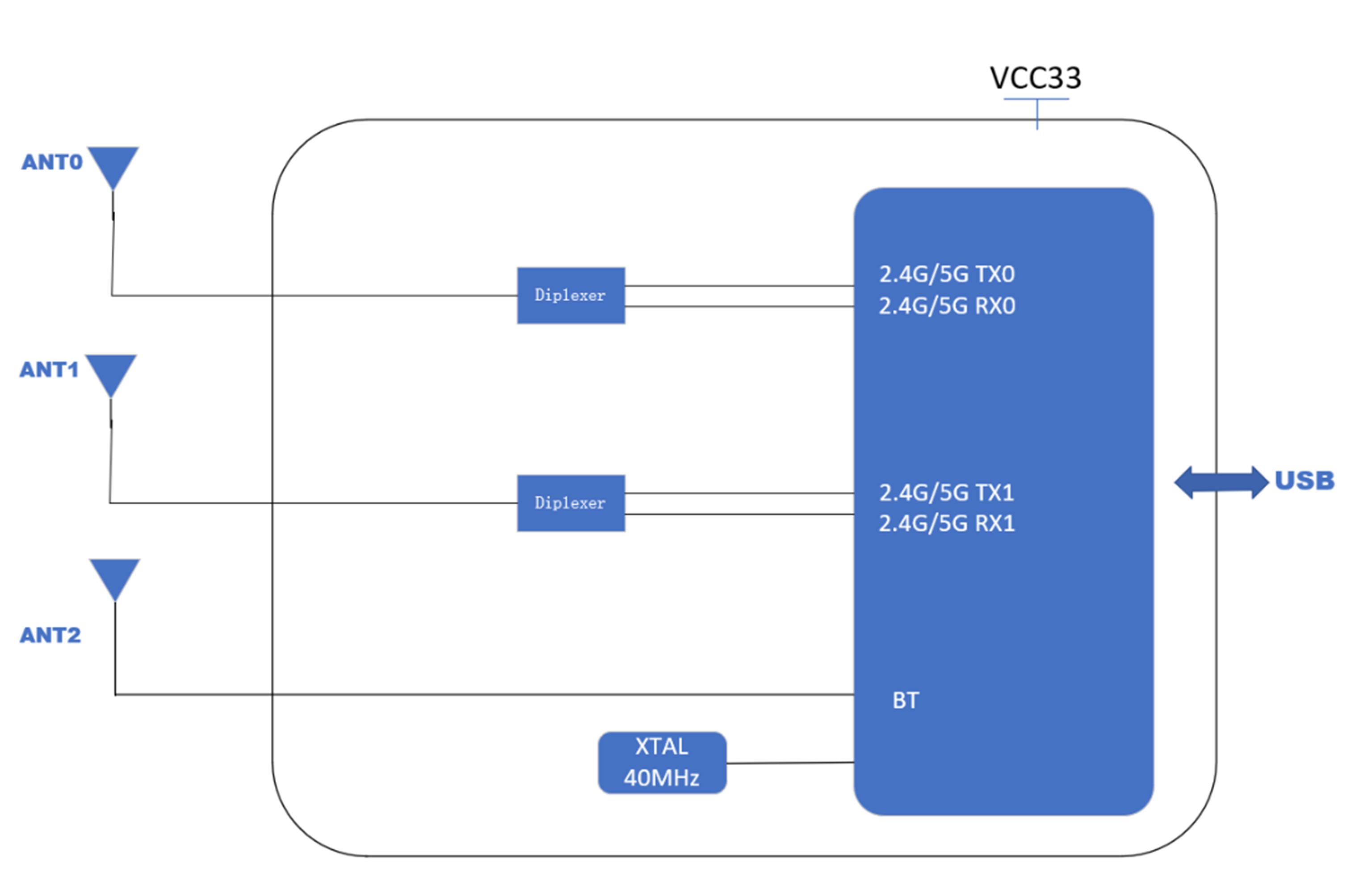

  The O8852UB module combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip.

  The 08852U8 module  is specifically developed for Smart phones and Portable devices.

Application Scenario

  Supported for the IEEE 802.11 a/b/g/n/ac/ax protocol.
  Dual-band 2.4 GHz/5 GHz support.
  20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz.
  Support 802.11ac 2x2,Wave-2 compliant with RX MU-MIMO.
  Support WPA/WPA2/WPA3, Open, shared key, and pair-wise key authentication services
  Supports IEEE 802.11ax MIMO OFDM/OFDMA,IEEE 802.11ac MIMO OFDM,IEEE 802.11n MIMO OFDM.
  Fully compatible with Bluetooth 5.2 protocol.
  Complies with USB2.0 for WLAN and BT controller
  Compatible with Bluetooth v2.1+EDR
  Support Bluetooth 5system (BT 5.2 Logo Compliant)
  Dual Mode support: Simultaneous LE and BR/EDR
