O8852PM

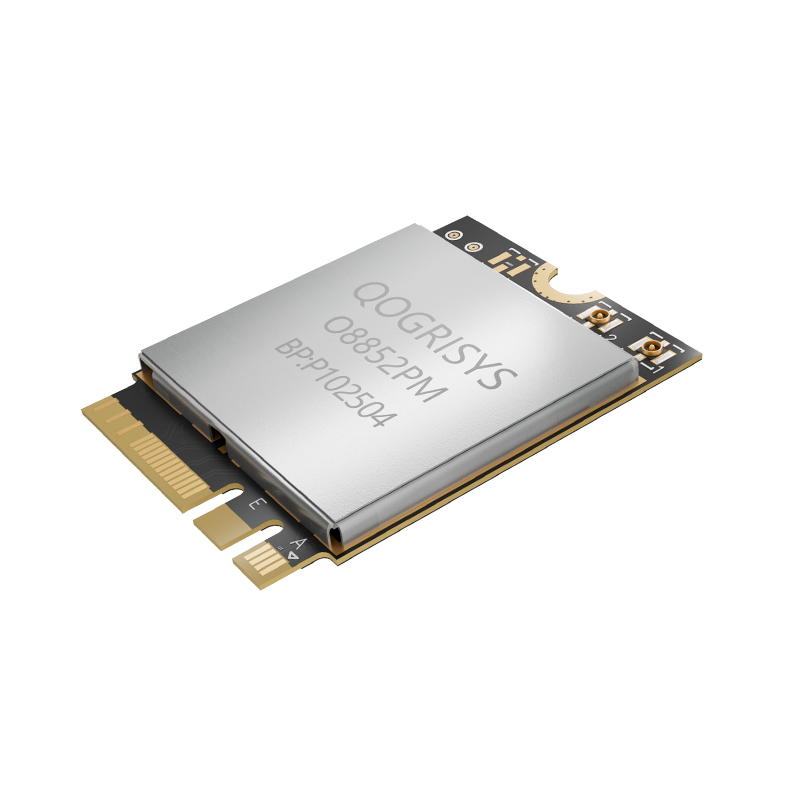

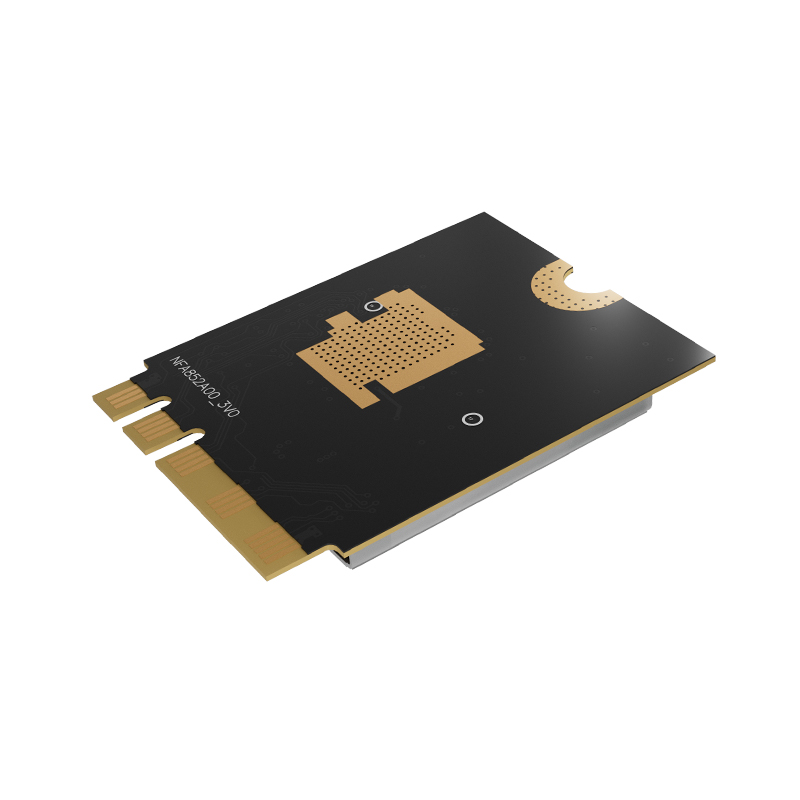

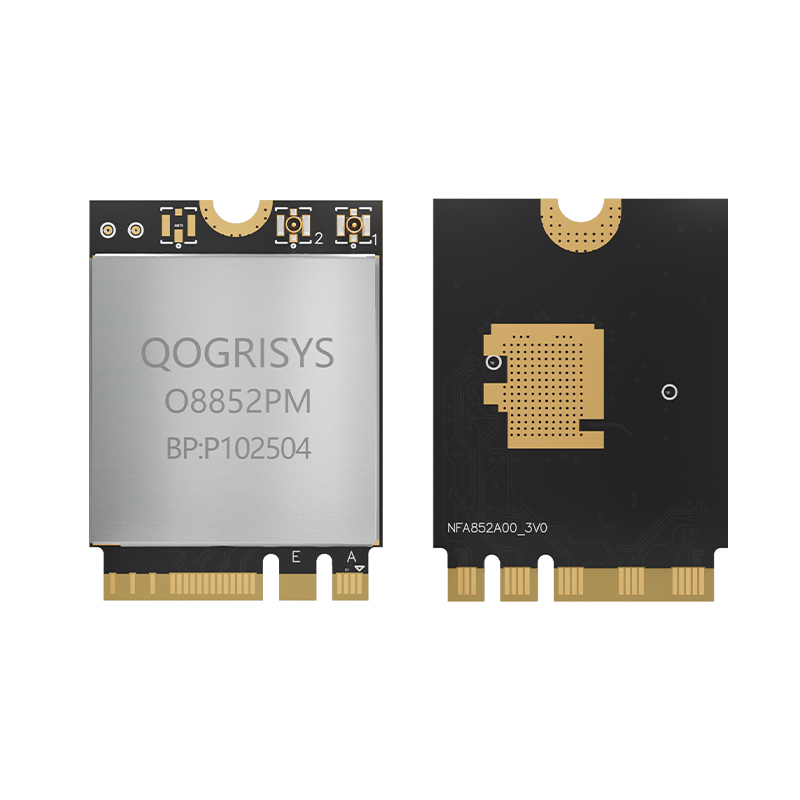

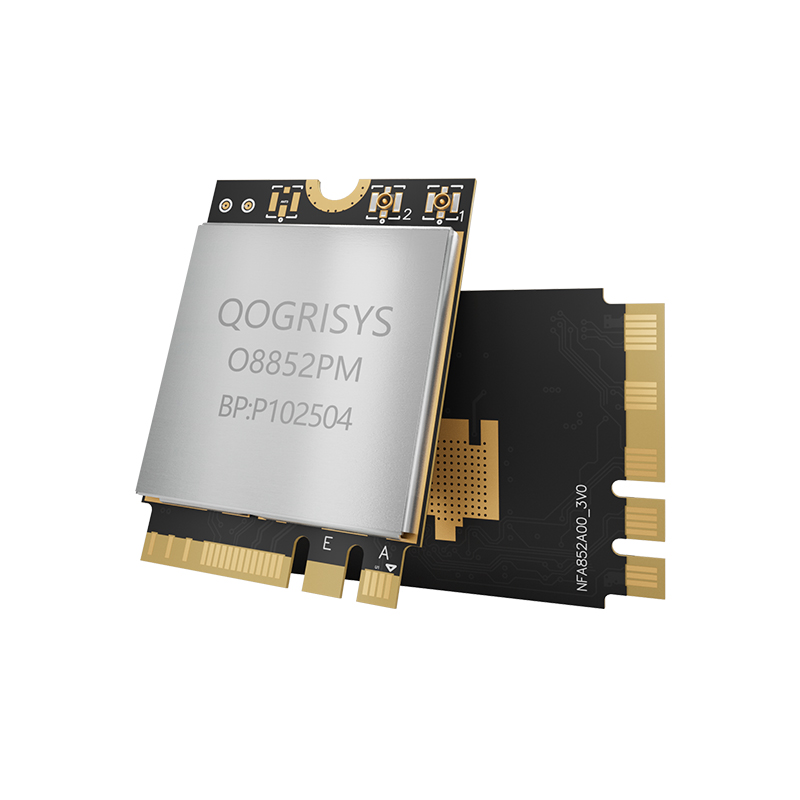

Qogrisys dual-band wifi6 module RTL8852BE-CG chipset O8852PM high-speed wifi module 1200Mbps 5.4 Bluetooth wifi two-in-one module
Protocol：802.11ax

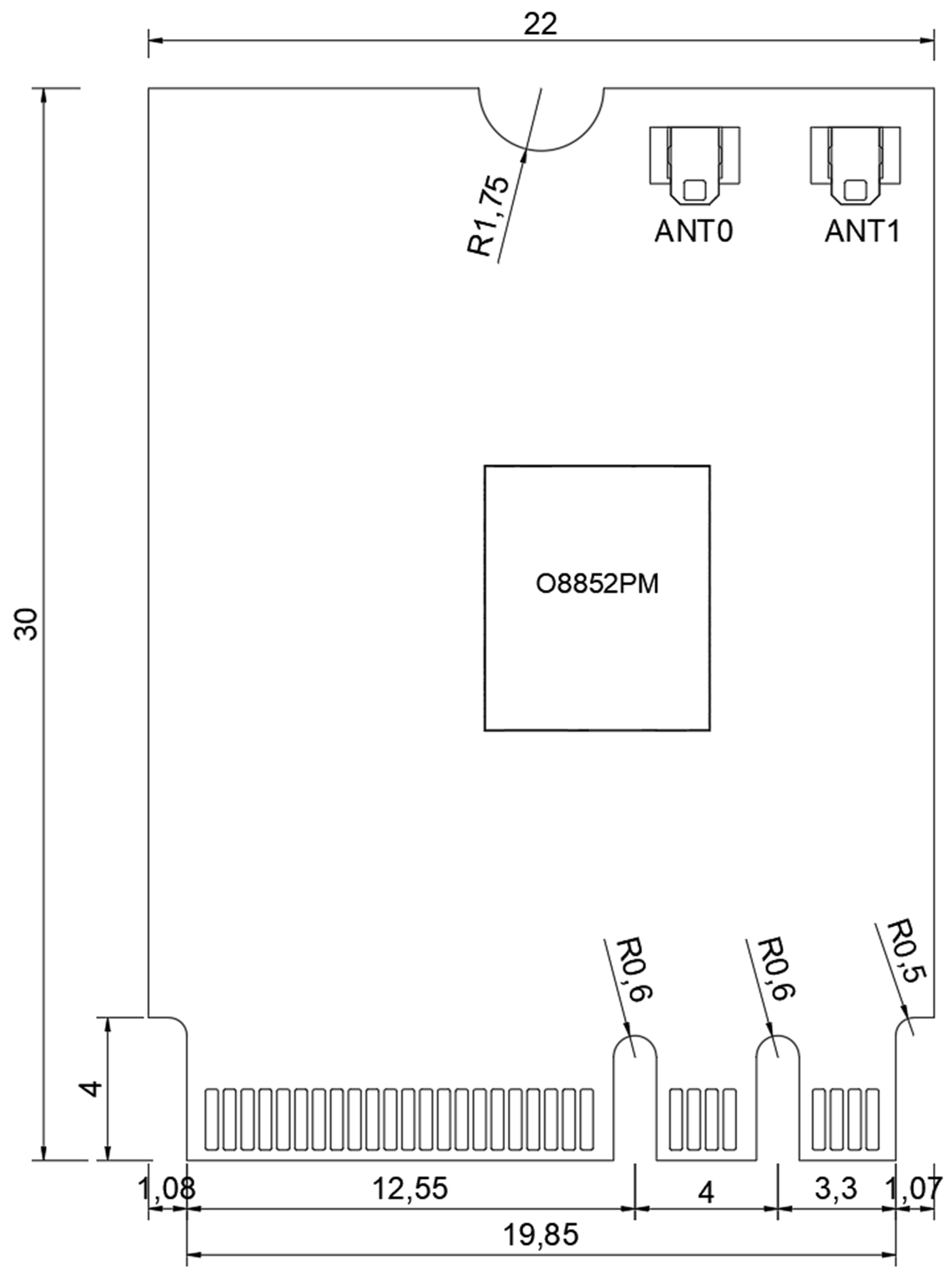

Size：22*30mm
Rate：1200Mbps
Frequency Band：2.4/5GHz

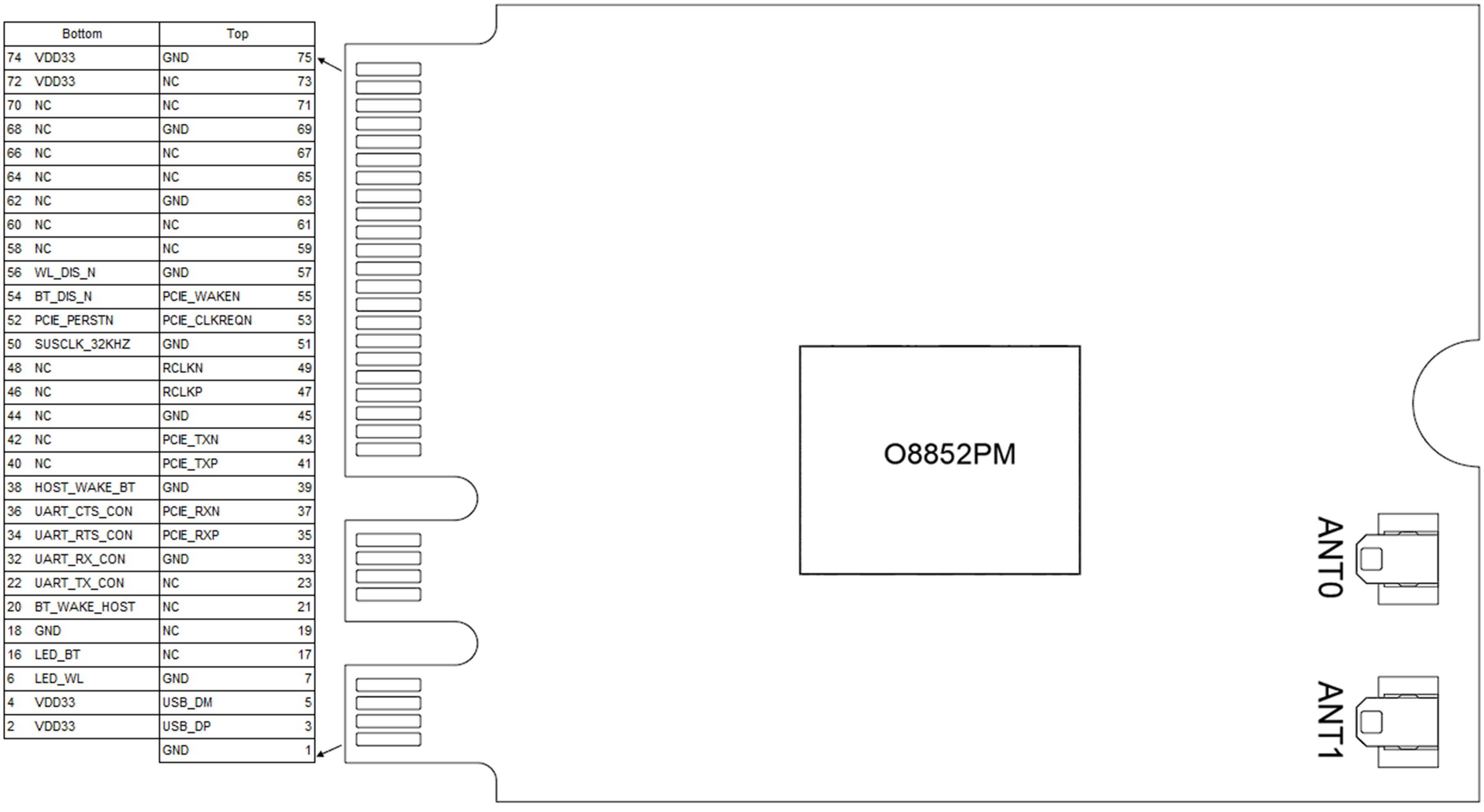

Interface：PCIE
.
The O8852PM module supports for the IEEE 802.11 a / b / g / n / ac / ax protocol.

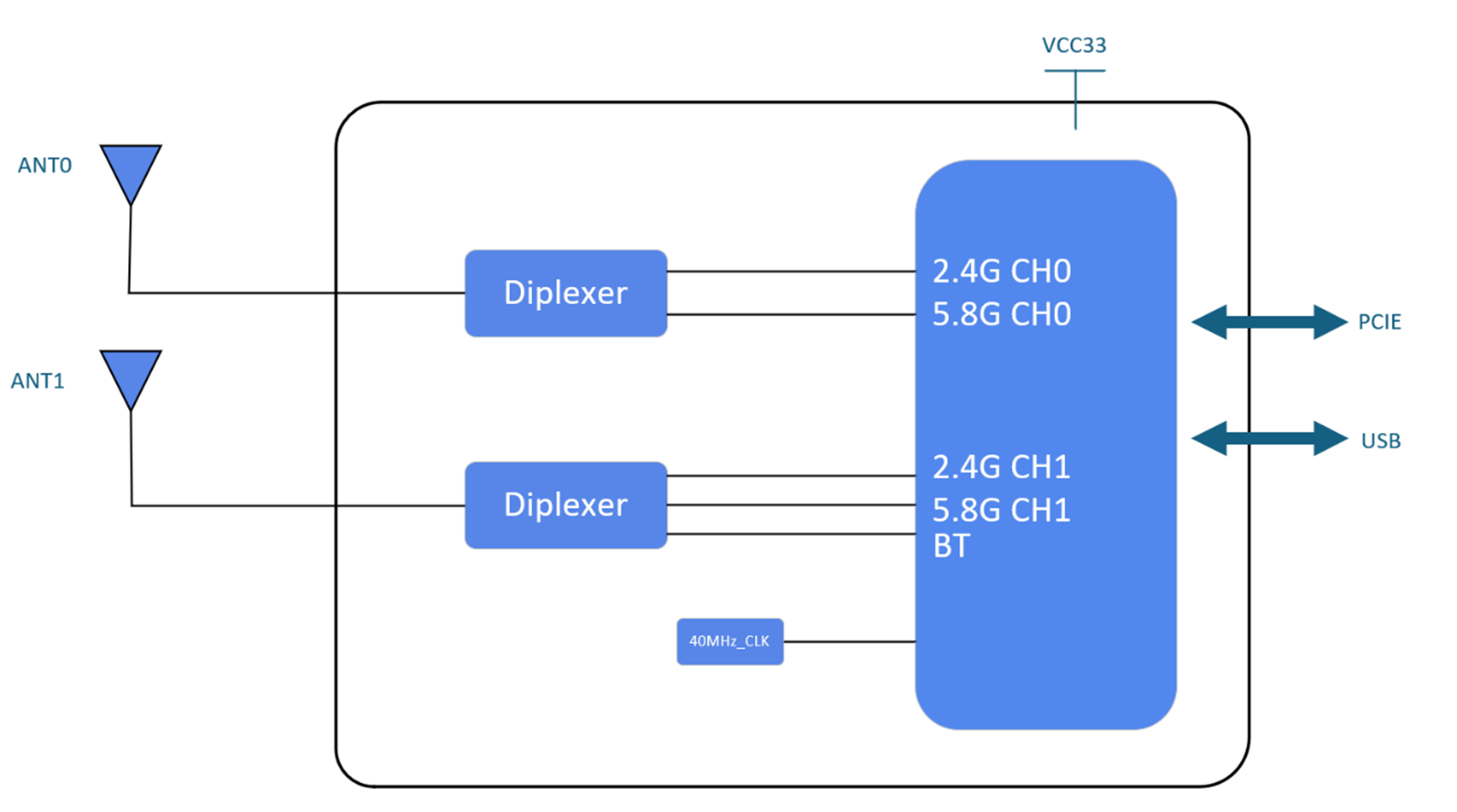

The O8852PM module supports Dual-band 2.4 GHz/5 GHz.
The O8852PM module supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO.
The O8852PM module supports 20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz.
Application Scenario
Supported for the IEEE 802.11 a / b / g / n / ac / ax protocol.
Dual-band 2.4 GHz/5 GHz support.
Supports 802.11ac 2x2, Wave-2 compliant with RX MU-MIMO
20MHz/40MHz channel bandwidth for 2.4 GHz and 20MHz/40MHz/80MHz channel bandwidth for 5 GHz.
Support WPA/WPA2/WPA3/WEP/WAPI.Open,shared key,and pair-wise key authentication services
Fully compatible with Bluetooth 5.2 protocol.
Compatible with Bluetooth v2.1+EDR
Dual Mode support: Simultaneous LE and BR/EDR
Enhanced BT/Wi-Fi Coexistence Control to improve transmission quality in different profiles
Supports Bluetooth for class1,class2 and class3 power level transmissions without requiring an external PA
Integrated 32K oscillator for power management mode
