Introduction: A New Paradigm for Wireless Networks

As wireless communication technologies approach physical limits, the performance gains from increasing modulation order, channel bandwidth, or coding efficiency on a single link are slowing down. Meanwhile, demands for higher throughput, lower latency, and better reliability continue to surge, especially in emerging applications such as virtual reality, industrial IoT, cloud gaming, and telemedicine. WiFi 7 (IEEE 802.11be) emerges as a technological breakthrough in this context. Its core innovation – MultiLink Operation (MLO) – no longer pursues extreme performance on a single link but instead leverages multiple links working together to achieve systemlevel optimization. This fundamental paradigm shift gives WiFi the ability to combat random environmental interference for the first time.

Among the many capabilities enabled by MLO, link management mechanisms and handover latency performance are critical to determining whether a wireless network can deliver a truly seamless experience. Traditional WiFi link handover requires disconnection, scanning, authentication, and reassociation, typically taking hundreds of milliseconds or even seconds – a major source of quality degradation for realtime applications. MLO fundamentally rewrites this scenario.

1. Core Technical Framework of MLO

1.1 From Single Lane to MultiLane: The Essence of MLO

A legacy WiFi client device, regardless of how complex the environment is, must select and stay on one operating band. MLO breaks this limitation. MLO allows a device to establish parallel connections simultaneously on the 2.4 GHz, 5 GHz, and 6 GHz bands, turning data flow from a single narrow alley into a multilane highway.

This parallelism is not just a simple backup – it is a deep coupling at the physical layer. From the protocol stack perspective, MLO uses link aggregation at the MAC layer, mapping links to channels and frequency bands. By performing packetlevel aggregation across different PHY links, MLO can balance load according to traffic demands.

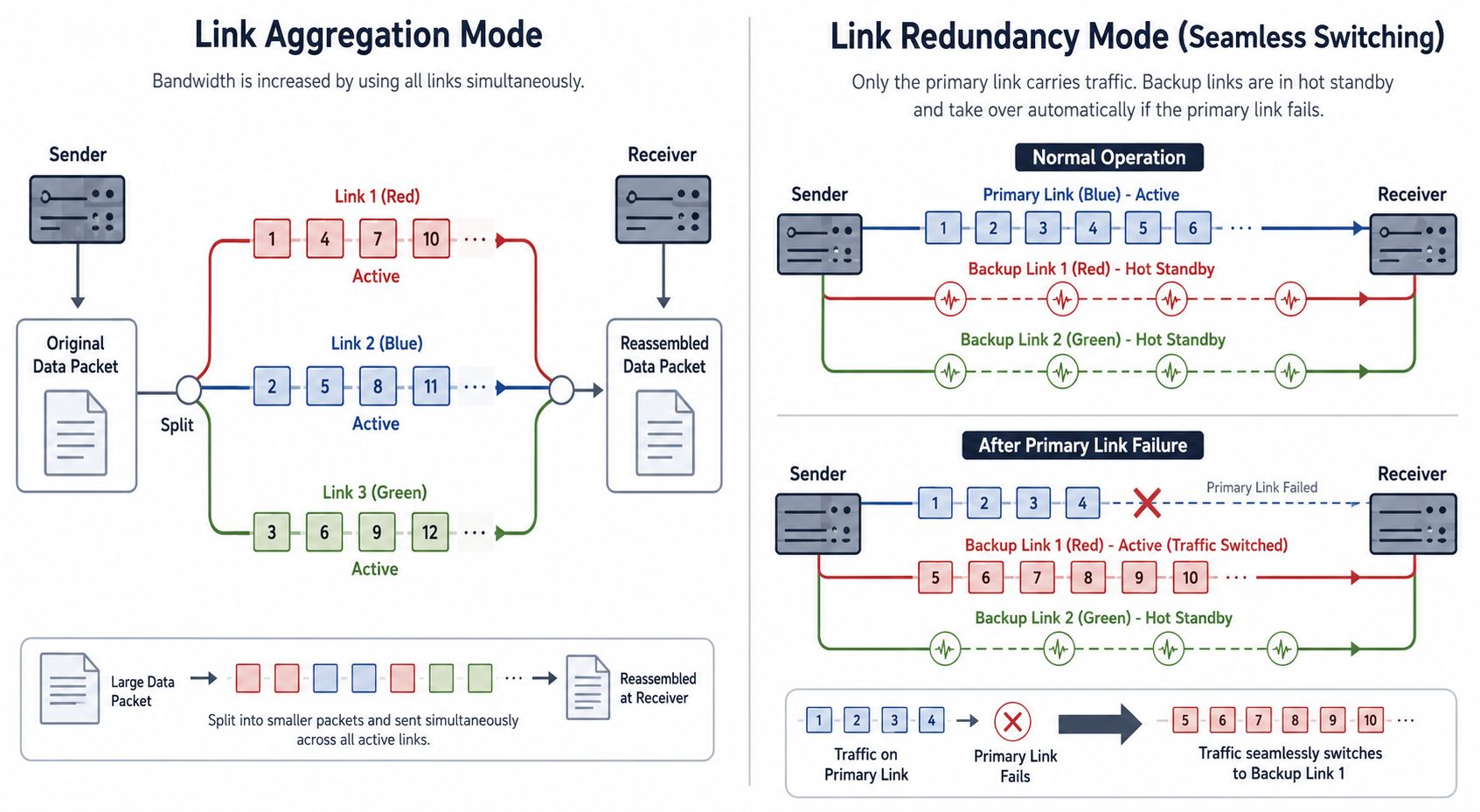

1.2 Two Core Functions of MLO: Aggregation and Redundancy

Link Aggregation (throughputenhancing mode): A device can simultaneously establish connections on different bands (e.g., 5 GHz and 6 GHz) and distribute data flows across these links for parallel transmission, breaking the throughput ceiling of a single band.

Link Redundancy (seamless switching mode): Although the device maintains connections on two or more bands, the system selects one highperformance link as the primary for data transmission while keeping another link active as a backup. When the primary link degrades or encounters sudden interference, MLO instantly redirects traffic to the backup link, with the handover completely transparent to upperlayer applications.

2. Link Management Logic: From Discovery to Handover

2.1 MultiLink Discovery and Association

Implementing MLO is far more than adding physical connections – it requires a fundamental overhaul of the MAC layer protocol. For MLO, the initial handshake is much more complex than legacy WiFi:

Association phase reconstruction: A legacy device needs only a single association exchange with the AP on one channel. An MLO device must establish separate associations with the same AP on multiple channels across different bands, forming a logical multilink set. This requires extending the frame structures of beacons, probe requests/responses, and association frames to carry multilink capabilities, parameters of each link, and dependency relationships.

Complex capability negotiation: During standard MLO establishment, the AP MLD and STA MLD must negotiate in detail using the MultiLink Element (MLE), determining which links are usable, the role of each link, and synchronization constraints between links.

2.2 Dynamic Link Quality Monitoring

After link establishment, continuous quality monitoring becomes critical. The link manager must continuously or periodically measure realtime performance metrics for each available link, including RSSI, SNR, PER, RTT, and available bandwidth. These measurements form the information base for scheduling and handover decisions. Based on realtime data, the policy engine decides which links are used for parallel transmission, which act as hot backups, and when to trigger a handover. Fast link state evaluation and ultralowlatency switching signaling are key technical prerequisites for dynamic MLO switching.

2.3 Handover Mechanism: From “BreakbeforeMake” to “Seamless HotSwitch”

Legacy roaming is essentially a hard handover logic – the device must go through scanning, authentication, and reassociation after signal degradation. Even with fast roaming protocols, packet loss and delay variation cannot be completely eliminated.

MLO turns handover into a smooth shift of energy. Because the device maintains multiple links simultaneously, when the user moves between APs or the current link suffers interference, the device can first establish a new connection on an auxiliary link while the primary data link continues transmission. As the movement progresses, the center of signal energy shifts imperceptibly across links.

IEEE 802.11be defines two main MLO operation modes:

eMLSR (Enhanced MultiLink Single Radio) mode: Data is transmitted on only one link at any given time, but the device listens on all active links for signal quality. Once the current link degrades, gets heavily interfered, or becomes busy, packets can be switched to another idle link in extremely short time. eMLSR allows the device to listen concurrently on multiple bands (through independent receive chains) and dynamically move all transmit chains to the currently best band.

STR (Simultaneous Transmit and Receive) mode: The device can send and receive data on multiple links at the same time. For latencysensitive applications, packets can be fragmented into subflows and transmitted in parallel on multiple links, minimizing transmission time. This parallel transmission directly doubles the effective throughput of a single flow, and because data is physically spread across two links, even if one link experiences transient interference, data on the other link still arrives successfully.

3. Handover Latency: From Theory to Measurement

3.1 Latency Bottleneck of Legacy Handover

The inherent delay of legacy WiFi band switching is a major cause of poor user experience. When a device detects that the current band has degraded and must switch to another, it must go through a lengthy sequence: disconnect old connection → scan new band → authenticate → reassociate. This process typically takes hundreds of milliseconds or even seconds.

While this may be tolerable for web browsing, for realtime voice calls, cloud gaming, or VR applications, such delays directly cause stuttering, frame tearing, or broken immersion.

MLO reduces handover latency to milliseconds or even microseconds. Because MLO devices keep multiple links connected simultaneously, when a handover is needed, data is simply redirected instantaneously among alreadyestablished links – no need for a full disconnectscanreconnect process. WiFi 7 MLO can achieve and sustain 1millisecond latency, keeping even the most demanding realtime applications stable. In a typical wallpenetration scenario, game latency with MLO enabled can drop from 80 ms to 2030 ms, completely eliminating the stutter caused by singleband handover.

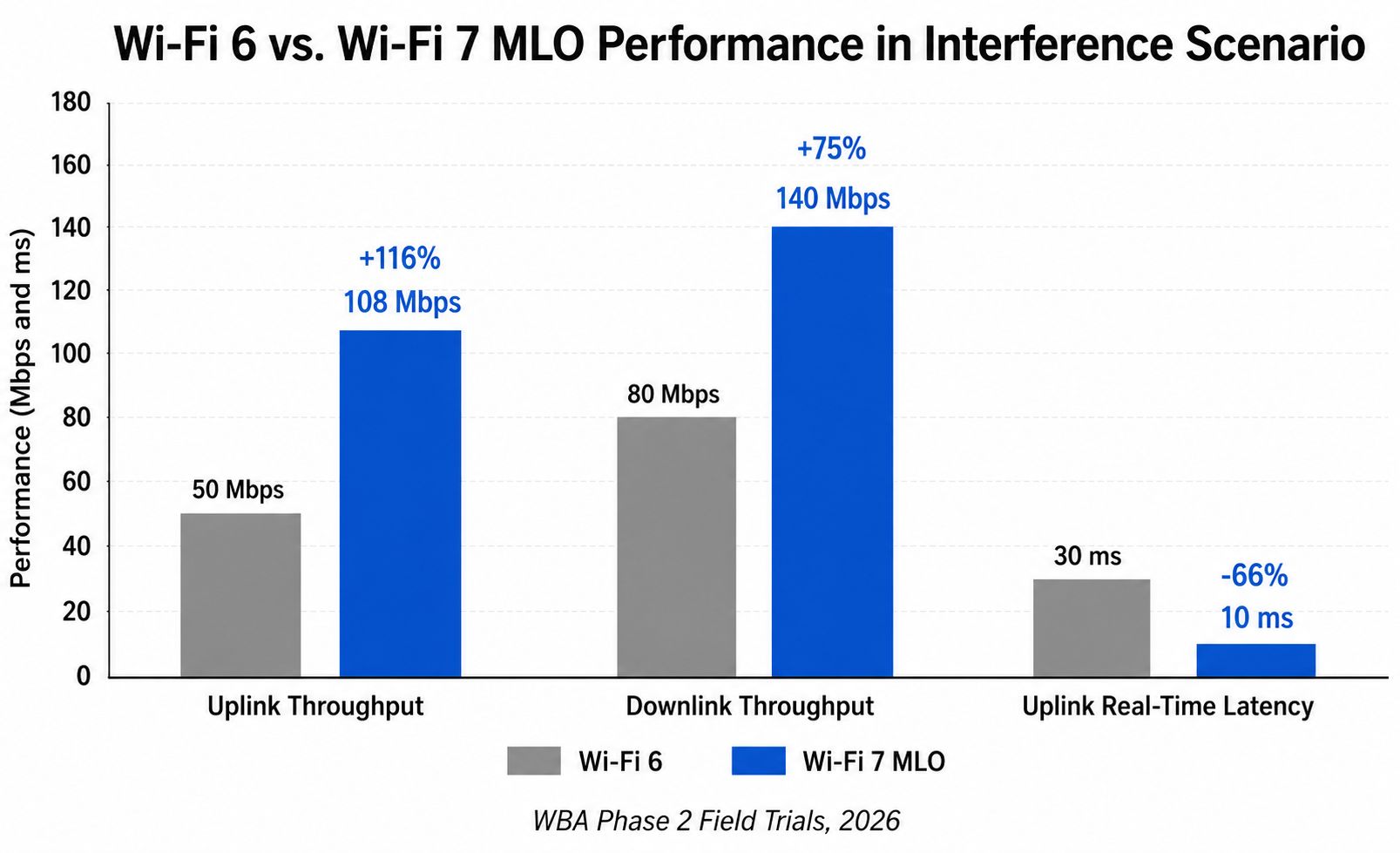

3.2 WBA Phase 2 Field Trials: RealWorld Validation

In March 2026, the Wireless Broadband Alliance (WBA) released its Phase 2 WiFi 7 MLO enterprise field trial report. The trial, jointly conducted by AT&T, RUCKUS Networks, and Intel, took place in a real enterprise office environment with multiple simultaneous WiFi 7 clients, cochannel interference on the 6 GHz band, and mixed traffic (throughput flows and real time RTP flows).

Key results:

Uplink throughput under interference: ↑ 116%

Downlink throughput under interference: ↑ 75%

Uplink realtime traffic latency: ↓ 66%

Downlink realtime oneway latency: ↓ 44%

Uplink throughput without interference: ↑ 139%

Downlink throughput without interference: ↑ 42%

Source: WBA Phase 2 WiFi 7 MLO Enterprise Field Trials Report

The trial also validated the effectiveness of eMLSR in real enterprise deployments: eMLSR improves transmission reliability through spectrum diversity and optimizes efficiency through dynamic band switching, significantly reducing latency for realtime applications. Tiago Rodrigues, President and CEO of WBA, noted in the report: “These trials demonstrate a major leap in reliability with MLO, keeping the network stable even under challenging conditions and surging demand.”

3.3 Academic Research and Simulation Validation

In academia, research on lowlatency and highreliability scheduling for IEEE 802.11be MLO has also yielded rich results. One study proposed an endtoend delay analysis model for MLO links, providing theoretical latency estimates. Another introduced a genetic algorithm based MLO EDCA QoS optimization method. These studies show that MLO link management and scheduling algorithms continue to evolve, pushing theoretical lower latency bounds even lower.

4. Industry Data and Market Trends

4.1 WiFi 7 Market Growth

According to ABI Research, WiFi 7 access point shipments will surge from 26.3 million units in 2024 to 117.9 million units in 2026. The global WiFi 7 market size reached 6.5billionin2025andisexpectedtogrowto6.5billionin2025andisexpectedtogrowto8.63 billion in 2026, reaching $35.66 billion by 2031, at a CAGR of 32.8%.

2026 is seen as the pivotal year when WiFi 7 moves from a “future technology” to a “basic baseline”.

4.2 Market Demand for LowLatency Sensitive Applications

In industrial automation, measurements from an automotive assembly line show that with MLO enabled, network availability increased from 99.2% to 99.99%, synchronization error of robotic arms dropped from ±0.5 ms to ±0.08 ms, and the fluctuation range of emergencystop command latency was reduced by 82% .

In XR (extended reality) applications, the UNITY6G project confirmed that WiFi 7 MLO meets the stringent throughput and latency requirements of XR applications, paving the way for more immersive and responsive VR experiences.

5. Key Technical Breakthroughs in Link Management and Handover Latency

5.1 Frequency Diversity: A Natural Defense Against Physical Interference

In complex indoor electromagnetic environments, MLO demonstrates strong selfhealing capability. Because of multipath reflections and frequencyselective fading, a deep fade on one frequency often coincides with a peak on another. MLO exploits frequency diversity to provide a natural insurance layer for data transmission. If one link suddenly degrades due to home appliance interference or wall attenuation, the underlying MLO scheduler redirects traffic to healthy links in microseconds.

5.2 Asynchronous Preemption: Breaking the Backoff Delay Bottleneck

In heavily interfered real environments, MLO’s asynchronous transmission or pollingbased preemption mechanism shows great practical value. The system continuously listens on all established links. As soon as any channel has an available idle slot, data is transmitted immediately without waiting for the backoff timer on the original channel to expire. This dramatically reduces average latency.

5.3 Path Redundancy Transmission: NearZero Retransmission

For ultrahighreliability critical applications, MLO supports duplicate transmission mode. The same critical packet is sent simultaneously over multiple links, and the receiver only needs to correctly receive it on any one link. This reduces the waiting time due to link failureinduced retransmission to nearly zero. From a user experience perspective, this means video calls no longer freeze easily, critical file transfers see fewer interruptions, and roaming during movement becomes virtually imperceptible.

6. Technology Outlook and Industry Significance

MLO link management and handover latency optimization are not isolated breakthroughs; they are the concentrated manifestation of WiFi 7’s systematic innovation. They fundamentally change the traditional tradeoff between latency and stability in wireless networks.

From a standards perspective, IEEE 802.11be’s definition of MLO is forwardlooking. Through multilink capability negotiation, dynamic link quality monitoring, and flexible switching policies, MLO provides configurable, scalable solutions for differentiated QoS requirements. As the standard moves from draft to official release, implementation details are becoming clearer, and vendor solutions are steadily approaching the optimal performance targets set by the standard.

From an industry application perspective, the low latency and high reliability brought by MLO are opening entirely new application spaces. In industrial automation, MLO gives wireless networks deterministic latency comparable to industrial Ethernet for the first time. In home consumer scenarios, MLO makes realtime gaming, 8K video streaming, and VR/AR experiences a reality. In smart buildings and smart cities, MLO’s multilink capability provides the technical foundation for seamless roaming and largescale device access.

The significance of MLO lies not only in solving today’s core pain points of WiFi but also in laying the technical groundwork for future, even more demanding applications. As the 6 GHz band gradually opens in major global markets and terminal device support for MLO becomes widespread, MLObased multilink concurrent networks will become the fundamental connectivity architecture for the Internet of Everything era.

Conclusion

From singlelink “best effort” to multilink “deterministic assurance”, MLO is redefining the capability boundaries of wireless networks. In link management, multilink discovery and association, dynamic quality monitoring, and intelligent scheduling together form the complete MLO technical ecosystem. In handover latency, the leap from hundreds of milliseconds to milliseconds or even microseconds is not just a numerical improvement – it represents a fundamental shift from “connectivity available” to “experience imperceptible”.

The Wireless Broadband Alliance (WBA) Phase 2 field trials provide the strongest realworld validation: under interference, MLO increases uplink throughput by 116% while reducing uplink realtime traffic latency by 66%. This data proves that MLO is not just a theoretical advantage in the lab, but delivers quantifiable, significant performance value in complex, dynamic realworld deployments.

As WiFi 7 device shipments grow rapidly and the IEEE 802.11be standard moves forward, MLO technology will gradually become fully mature. The future is already here – MLO is writing a new chapter for wireless networks.
